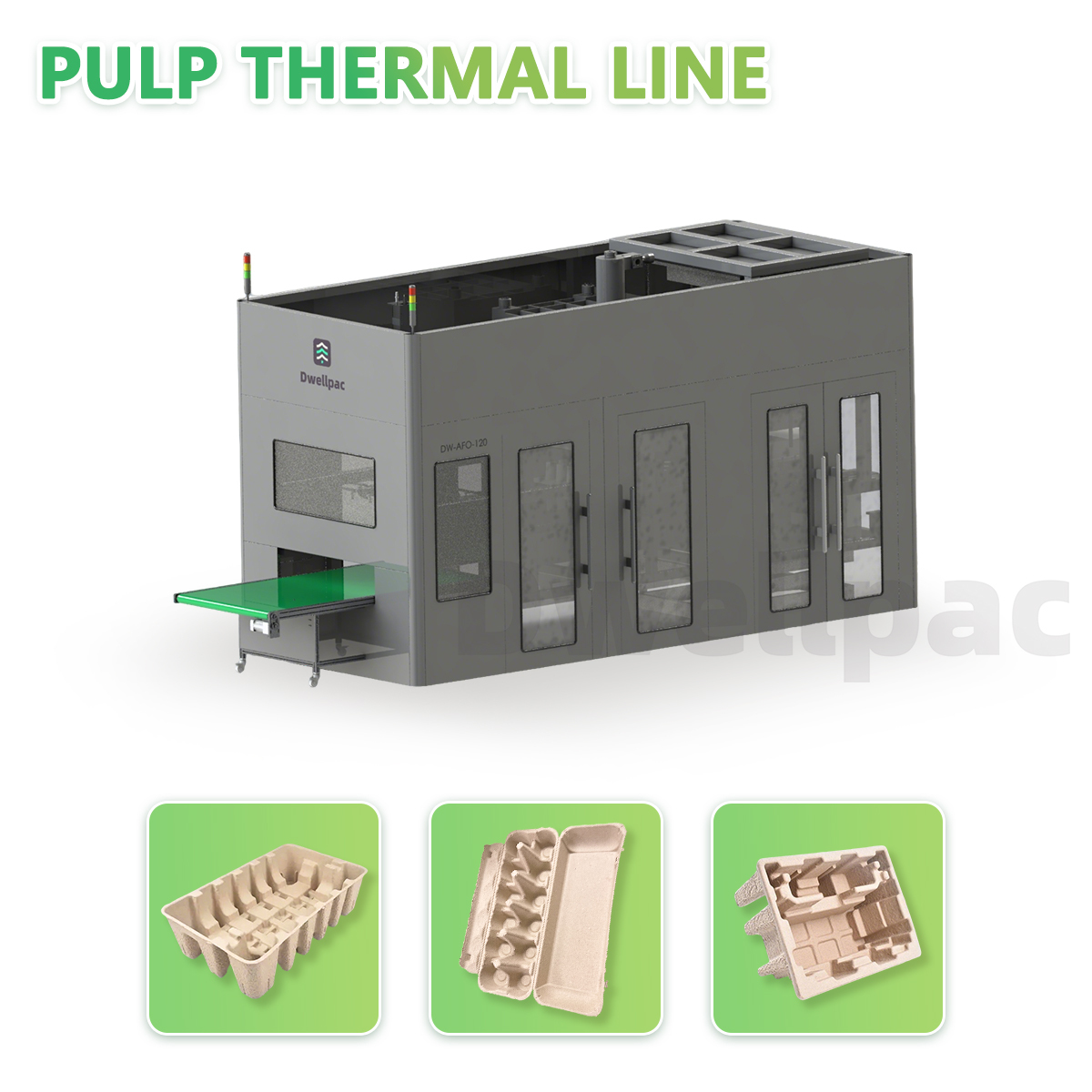

The Dwellpac Pulp Thermal Line (DWTH-Machine, Model DW-AFO-12098-F3H2) is a fully automated molded pulp solution that combines forming, hot pressing and trimming in one seamless process. Built for molded pulp manufacturers and eco-friendly packaging suppliers, it pairs servo-motor-driven forming with a hydraulic prepress and a 500 kN hotpress unit for consistent molding pressure and shape fidelity. With aluminum-mold compatibility, product depths up to 150 mm, variable cycle times of 40–180 seconds and typical outputs of 13,000–14,000 pieces per day, it is ideal for reliable, repeatable production of molded fiber products such as egg cartons, trays and protective inserts.
The Pulp Thermal Line handles the full forming workflow as a single automated sequence:
This versatile thermal line supports environmentally conscious packaging production across multiple sectors:
| Model No. | DW-AFO-12098-F3H2 (options available) |
|---|---|
| Typical Output | 13k–14k pcs/day of 10/12 egg carton |
| Dimensions | 6730 × 2390 × 3460 mm |
| Platen Size | 1200 × 980 mm |
| Forming Drive | Servo motor and hydraulic prepress |
| Hotpress Pressure | 500 kN (hydraulic) |
| Product Range | Max. 150 mm depth |
| Cycle Time | 40–180 sec. (variable) |
| Required Air | 0.4–0.6 MPa |
| Voltage | 380V 50Hz (can be customized) |
The machine is designed for molded pulp materials compatible with aluminum molds. We focus on eco-friendly pulp formulations to produce durable packaging components, ensuring sustainability without compromising production quality or precision.
Yes. We provide tailored custom mold design and manufacturing services and work closely with you through the entire process — from prototyping to small-batch production — to validate your packaging concepts.
We offer comprehensive technical support throughout installation and commissioning, guiding you on machine integration, operation and safety mechanisms to optimize use with minimal downtime and reliable, repeatable output.
Typical output is 13,000–14,000 pieces per day for 10/12 egg cartons, with variable cycle times of 40–180 seconds depending on product depth (up to 150 mm) and mold configuration.
We actively manage project planning, manufacturing and logistics to optimize cost and delivery schedules. Our maintenance guidance and customer care keep your equipment running efficiently, supporting both short-run and full-scale production. Contact Dwellpac for a tailored plan.
Elevate your production line with the Dwellpac Pulp Thermal Line. Contact Dwellpac today for a quote and discover how integrated forming, hot pressing and trimming can streamline your molded pulp output.
