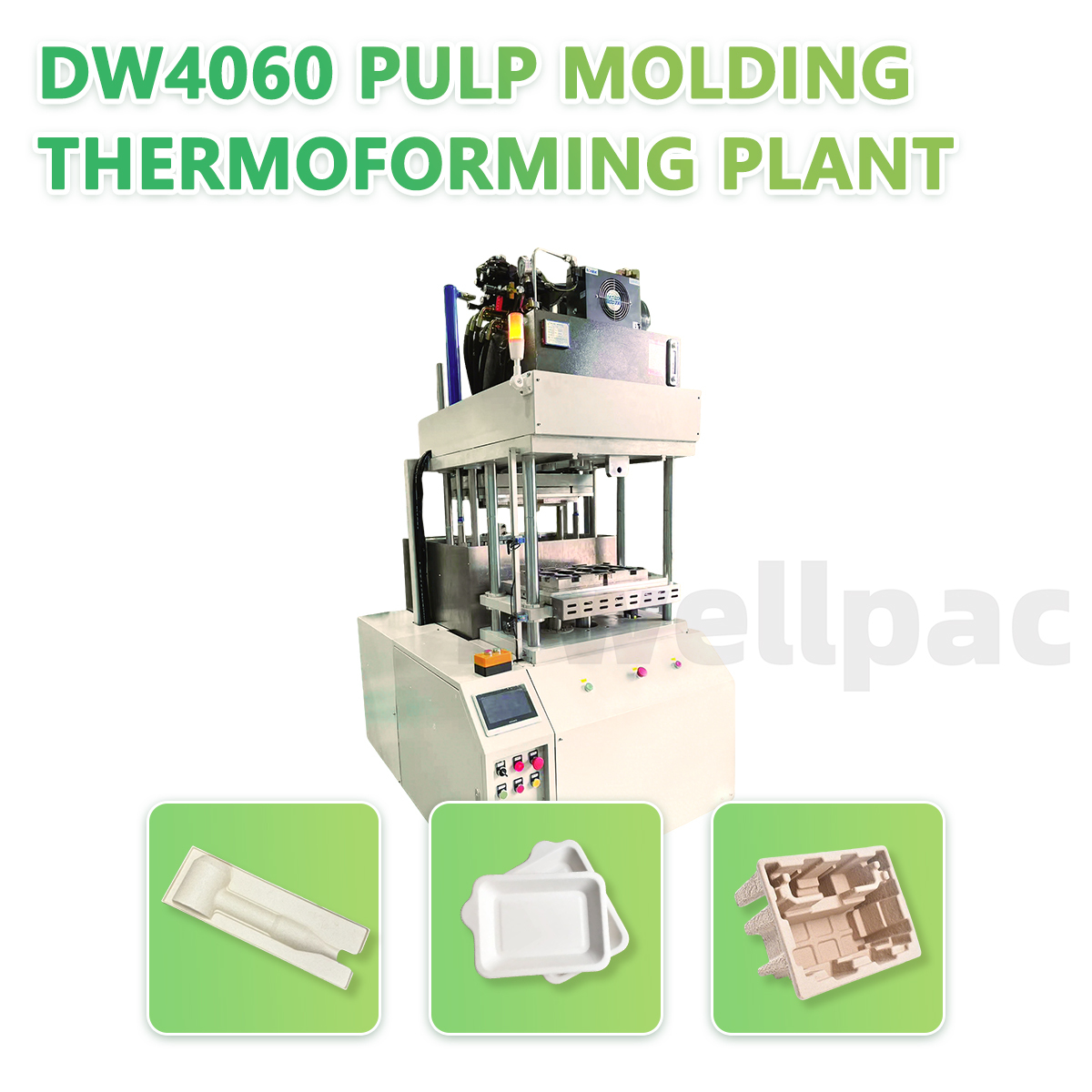

DW4060 PULP MOLDING THERMOFORMING PLANT

Thermoforming with a Three-Platen Mold. Capable of dry-press molding, where products are shaped and then air-dried for final form. Also capable of wet-press / hot-press molding. These two forming modes are suitable for small-batch production and product sampling, applicable for items like food service ware, industrial packaging, and similar products.
  • DW4060 PULP MOLDING THERMOFORMING PLANT,DWELLPAC,DW4060 PULP MOLDING THERMOFORMING PLANT

Designed for Your Needs

DW4060 Dual-Mode Pulp Molding & Thermoforming Plant for Sampling and Small-Batch Production

The Dwellpac DW4060 pulp molding thermoforming plant is a compact, dual-mode molded-fiber machine engineered for product prototyping, mold testing and small-batch production. One machine delivers two solutions: operators can switch freely between dry press and wet press molding, making it an affordable entry point into pulp molding without committing to a full production line. With 14 tons of hydraulic hot-press force on a 400 × 600 mm platen and the ability to handle products up to 80 mm tall, the DW4060 packs serious capability into a space-saving footprint — ideal for startups, R&D labs and manufacturers developing food packaging, industrial packaging and custom molded-fiber products.

Why Choose the Dwellpac DW4060 Pulp Molding Plant?

  • Dual-Mode Versatility: One machine, two solutions — switch freely between dry press and wet press molding, ideal for both product prototyping and small-batch production.
  • Compact but Powerful: 14-ton hydraulic hot-press force on a 400 × 600 mm platen, handling products up to 80 mm in height — big capability in a space-saving footprint.
  • Fast Cycle Time: Dry-press cycle as quick as 20–35 seconds per mold; wet-press output of 50–100 kg per 24 hours — get your samples and orders done faster.
  • Perfect for Startups & R&D: Specifically designed for low-volume runs, product sampling and mold testing — a cost-effective entry point into pulp molding.
  • Wide Product Range: Suitable for food packaging, industrial packaging and custom molded-fiber products — from tableware to protective inserts.
  • Stable & Energy-Efficient: 23 kW total power with precision upper and lower heating (9 kW each), plus a reliable hydraulic booster system for consistent quality every cycle.

Applications

The DW4060 is a flexible platform for developing and producing a wide range of molded-fiber items:

  • Food packaging — molded pulp tableware, trays and containers
  • Industrial packaging — protective inserts and cushioning
  • Custom molded-fiber products — prototypes, samples and small-batch orders

Technical Parameters

Item Specification
Model DW4060
Operating Modes Dry press / Wet press (switchable)
Hot-Press Force 14 tons (hydraulic)
Platen Size 400 × 600 mm
Max Product Height 80 mm
Total Power 23 kW
Heating Power Upper 9 kW + Lower 9 kW
Dry-Press Cycle 20–35 seconds per mold
Wet-Press Output 50–100 kg per 24 hours

Specifications may vary with product type and mold configuration. Contact Dwellpac for a tailored recommendation.

Frequently Asked Questions

What is the DW4060 pulp molding thermoforming plant used for?

It is a compact dual-mode machine designed for product prototyping, mold testing and small-batch production of molded-fiber items such as food packaging, industrial packaging and custom protective inserts. It is an affordable way to enter pulp molding without investing in a full production line.

What is the difference between dry press and wet press mode?

The DW4060 lets you switch freely between both modes on a single machine. Dry press achieves cycle times as fast as 20–35 seconds per mold, while wet press delivers an output of 50–100 kg per 24 hours — giving you flexibility for both sampling and short production runs.

What is the maximum product size the DW4060 can produce?

The machine has a 400 × 600 mm platen and can form products up to 80 mm in height, supported by 14 tons of hydraulic hot-press force.

How much power does the DW4060 consume?

Total power is 23 kW, including precision upper and lower heating zones rated at 9 kW each, plus a hydraulic booster system for consistent forming quality.

Is the DW4060 suitable for startups and R&D teams?

Yes. It is specifically engineered for low-volume runs, product sampling and mold testing, making it a cost-effective entry point for startups, R&D labs and manufacturers exploring molded-fiber packaging. Contact Dwellpac for pricing and customization options.

Explore More Resources

Start your pulp molding journey with the Dwellpac DW4060 dual-mode plant. Contact Dwellpac today for specifications, customization options and pricing tailored to your sampling and small-batch production needs.
