Packaging teams planning a fiber-based line usually begin with molded pulp manufacturers before they compare pulp molding machine manufacturers. The L800 Series single lane carton erecting machine then takes on the box-forming stage, running up to 200 cartons per minute with CE-certified stability on paperboard and corrugated board.
The L800-A and L800-C share the same single lane carton erecting platform. The L800-A uses servo system control for precise, flexible production, while the L800-C keeps a robust mechanical drive for economical, practical operation.

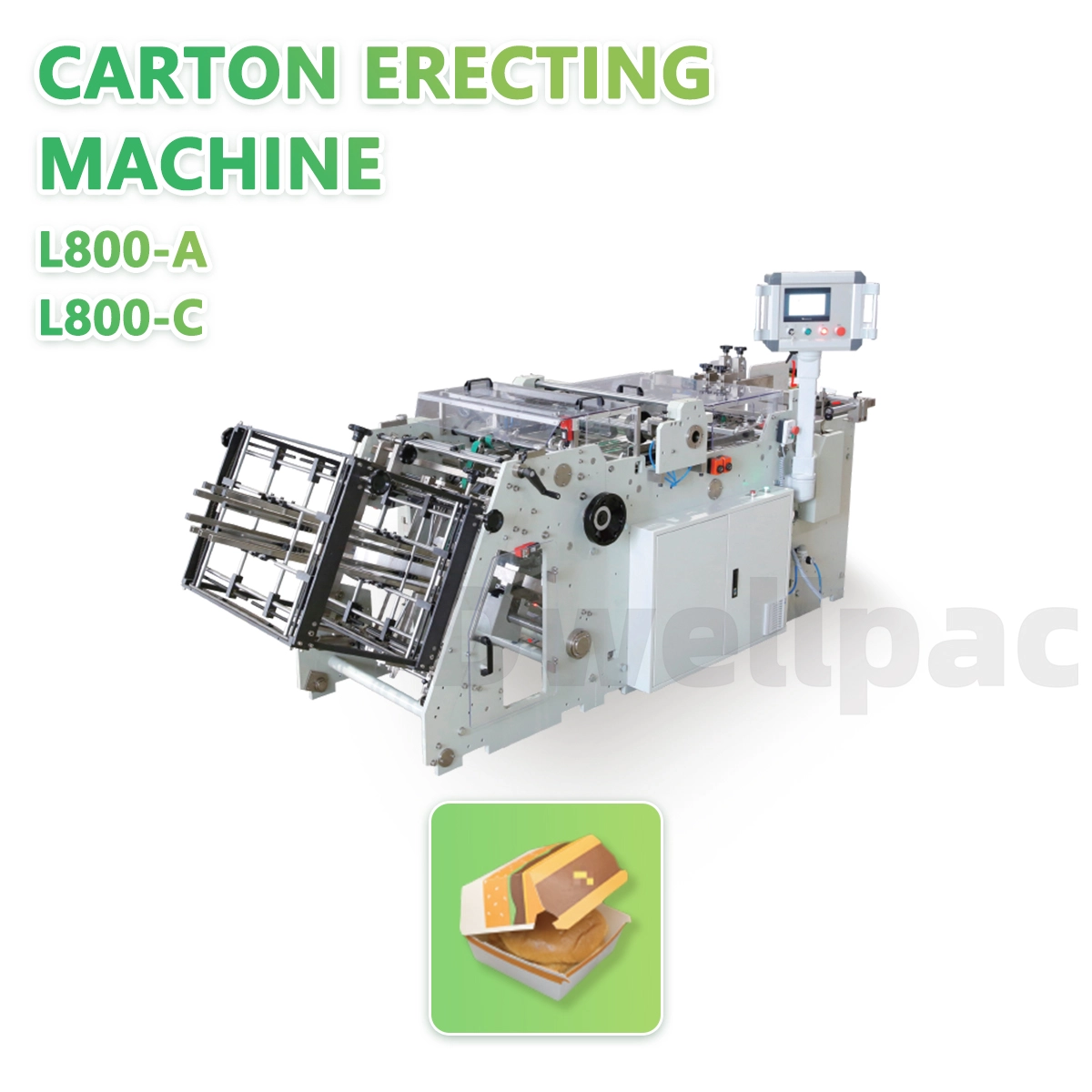

L800 Series single lane carton erecting machine
Single lane blank range: length 100~450 mm, width 100~680 mm, side flaps 15~230 mm, and slide flaps with lid 50~230 mm. The machine ships as two cases — 3010 × 1460 × 1630 mm (net 1500 kg) and 1260 × 780 × 910 mm (net 250 kg).
| Item | L800-A | L800-C |
|---|---|---|
| Drive System | Servo system control | Mechanical system control |
| Total Power | 8 kW | 5 kW |
| Voltage | 380V/50Hz | — |
| Air Pressure | Dry and clean air 0.6MPa | — |
| Materials | Paper board 150~400gsm; corrugated board paper with thickness ≤ 1.5mm | — |
| Covering Area | 6000 × 2800 mm | — |
| Max Speed | 200 pcs/min | — |
Keep adjacent product options together for a faster catalog comparison.

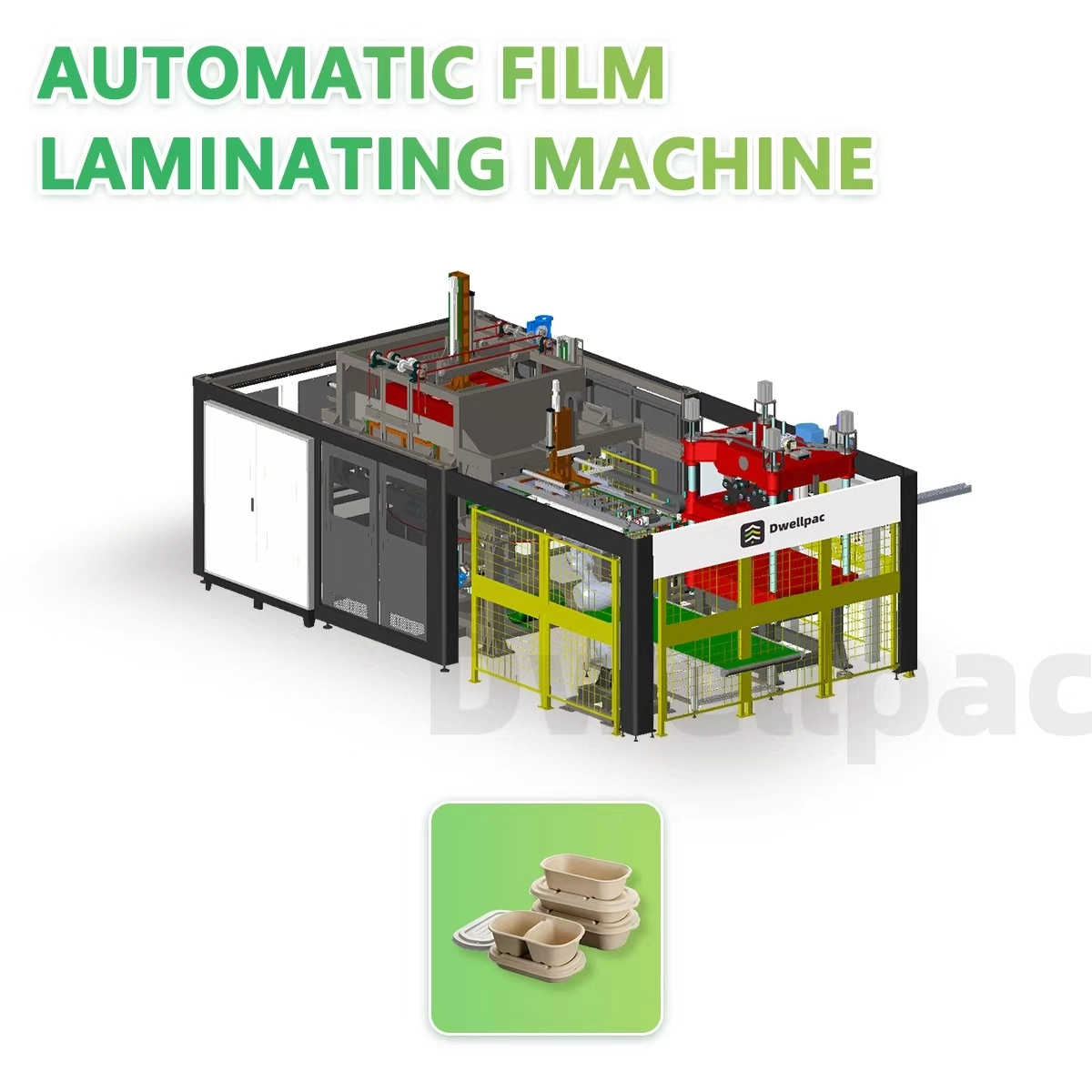

The LZFM-ZDQB-110100 is a fully automatic PLA/PBAT film laminating machine designed for biodegradable pulp tableware production. It offers high efficiency, stable operation, and up to 98% qualified…
View product

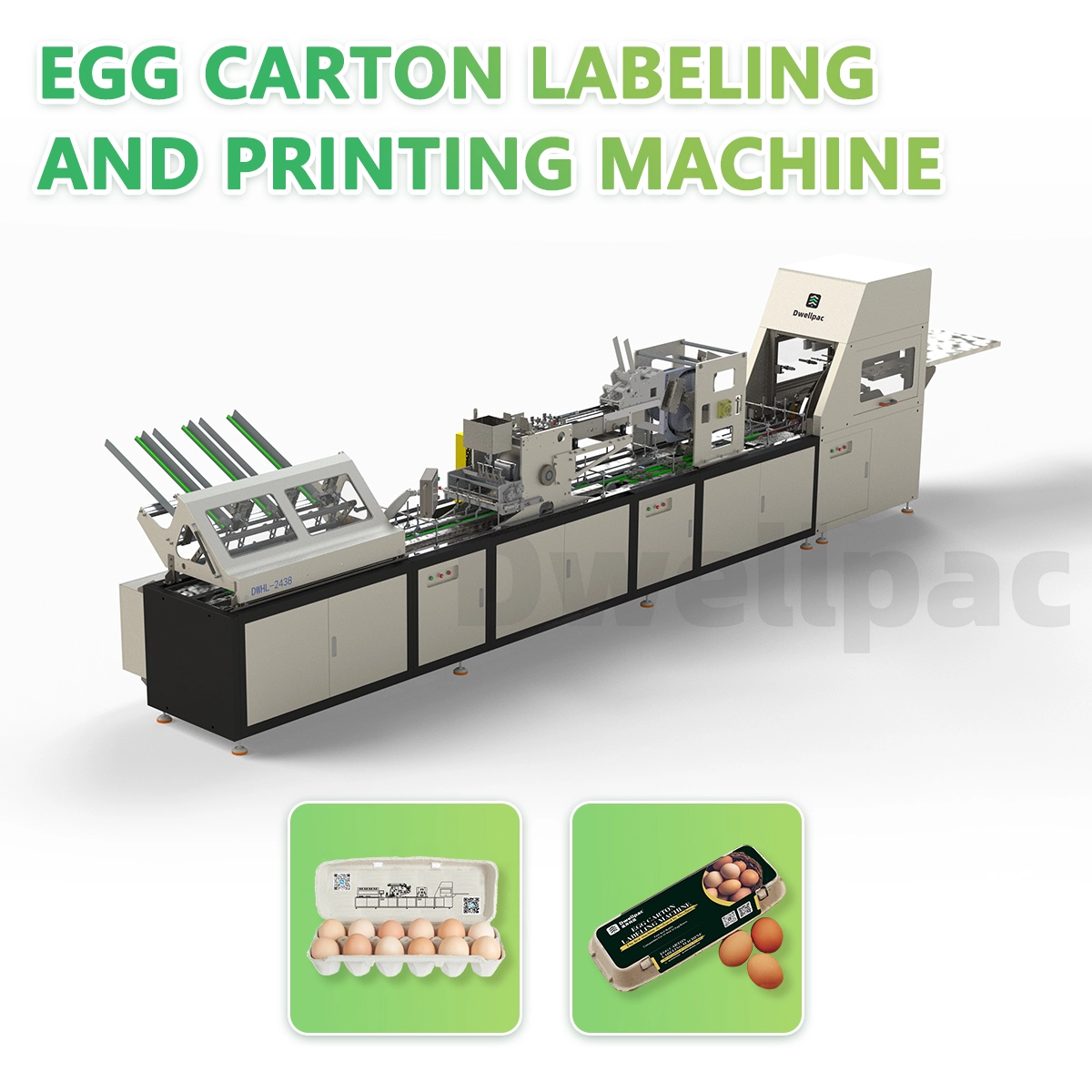

Wet-glue egg carton printing and labeling machine for pulp molded egg cartons and trays. Supports feeding, printing, labeling and stacking. Ask DWELLPAC for a quote.
View product

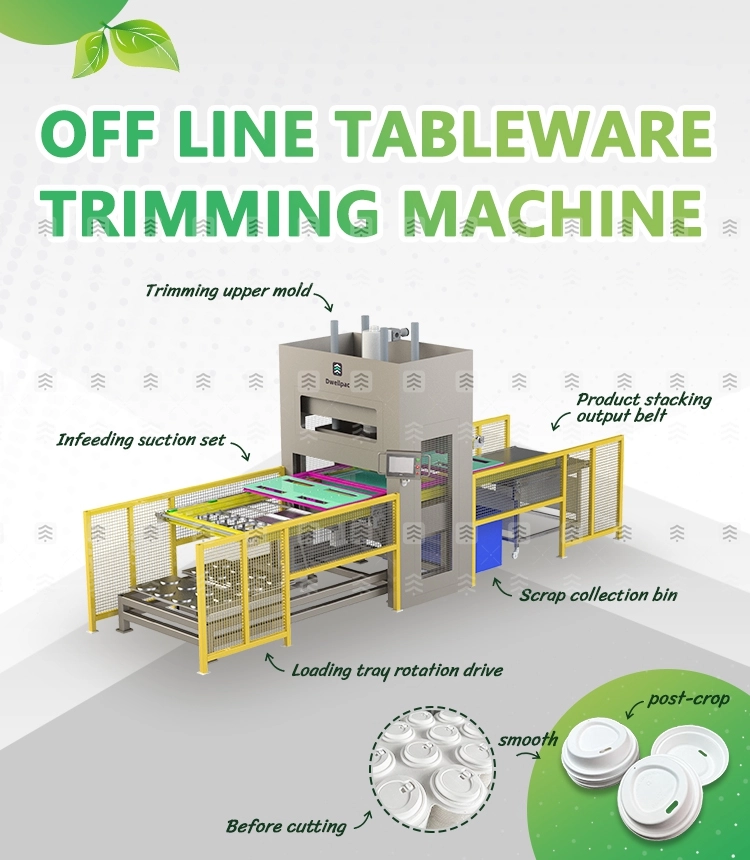

Direct factory wholesale for custom molded pulp packaging lines. Optimize your eco friendly food packaging production with high-precision hydraulic trimming.
View productreview the product details, images, and specifications presented on the official product page.
