The LZFM-ZDQB-110100 is engineered for biodegradable pulp tableware factories to provide professional, high-precision PLA/PBAT film lamination—improving water and oil resistance while delivering consistent, production-grade results.

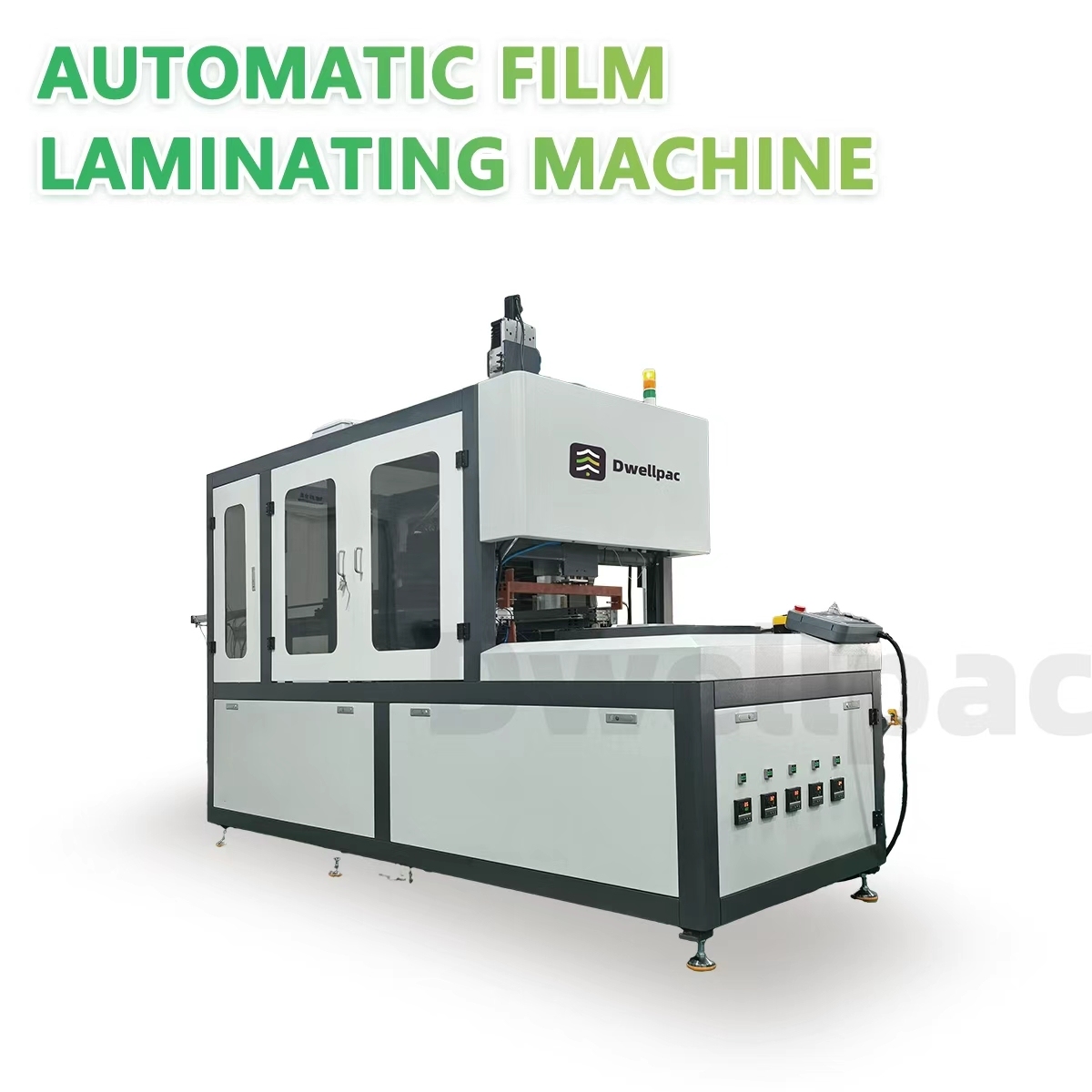

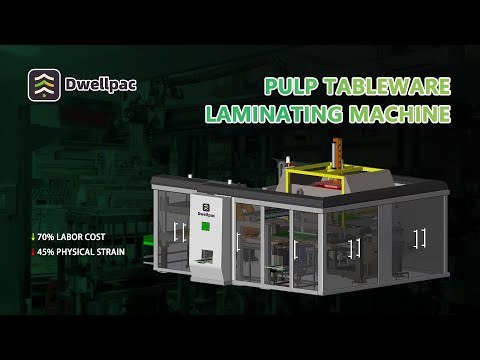

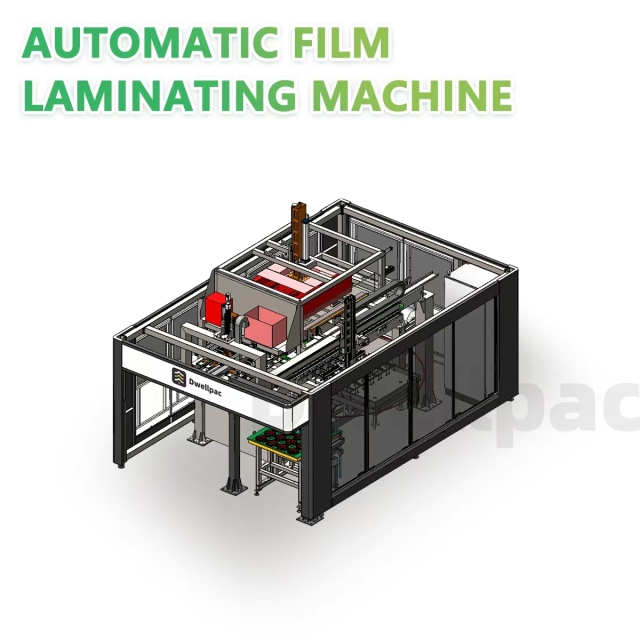

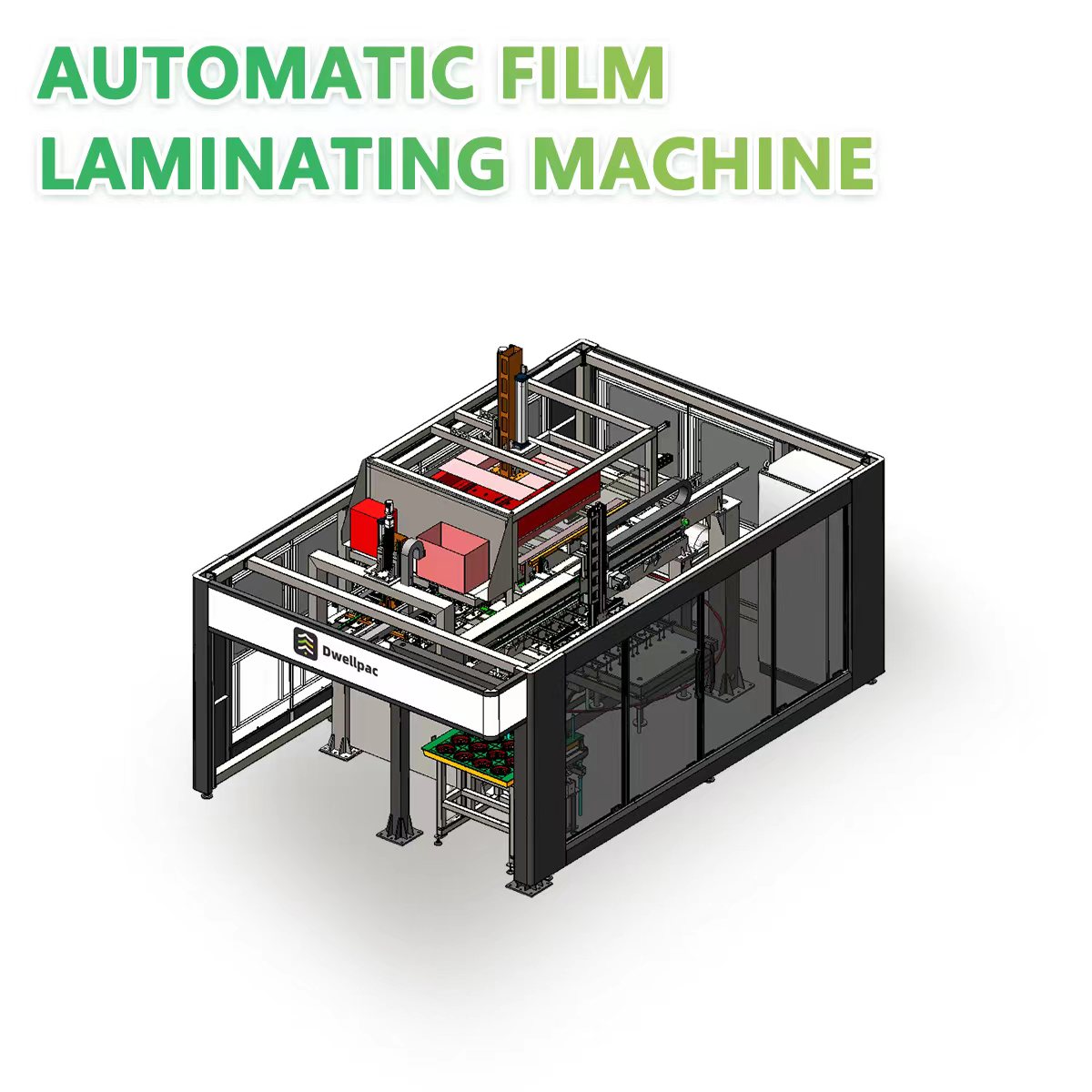

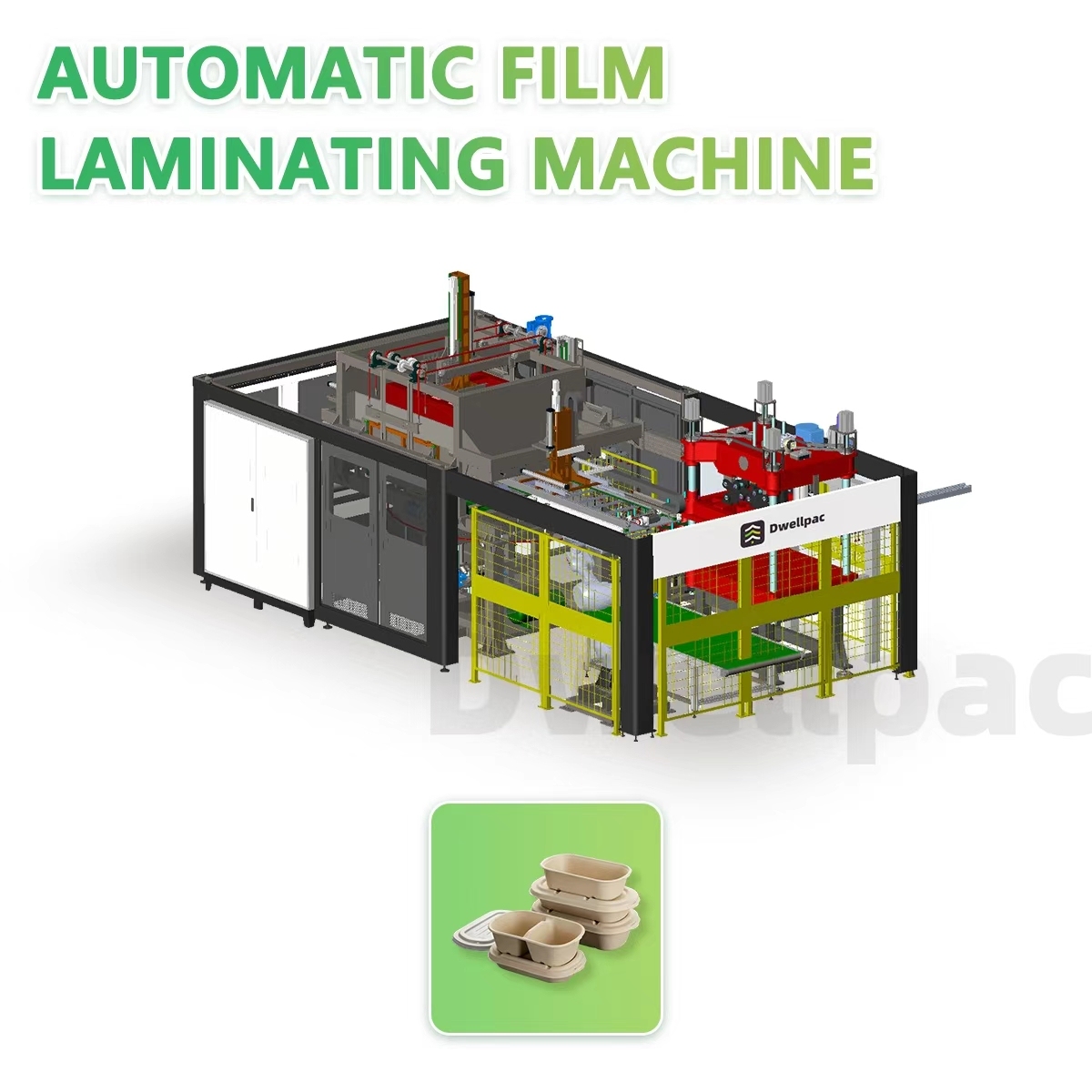

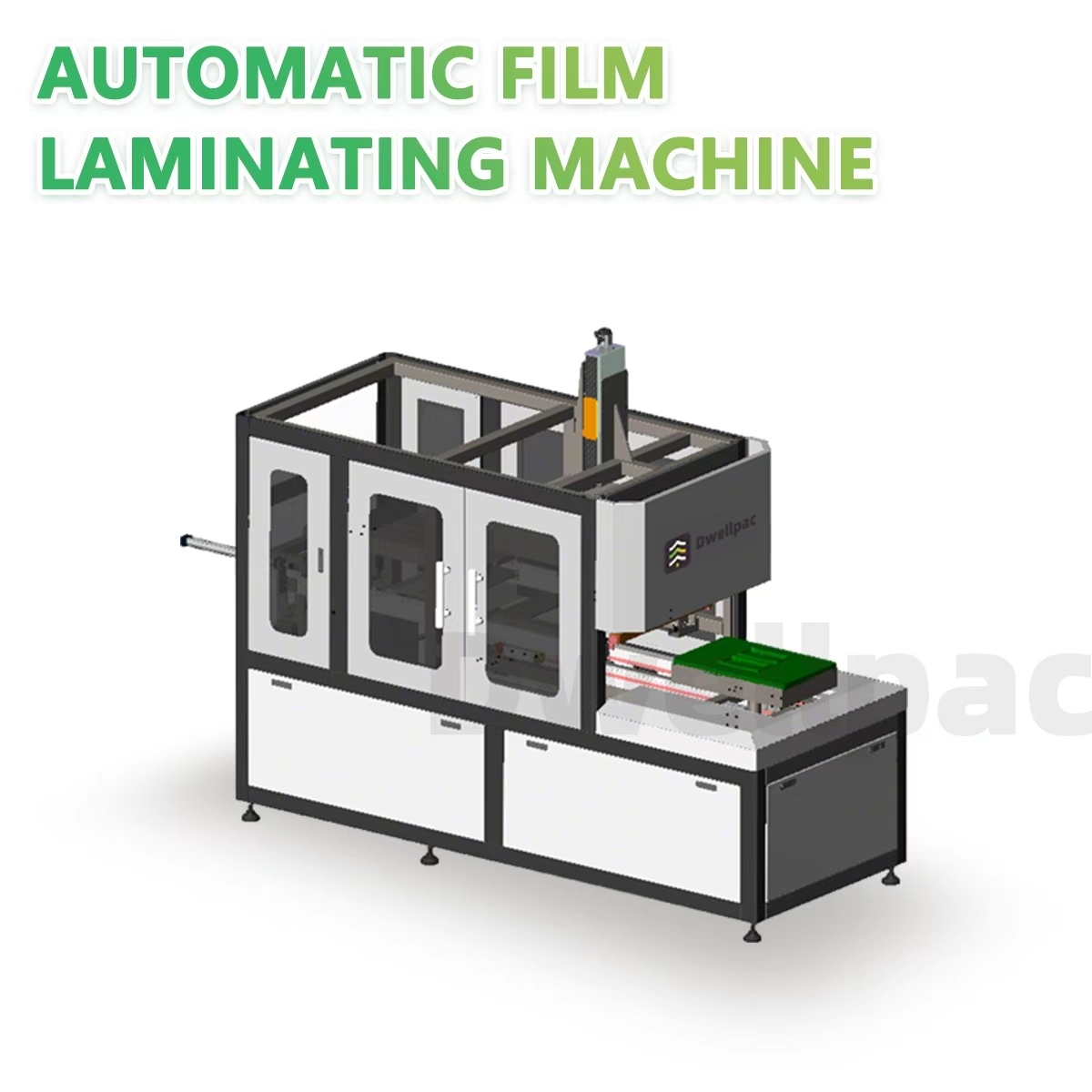

The LZFM-ZDQB-110100 automatic film laminating machine is designed to meet the demands of modern biodegradable pulp tableware production. It applies fully biodegradable PLA or PBAT films to molded pulp products (plates, trays, bowls, clamshells, etc.) to enhance surface performance and appearance. The system is driven primarily by servo motors for precise speed control and stable operation.
| Item | Specification |
|---|---|
| Model | LZFM-ZDQB-110100 |
| Mold Size | 1100 mm × 1000 mm |
| Main Motor Power | 35 kW |
| Heating Power | 35 kW |
| Production Capacity | 1200 molds per shift |
| Working Air Pressure | 0.4–0.6 MPa |
| Vacuum Requirement | -0.05 to -0.1 MPa |
| Vacuum Consumption | 1.5 m³/min |
| Air Consumption | 1.1 m³/min |
| Power Supply | 380V / 50Hz, 3-phase, 4-wire |
| Operator Required | 1 person |
| Machine Dimensions (L×W×H) | 7819 × 5350 × 3728 mm |
| Trimming Press Force | 80 T |
| Robot | 6-axis, 35 kg payload, 1800 mm working radius |
| Approx. Weight | ≈ 9.5 T |
More Model Options
In addition to the LZFM-ZDQB-110100 introduced on this page, we also offer other models to meet your different production needs, including LZFM-DY-6040 and LZFM-ZD-110100. Each model has its own focus in terms of mold size, automation level, and functionality. Please contact our team for detailed product comparison information and find the solution that best fits your factory’s needs.
Control & drive: Inovance servo motors and PLC ensure reliable motion control and repeatable processing.
Pneumatic & air treatment: Airtac solenoid valves, cylinders and air treatment units provide stable pneumatic performance.
Ideal for manufacturers producing biodegradable disposable tableware such as plates, trays, bowls, clamshell containers and other molded pulp products that require PLA/PBAT surface lamination for improved performance and consumer appeal.
