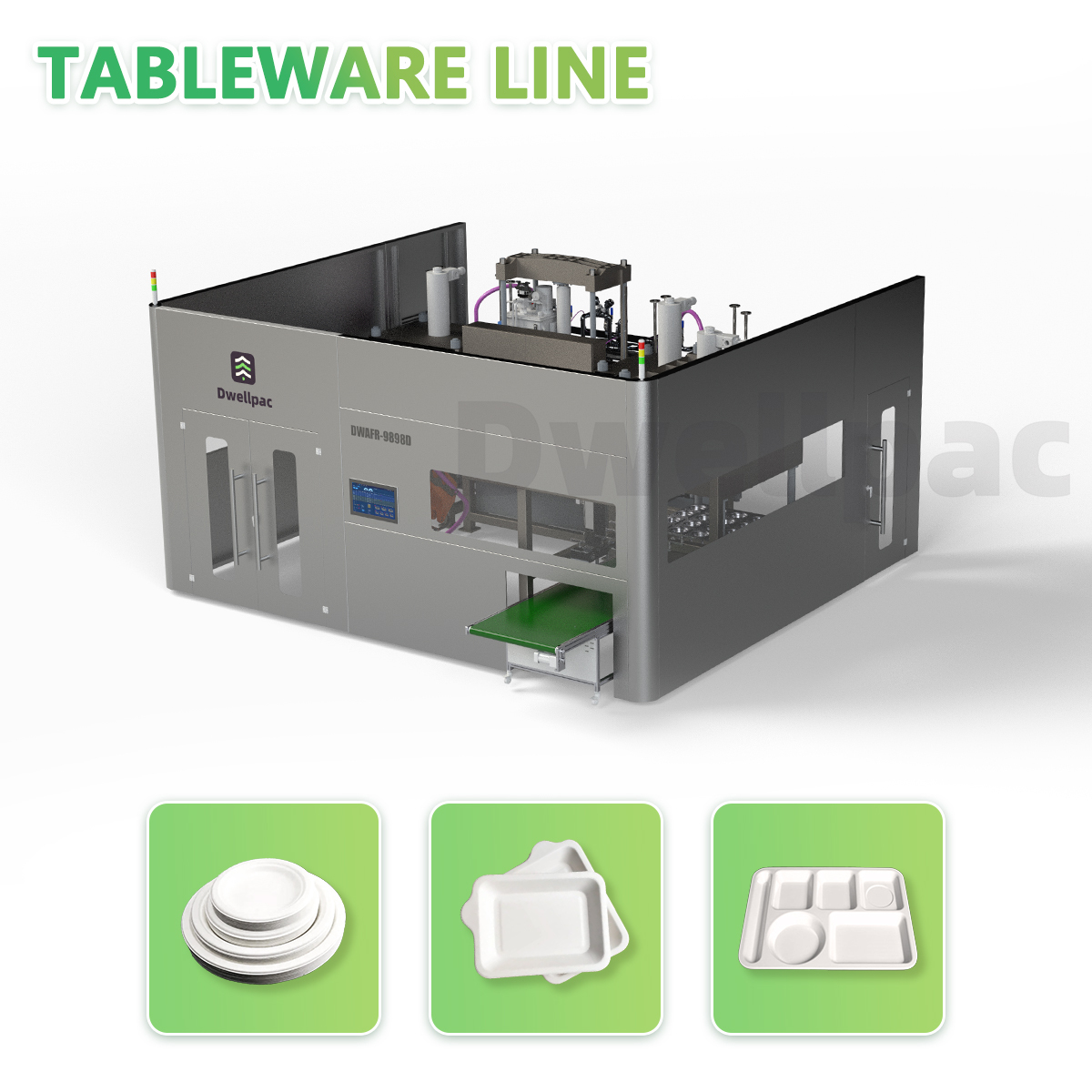

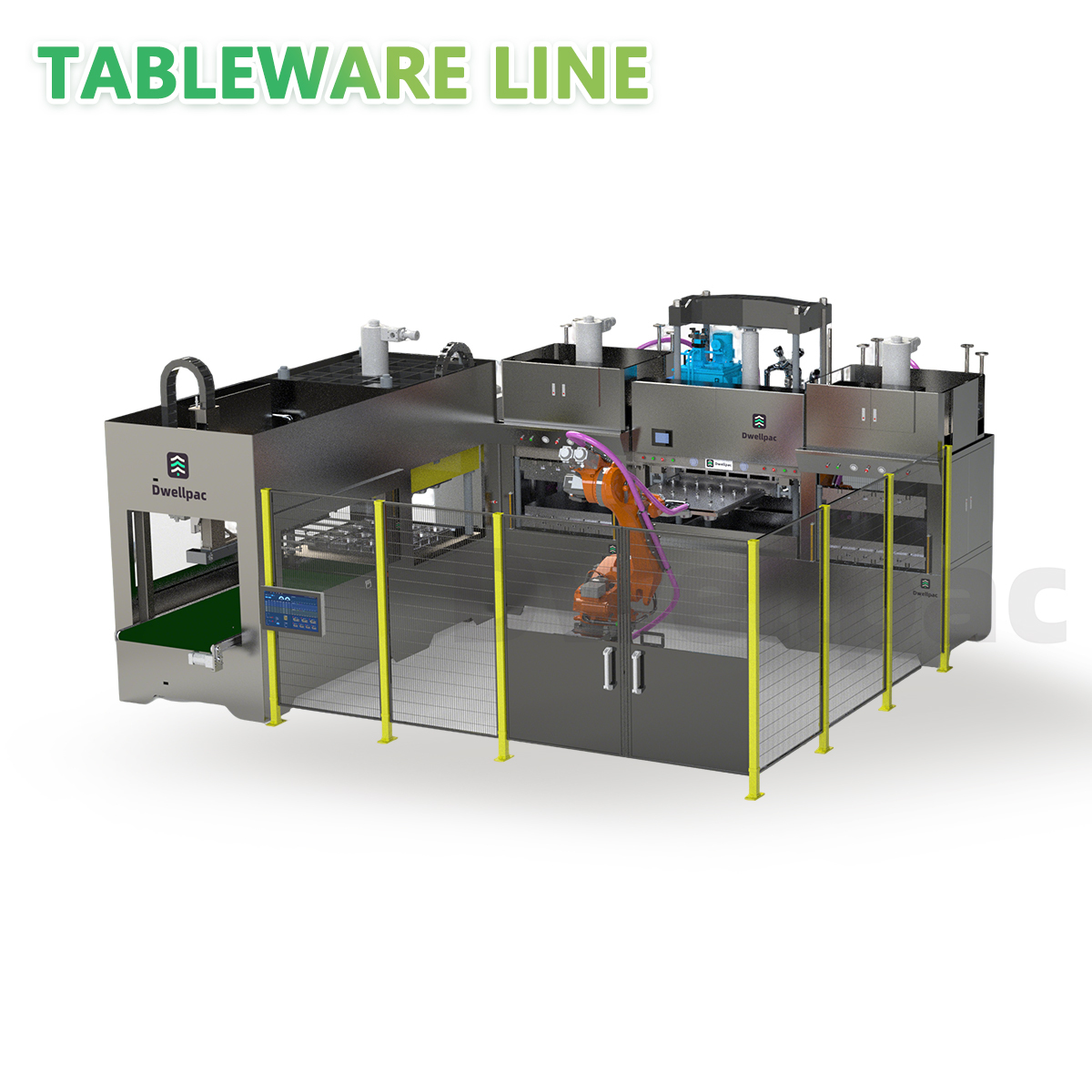

The Dwellpac Pulp Tableware Line (Model DW-AFR-9898-F2H2T2) is an integrated molded pulp system that combines forming, hot-pressing and trimming for high-quality disposable tableware production. Built with durable aluminum molds and hydraulic forming drives, it delivers precise, repeatable shaping of plates, bowls and trays. Supporting 980 × 980 mm platens, product depths up to 80 mm and cycle times of 18–40 seconds, it pairs with multi-axis robots such as the KUKA KR-210-R2700 to reach throughput of roughly 4–4.5 tons per day across six sets — an ideal solution for molded pulp manufacturers scaling biodegradable, eco-friendly packaging.
The Pulp Tableware Line moves molded fiber products through a continuous, automated workflow:
This pulp tableware machine serves manufacturers supplying eco-friendly disposable foodservice products:
| Model No. | DW-AFR-9898-F2H2T2 |
|---|---|
| Typical Output | 4–4.5 TPD by 6 sets |
| Dimensions | 6100 × 6150 × 3360 mm |
| Platen Size | 980 × 980 mm |
| Forming Drive | Hydraulic with prepress (F1 optional) |
| Hotpress Pressure | 400 kN (pneumatic or hydraulic) |
| Trimming Pressure | 600 kN |
| Matching Robot | KUKA KR-210-R2700 (or other equivalent) |
| Product Range | Max. 80 mm depth |
| Cycle Time | 18–40 sec. (variable) |
| Required Air | 0.4–0.6 MPa |
| Voltage | 380V 50Hz (can be customized) |
An alternative DW-AFR-12098-F2H2T2 model is available with more customization options for larger or smaller setups and higher or lower configurations.
It produces a variety of molded pulp tableware items such as plates, bowls, trays and other disposable foodservice containers. High-precision aluminum molds ensure consistent quality and form retention across all products.
Yes. We offer flexible customization for both mold configuration and machine parameters — mold shapes, machine size, electrical specifications and production speeds — so the line fits your workspace and capacity requirements precisely.
We provide full project support including consultation, installation guidance and operator training. Our technical team assists through the entire setup to optimize performance and ensure seamless integration into your production line.
With six sets and a matching robot such as the KUKA KR-210-R2700, the line reaches typical output of roughly 4–4.5 tons per day, with cycle times of 18–40 seconds and product depths up to 80 mm.
We coordinate efficient, reliable global delivery so your equipment arrives safely and on schedule, and we plan logistics to minimize downtime during installation and start-up. Contact Dwellpac to plan your project.
Maximize output with the Dwellpac Pulp Tableware Line. Contact Dwellpac today for a quote and a tailored automation plan for biodegradable plates, bowls and trays.
