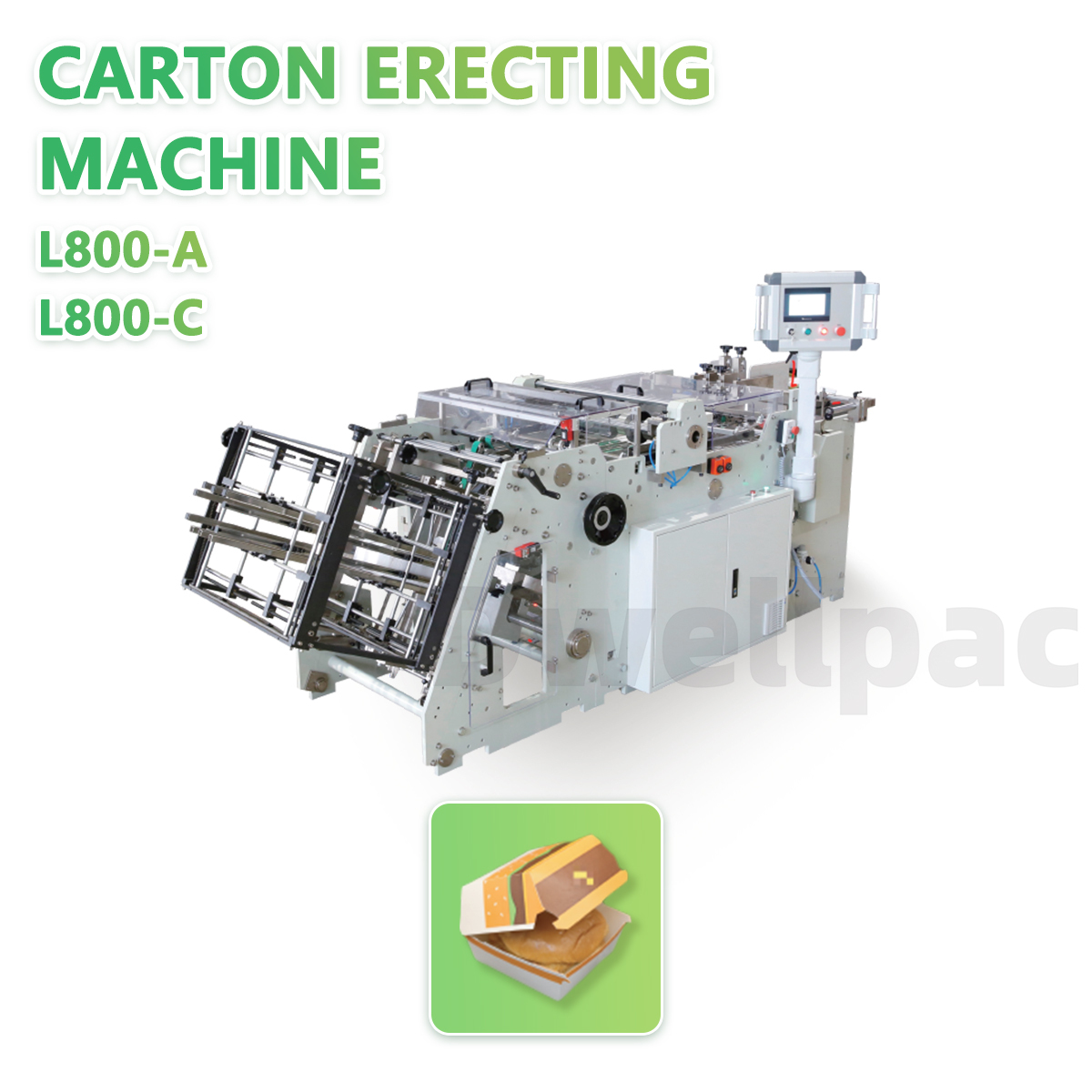

The L800 Series represents a leading line of high-speed, CE-certified single lane carton erecting machines, designed for stable and efficient box forming. With a maximum speed of 200 cartons per minute, it reliably processes paperboard (150-400gsm) and corrugated board, automating the setup of various box styles to save labor and space. The L800-A model features a servo system for precise, flexible production, while the L800-C offers a robust mechanical drive for economical operations, providing a clean and cost-effective solution for automated packaging lines.
Single Lane Dayuan Carton Erecting Machine is designed and manufactured according to high standards, stable, efficient, clean, sanitary, cost saving and environmentally friendly. lt is the leading model in China and has achieved CE certification. The servo motor can be placed vertically to save space.
Differences Between L800-A and L800-C
Type
L800-A
L800-C
Control System
Servo system
Mechanical system
Other
L800-Ais more convenient to change from different boxes and works more accurately.
Economical and practical;
L800-Ais better at producing boxes of 8 corners.
Carton Erecting Machine Single Lane
Blank Length
Blank Width
Side Flaps
Slide Flaps + Lid
Conicity
L
B
H
H1
H2
5~40°
100~450mm
100~680mm
15~230mm
50~230mm
260mm
Specification
Type
L800-A
L800-C
Voltage
380V/50Hz
Total Power
8kW
5kW
Air Pressure
Dry and clean air 0.6MPa
Materials
Paper board 150 ~ 400gsm; Corrugated board paper with thickness ≤ 1.5mm.
Covering Area
6000x2800mm
Max Speed
200pcs/min
Packaging Information
Case 1
3010x1460x1630mm
Net Wt.
1500kg
Gross Wt.
1600kg
Case 2
1260x780x910mm
Net Wt.
250kg
Gross Wt.
290kg
