DW-ZD86 series fully automatic pulp molding machines are built for molded fiber products that require stable forming, mold matching and configurable flipping/forming routes.
Use this series for boutique molded pulp packaging, tableware and complex molded fiber products where product structure, mold design, demolding and machine compatibility must be reviewed together.

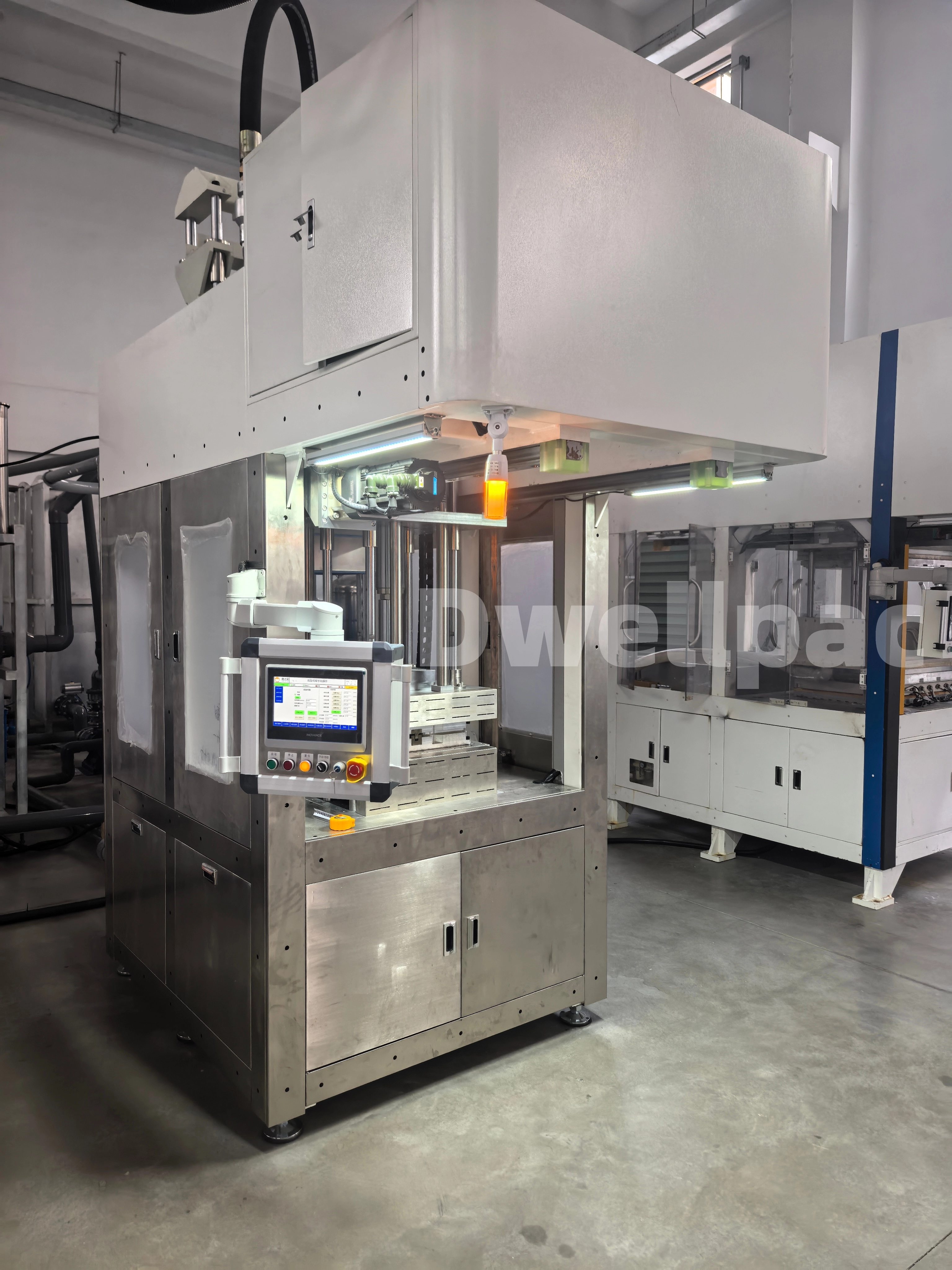

DW-ZD86 Series | Fully Automatic Pulp Molding Machine
A fully automatic pulp molding machine should not be selected only by model name or headline capacity. For molded fiber inserts, tableware and boutique packaging, the real question is whether the machine, mold platform, product geometry, demolding route and utility conditions can work together in stable production.
Product and machine matching should be reviewed together before final configuration.
For complex molded fiber products, the DW-ZD86 series should be selected around the product structure, mold layout and process route. Small R-corners, lower draft angles, boutique packaging shapes and tableware products all place different demands on forming stability, mold heating, transfer, demolding and final product consistency.
For molded fiber products, product shape and mold route should guide the machine choice.
For packaging that needs a refined molded shape, controlled surface, accurate positioning and a more premium appearance than ordinary protective trays.
For products with small arc bridges, small R-corners, lower draft angles or structural details that need careful mold and machine review.
For molded pulp products where forming, pressing, heating and demolding affect final shape, surface and qualified output.
| Model | Configuration Direction | When to Review This Option |
|---|---|---|
| DW-ZD86A | Three-mold flipping machine with 20T electric pressing and 32 kW heating reference. | When the project needs a compact automatic route with lower mold investment and stable forming/pressing review. |
| DW-ZD86B | Four-mould flipping machine compatible with DW-ZD86A molds, with cold pressing function for complex products. | When mold compatibility and complex-product forming need to be considered together. |
| DW-ZD86C | Four-mould flipping casting machine compatible with DW-ZD86B. | When the product involves small arc bridges or more complex molded structures. |
| DW-ZD86X | Four-mould pulp forming machine. Mold size can be reviewed up to 850 x 650 mm according to source data. | When a forming-machine direction is preferred and the buyer needs project-specific customization. |
| DW-ZD86Y | Forming upper mold, hotpress upper mold and hotpress lower mold can all be heated. | When heating arrangement is important for the product, mold and final forming result. |
| Item | Reference Specification | Buyer Note |
|---|---|---|
| Series | DW-ZD86A / DW-ZD86B / DW-ZD86C / DW-ZD86X / DW-ZD86Y | Select by product shape, mold route and production requirement. |
| Platen size | 800 x 600 mm | Useful for mold compatibility and cavity layout review. |
| Reference machine size | 3000 x 1500 x 3600 mm | Final layout should be confirmed by selected model and site plan. |
| Maximum heating power | 32 kW | Use as a reference; actual load depends on configuration. |
| Maximum motor power | 8 kW | Confirm utilities before ordering. |
| Vacuum demand | 8-10 kW per machine | Vacuum system sizing affects forming stability. |
| Air compressor demand | 4-8 kW per machine | Compressed air requirement should be checked with factory utilities. |
| DW-ZD86X mold reference | Mold size up to 850 x 650 mm | Confirm mold plate, insulation and heater scope before quotation. |

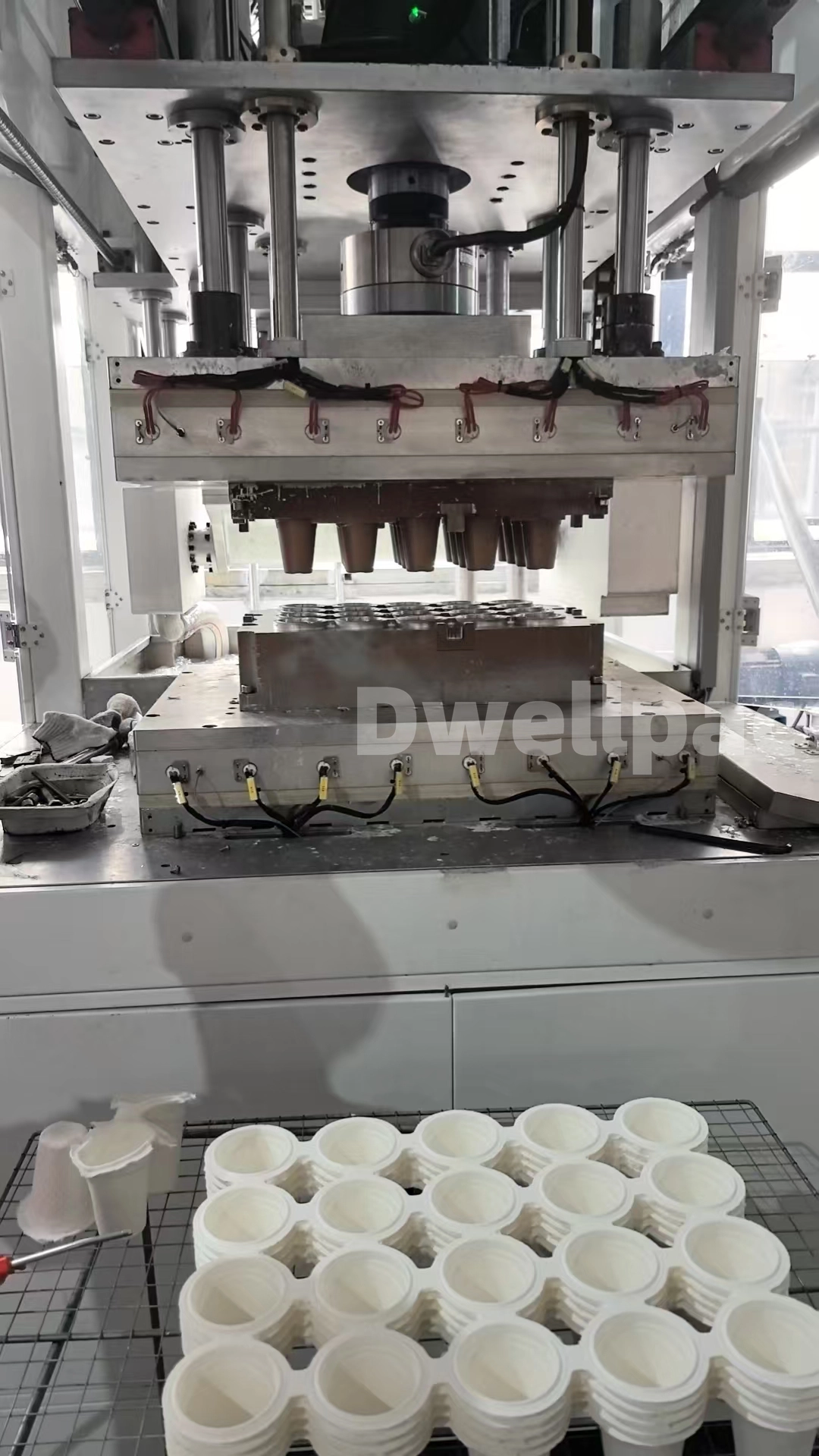

For molded pulp production, the mold is not an accessory chosen after the machine. It directly affects drainage, wall thickness, transfer, demolding, stacking and final product stability. DWELLPAC can review the product structure, mold layout and machine interface together before the buyer commits to a configuration.
If your project also needs front-end slurry preparation, review the DW-JX100 integrated pulping system. For broader line planning, browse pulp molding machines and custom pulp molds and tooling.
Send DWELLPAC your product drawing, sample photo, expected product weight, target output, mold size requirement, existing machine details and available factory utilities. We can review whether the DW-ZD86A, B, C, X or Y direction is more suitable for your molded fiber product.
The DW-ZD86 series is used for molded pulp and molded fiber production projects where forming route, mold platform, heating, demolding and product structure need to be matched. It is suitable for boutique packaging, tableware and complex molded fiber products after project review.
No. The integrated pulping system prepares slurry before forming. The DW-ZD86 series is the downstream machine stage that works with molds to form and process molded fiber products.
The source specification lists an 800 x 600 mm platen platform. This should be reviewed together with cavity layout, mold size, mounting holes and the buyer's product design.
The correct model depends on product geometry, mold route, whether flipping or forming is required, heating arrangement, cold pressing needs, target output and factory utilities. Send drawings and samples for configuration review.
Yes. DWELLPAC can review mold design, cavity layout, demolding, drainage, stacking and machine interface so the mold direction matches the selected DW-ZD86 configuration.
Prepare product drawings or samples, target weight, dimensions, surface requirements, expected output, machine model if already purchased, mold interface information, factory power, vacuum, compressed air and available installation space.
