When egg tray output increases, final packing often becomes the slow part of the line. Manual compression and wrapping can create unstable stacks, inconsistent pack tightness, higher handling work, and unnecessary storage or shipping volume.

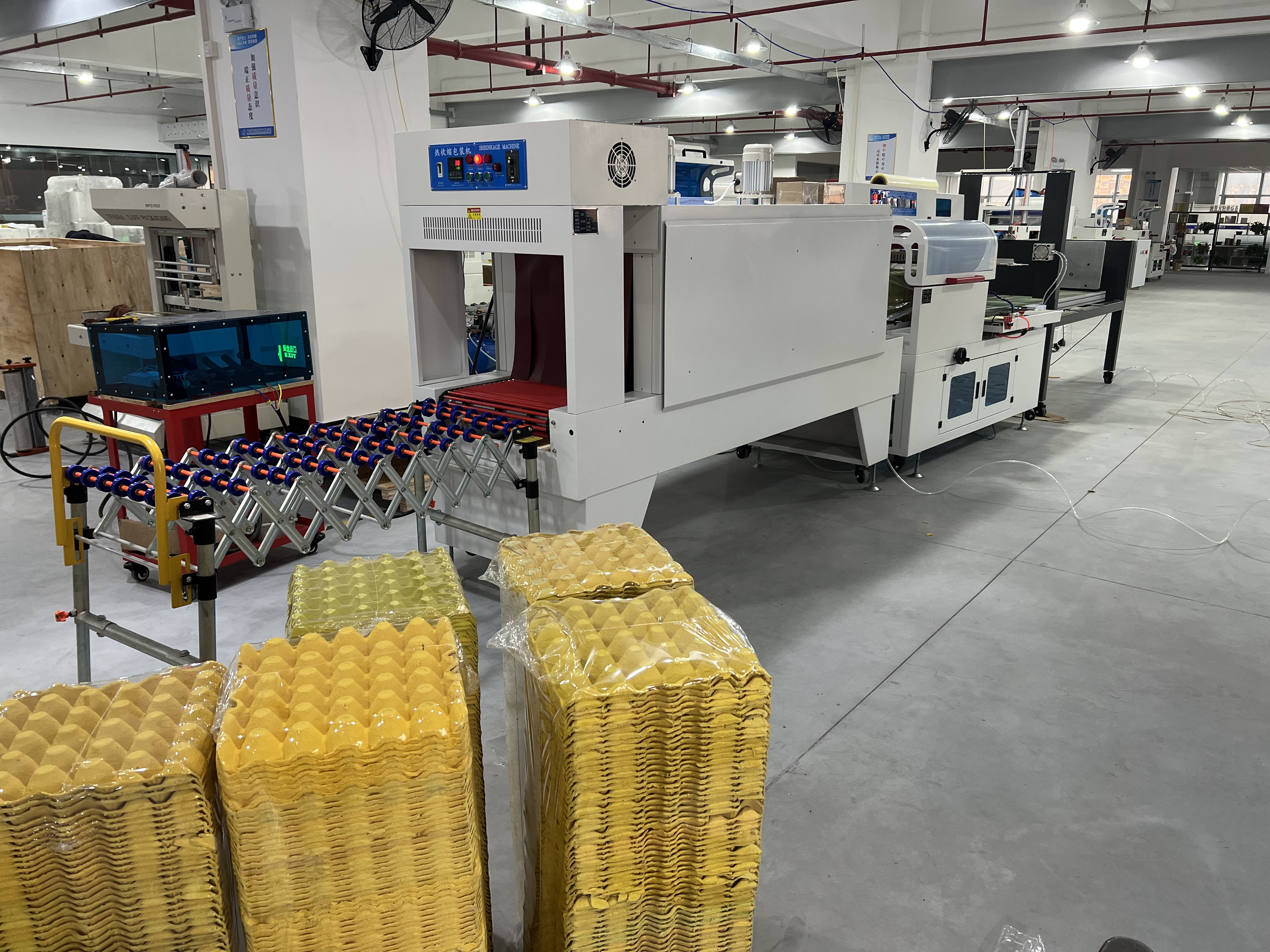

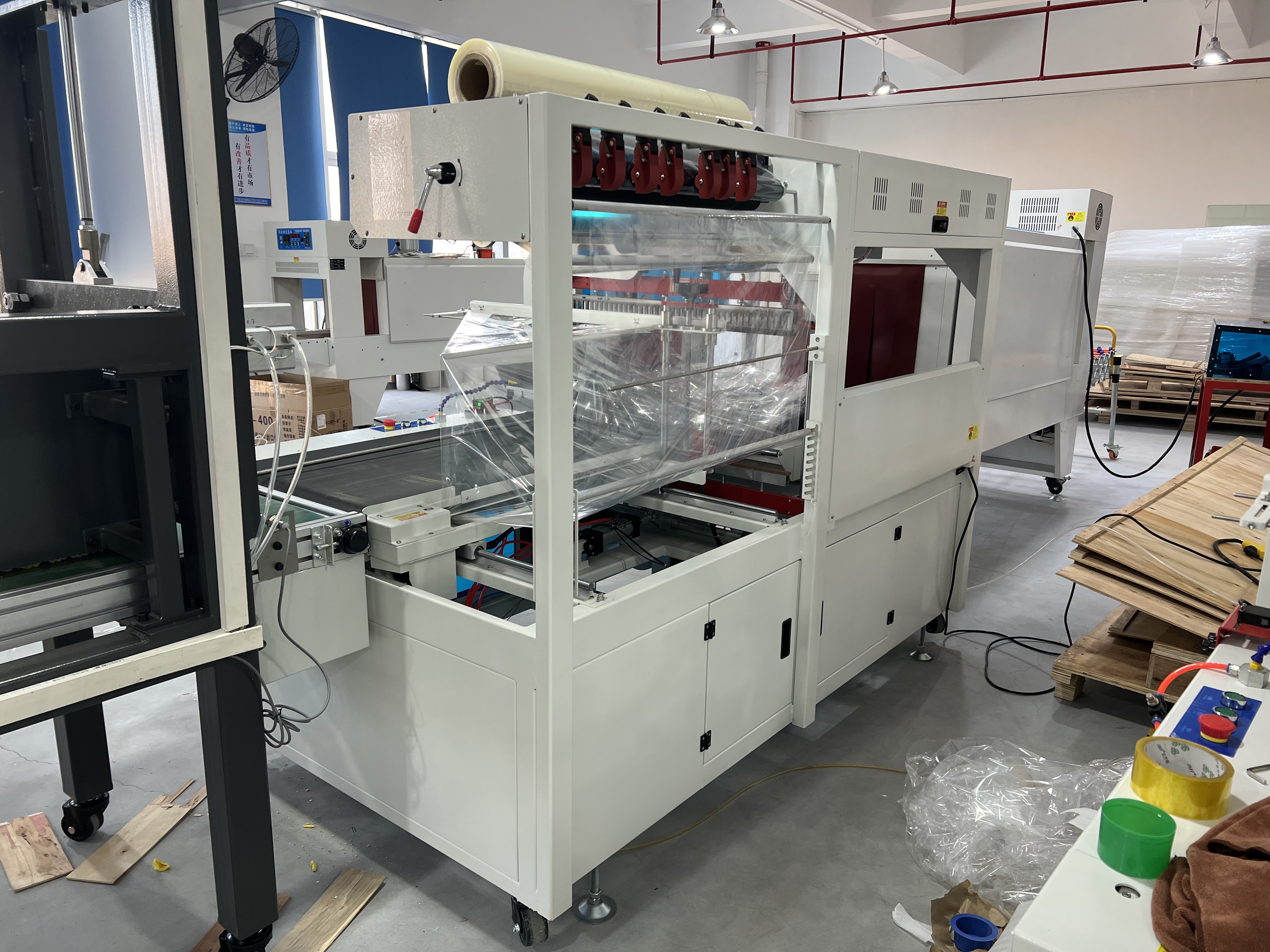

The Dwellpac automatic egg tray compress and shrink film packing system is designed for molded pulp egg tray producers who need a more stable way to compress, seal, and shrink-wrap tray bundles after forming and drying. The system combines a BF750 compression and sealing unit with a BSP-6040 shrink tunnel to help standardize the final packaging step.
bags/min reference capacity

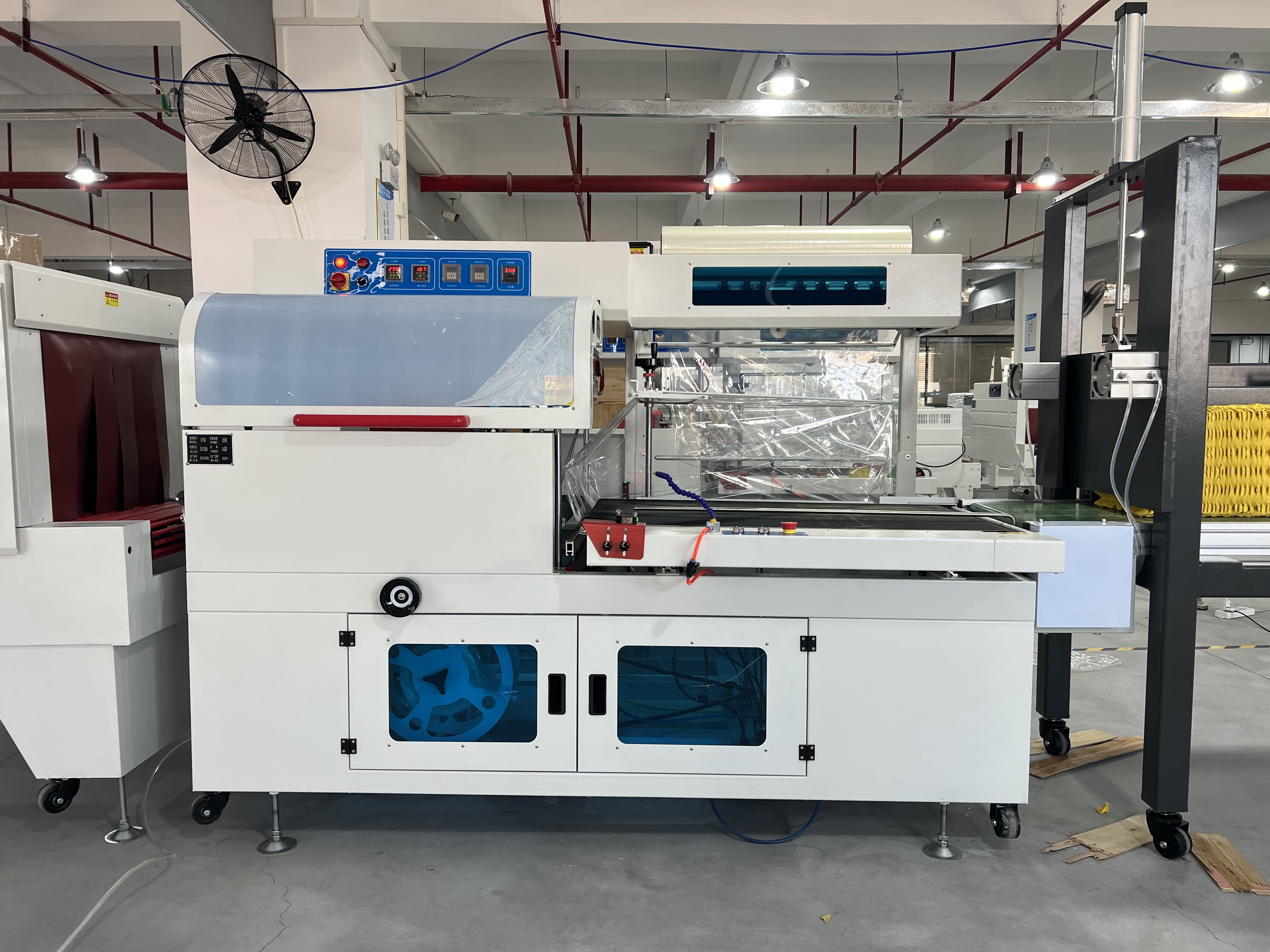

compression and sealing unit
heat shrink tunnel
shrink film compatibility

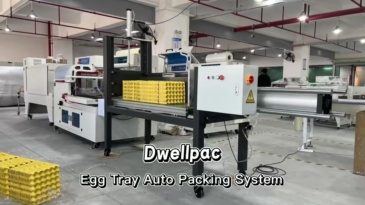

The video helps buyers understand how the system fits into the final packaging stage after egg tray production. Use it to review the compression, wrapping, and output flow before discussing layout and configuration details.
Loose egg tray stacks take up more warehouse and shipping space. Compression helps create a more compact bundle before shrink wrapping.
Hand packing can create inconsistent stack pressure and film tightness. Automated compression and sealing help make each pack more repeatable.
When upstream forming output increases, manual final packing may not keep pace. A dedicated packing system supports a more organized end-of-line process.
Different tray sizes, stack heights, and film types need different setup choices. Dwellpac reviews these details before recommending a configuration.
A suitable packing configuration depends on the real egg tray product, stack target, film material, and line layout. Before quotation, prepare these details so the system can be matched to your production conditions.
Egg tray size: length, width, height, and tray type.
Stack plan: number of trays per pack and target compressed height.
Output target: expected bags per minute and upstream egg tray line speed.
Film type: POF, PE, PVC, PP, or other preferred shrink film.
Factory conditions: available floor space, line direction, power supply, and air supply.
Finished pack requirement: storage, transport, distribution, or retail display needs.
This product is not a general pulp molding machine. It is part of the post-processing stage, where the finished egg tray must be packed in a way that is stable, compact, and suitable for real logistics conditions.
Dwellpac can review tray size, stack behavior, pack tightness, film choice, and upstream output before recommending the final packing setup. This is especially useful for producers who already have an egg tray line and want to improve the final packing stage without redesigning the whole production process.

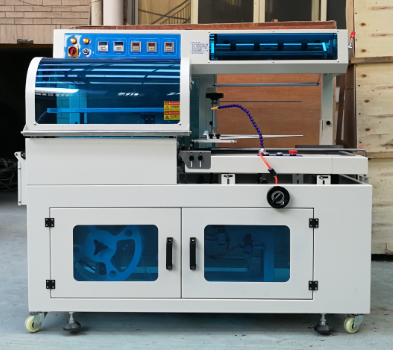

| Model | BF750 |
|---|---|
| Size | 2300 x 1275 x 1540 mm |
| Capacity | 15-30 bags/min |
| Voltage | 220V 50-60 Hz |
| Power | 1.5 kW |
| Gas Source | 0.6-0.8 MPa |
| Max. Packing Length | Confirm according to final pack size and line setup |
| Weight | 450 kg |
| Cylinder | AirTac |
| Motor | Maili |
| Sealing and Cutting Knife | Teflon-spray high-temperature alloy steel |

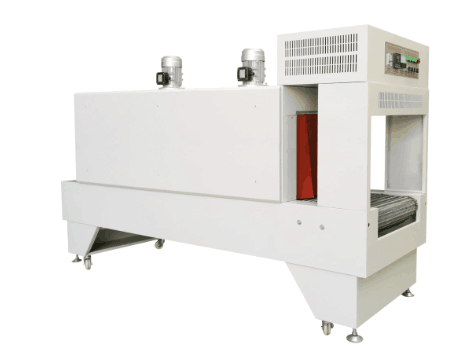

| Model | BSP-6040 |
|---|---|
| Size | 2500 x 900 x 1650 mm |
| Conveying Speed | 0-15 m/min |
| Voltage | 380V 50-60 Hz |
| Shrink Furnace Size | 1800 x 600 x 400 mm |
| Power | 24 kW |
| Product Size | 550 x 350 mm |
| Conveying Load | Max. 50 kg |
| Weight | 420 kg |
| Applicable Shrink Film | POF, PE, PVC, PP |
| Conveying Material | Chain, chain stick |
Parameter values are based on the existing Dwellpac product page source. Final configuration should be confirmed according to tray size, film type, packing target, and factory conditions.
To help Dwellpac recommend the right packing setup, please send your egg tray size, tray photos or drawings, stack quantity per pack, target pack output, shrink film type, factory layout, power supply, air supply, and whether the system will connect with an existing upstream line.
It is used to compress, seal, and shrink-wrap molded pulp egg tray stacks after production. The goal is to create compact and stable bundles for storage, handling, and transport.
The existing specification lists POF, PE, PVC, and PP shrink films. The final film choice should be confirmed according to packing strength, appearance, local requirements, and buyer preference.
The current product specification lists 15-30 bags/min as a reference capacity. Actual output depends on tray size, stack quantity, film type, operator setup, and line conditions.
It can be reviewed for use with an existing line, but Dwellpac should check the upstream output, tray stack method, available floor space, line direction, and power/air supply before confirming the layout.
Please provide tray size, tray photos or drawings, stack quantity per pack, target output, film type, available floor space, power supply, air supply, and whether the system needs to connect with existing equipment.
Send your tray size, stack plan, film type, target output, and factory layout. Dwellpac can review whether this compression and shrink film packing system fits your egg tray production line.
