DW-DYJ13080 automatic egg carton hot press machine is used after drying to hot press and shape pulp molded egg cartons into their final product condition. For egg cartons, fruit trays, consumer packaging, and many molded pulp products with surface or shape requirements, hot pressing is a standard stage before packing, labeling, or storage.
Servo feeding, spray/wetting, connecting-rod hot pressing, automatic collection, stacking, counting, and touch-screen control can be configured according to carton design, drying condition, output target, and hot press surface requirements.
In pulp molding production, forming and drying are enough for some low-surface-requirement products, such as many egg trays and industrial protective packaging parts. But for egg cartons, fruit trays, consumer packaging, and most molded pulp products that need better shape, surface, and closing performance, hot pressing is normally a standard process step after drying.

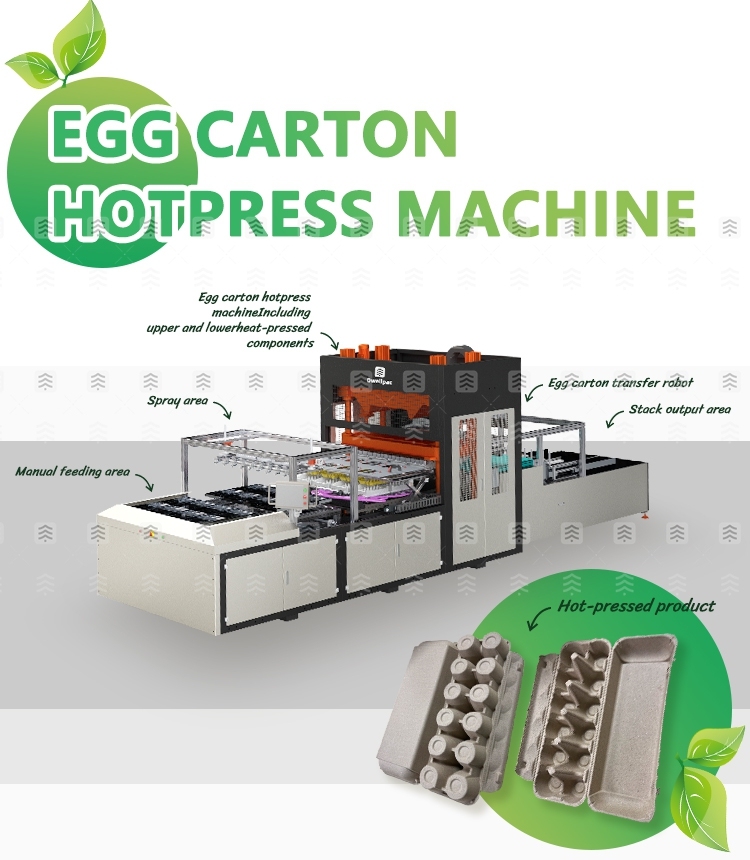

The Dwellpac DW-DYJ13080 automatic egg carton hot press machine is designed for this post-drying hot pressing stage. It helps dried pulp molded egg cartons reach their final surface and shape before packing, labeling, or storage. The system combines servo-driven feeding, a connecting-rod pressure mechanism, spray/wetting area, hot press molds, automatic collection, stacking, and counting.
pcs/hour reference capacity for 12-egg boxes
hot press pressure
installed power
operators in the reference configuration
For egg cartons, the dried product often still needs hot pressing to reach the intended surface, shape, hinge area, and closing behavior.
More consistent dimensions and carton geometry can make stacking, counting, packing, labeling, and storage easier to manage.
A stable hot press section helps connect drying output with later packing or labeling instead of leaving this stage to scattered manual handling.
The spray/wetting area, mold design, pressure, transfer, and stacking method should be matched to the dried carton condition and final product target.
The DW-DYJ13080 is used after forming and drying, when pulp molded egg cartons need to be hot pressed into their final product condition. In a typical egg carton line, this stage comes before final packing, labeling, or storage.
For egg carton projects, the key is to configure the hot press stage around the dried product, mold structure, surface target, and line speed. Before quotation, prepare these details so Dwellpac can review whether the DW-DYJ13080 fits your production line.
Egg carton design: egg count, dimensions, weight, sample photos, or drawings.
Drying condition: product moisture and shape condition before hot pressing.
Surface target: whether the main goal is surface smoothing, shaping, dimensional consistency, or stack stability.
Output target: expected cartons per hour and upstream line speed.
Mold requirement: current product structure, hot press mold needs, and changeover expectations.
Factory utilities: power supply, air pressure, vacuum condition, and available floor space.
Dwellpac does not review the hot press machine in isolation. For pulp molded egg carton producers, the hot press result depends on the formed product, drying condition, hot press mold design, transfer stability, and downstream packing or labeling requirements.
This is why Dwellpac reviews product samples, drawings, output target, drying condition, mold requirements, and factory layout before confirming the final configuration. The goal is to make the hot press stage fit the product and line, not only the machine parameter table.
| Model | DW-DYJ13080 |
|---|---|
| Applicable Product | Pulp molded egg cartons |
| Power | 38.5 kW |
| Hot Press Pressure | 600 kN |
| Reference Capacity | 2000-2500 pcs/hour for 12-egg boxes |
| Working Air Pressure | 0.4-0.6 MPa |
| Vacuum Requirement | -0.055 MPa to -0.1 MPa |
| Vacuum Consumption | 0.1 m3/min |
| Air Consumption | 0.15 m3/min |
| Number of Operators | 2 |
| Overall Dimensions | 7471 x 2094 x 2596 mm |
| Weight | Approx. 11.2 T |
| Proximity Switch | OMRON |
|---|---|
| Drive Motor | Siemens or Inovance, depending on final configuration |
| Touch Screen | MCGS or Weinview, depending on final configuration |
| PLC | Siemens or Inovance, depending on final configuration |
| AC Contactor | Schneider |
| Solenoid Valve | AirTAC |
| Cylinder | AirTAC |
| Air Source Processor | AirTAC |
Specifications are based on the DW-DYJ13080 technical data sheet and the existing Dwellpac product page. Final configuration should be confirmed according to egg carton size, mold design, process requirements, and factory utilities.
To help Dwellpac evaluate the right setup, please send egg carton drawings or photos, carton size and weight, egg count, product condition after drying, target hot press effect, expected output, mold requirements, factory layout, power supply, air pressure, vacuum condition, and whether the hot press machine needs to connect with existing equipment.
It hot presses and shapes pulp molded egg cartons after drying. For egg cartons and many molded pulp products with surface and shape requirements, this is normally a standard step before packing, labeling, or storage.
It is used after forming and drying, before final packing, labeling, or storage. Egg trays and some industrial packaging can often finish after drying, but egg cartons usually need hot pressing to become the final product.
The technical data sheet lists 2000-2500 pcs/hour based on 12-egg boxes. Actual output depends on product design, drying condition, mold setup, operator workflow, and line configuration.
The spray/wetting area is used to adjust moisture before hot pressing when the dried carton condition and final surface target require it. The exact process should be confirmed according to the carton condition after drying and the desired hot press result.
It can be reviewed for use with an existing production line. Dwellpac should check carton size, output target, line direction, available space, power, air pressure, vacuum condition, and transfer requirements before confirming the layout.
Please provide carton drawings or photos, carton size and weight, egg count, product condition after drying, target output, hot press requirements, mold needs, factory layout, power supply, air supply, and vacuum condition.
