The first hard decision in designing a pulp molding production line isn't the mold shape or the drying temperature. It's a more fundamental question: what drives the motion?
Pneumatic cylinders, hydraulic cylinders, and electric actuators — these three actuator families cover nearly every motion requirement in pulp molding equipment. Each has its own lineage, its own character, and its own non-negotiable boundaries. Engineers new to this industry often get trapped in the "which one is better?" question. Experienced hands know: there is no universal answer, only the best fit for a given set of constraints.
This guide won't just throw a comparison table at you. It will help you understand the personality of each actuator type — and, more importantly, which personality belongs on which station of your line.
The logic of a pneumatic cylinder is simple: compressed air pushes a piston, producing linear motion. The principle is a century old, and it's still alive and thriving on the floor of nearly every pulp molding plant.
At a working pressure of 0.5–0.7 MPa, a Φ63 mm bore cylinder can deliver approximately 1,870 N of thrust, with a stroke speed reaching 2 m/s. The entire system requires only an FRL (filter-regulator-lubricator), a solenoid valve, and a cushion. This architectural simplicity translates into not just low upfront cost, but exceptionally low maintenance burden: the floor operator checks the water separator and replaces filter elements periodically, and that's largely it.
On a pulp molding line, cylinders naturally own the motions that demand fast, repetitive, and light action: forming mold open/close, wet-preform transfer between stations, air-blow demolding, and push/position movements on conveyors. These motions don't require massive force, but they're relentless on cycle time — and cylinders thrive here.
Air is compressible. This inescapable fact means pneumatic positioning accuracy is inherently limited — repeatability typically falls in the ±0.1 to ±0.5 mm range, and it drifts further as supply pressure fluctuates. For precision pressing operations, this is disqualifying.
There's also a hidden operating cost: the air compressor is one of the factory's biggest energy consumers. A pneumatic system may look cheap on the capital budget, but its lifetime running cost is far from trivial.
In dusty environments, cylinders must be fitted with dust boots. For long-stroke stations, opt for guided cylinders to prevent side-load damage to seals. These small details are where hard-won experience lives.

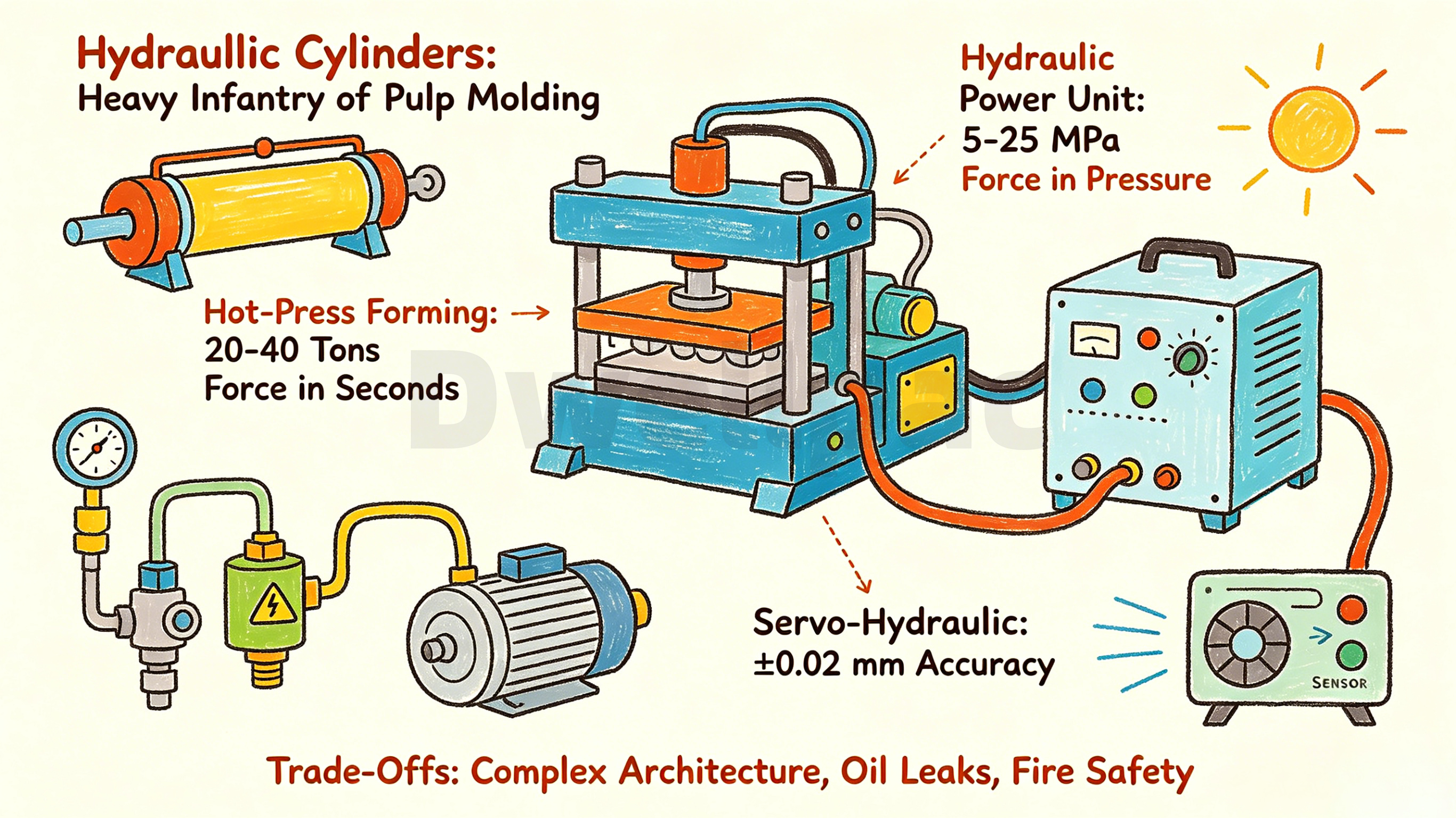

If pneumatic cylinders are the "light cavalry" of a pulp molding line, hydraulic cylinders are the irreplaceable "heavy infantry."
Hot-press forming is the heart of pulp molding. A relatively small mold area must deliver 20–40 tons of force within seconds, then hold that pressure long enough to expel moisture and set the fiber shape. In this arena, only hydraulics delivers what's required: a hydraulic power unit raises working pressure to 5–25 MPa, and a Φ150 mm bore cylinder easily exceeds 28 tons of thrust. Because liquids are essentially incompressible, pressure hold is rock-stable with minimal fluctuation.
This is hydraulics' gift: the ability to balance extreme force with unwavering pressure stability. For thick-walled products, deep-cavity molds, or any application requiring extended dwell under pressure, hydraulic solutions have no real peer. Modern servo-hydraulic systems can even deliver positioning accuracy down to ±0.02 mm — far from the crude image of traditional hydraulics.
Hydraulic system architecture is inherently complex: power unit, solenoid directional valves, cooler, pressure sensors — every link is a potential failure point. Oil leaks are an ever-present risk; in high-temperature hot-press environments, fire safety awareness is mandatory, and seals must be high-temperature rated. Regular oil changes, filter cleaning, and seal replacement require trained personnel.

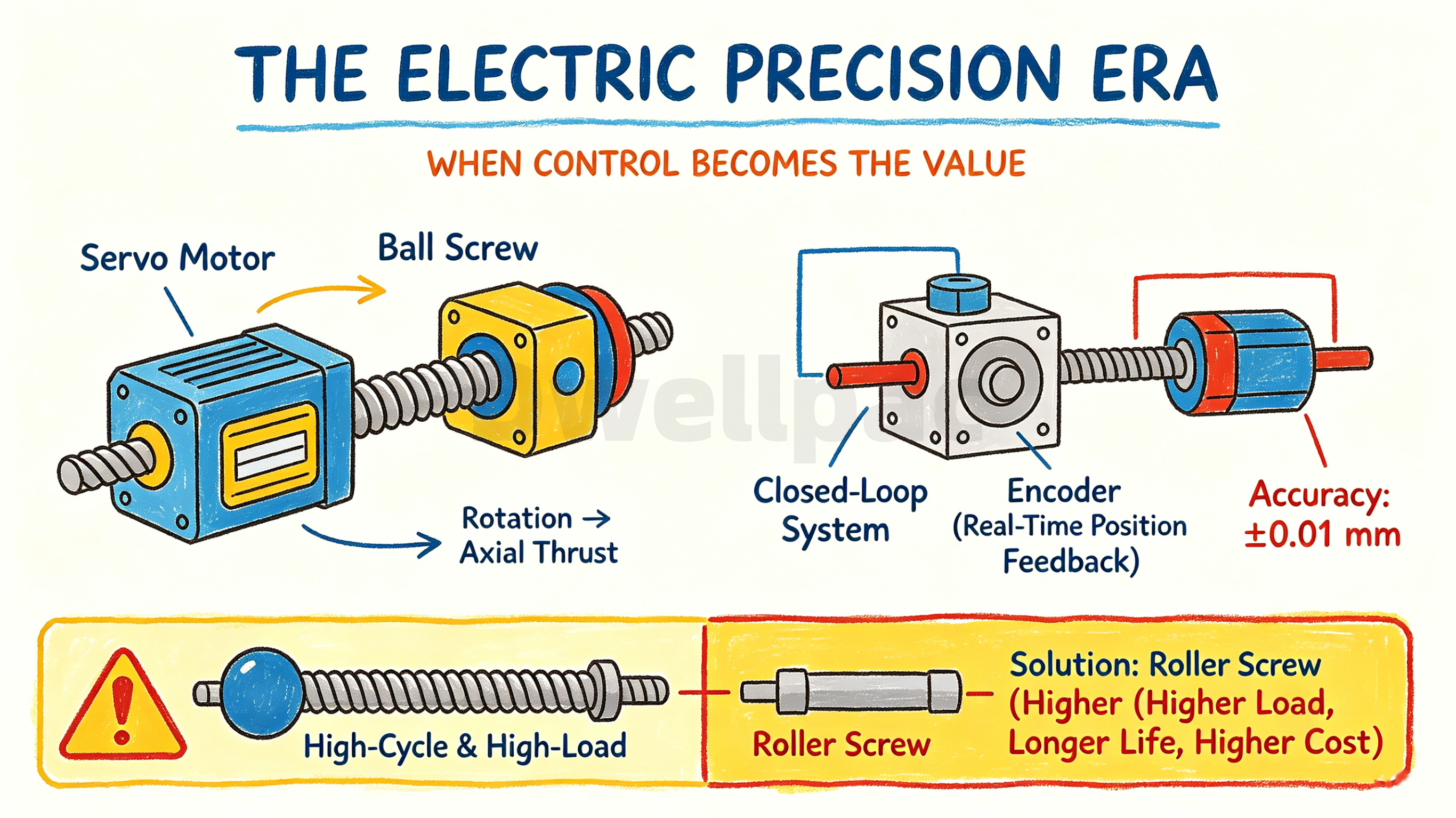

Electric actuators are the youngest and fastest-evolving of the three. The principle: a servo motor drives a ball screw (or roller screw), converting rotation into axial thrust. The entire system runs closed-loop, with an encoder feeding back position data in real time. Accuracy typically reaches ±0.01 mm.
That number matters in concrete ways. It means the fine rim on a thin-wall food container can be reproduced with exact repeatability. It means wall-thickness variation on premium industrial packaging can stay within your specified tolerance. It means multi-axis synchronized motion becomes straightforward — no need for complex hydraulic synchronization circuits.
For equipment destined for export markets or Industry 4.0 integration, electric actuators offer another advantage: native communication protocol support means seamless integration with PLC and MES systems. No hydraulic oil, no compressed air — the entire station is inherently clean, meeting food-grade production requirements without extra engineering.
Electric actuators consume near-zero standby power; they draw current only when executing motion. This contrasts sharply with an air compressor running at full readiness regardless of actual demand. Over years of operation, the energy cost advantage is substantial.
Under combined high-cycle and high-load conditions, ball screw service life becomes the limiting factor. The solution: upgrade to a roller screw — higher load capacity, longer life, at a predictably higher price point.
| Station | Recommended Actuator | Reason |
|---|---|---|
| Forming mold open/close (standard tray) | Pneumatic | High speed, moderate force, cost-sensitive |
| Forming mold open/close (fine-detail product) | Electric or Hydraulic | Controlled speed profile protects delicate mold features |
| Wet-preform transfer | Pneumatic | Light load, high cycle rate |
| Hot-press main cylinder (standard egg tray/carton) | Hydraulic | 20–40 ton requirement, long dwell, stable pressure |
| Hot-press main cylinder (thin-wall, food-grade, export) | Electric (servo-driven) | Clean, programmable force/speed, Industry 4.0 ready |
| Hot-press auxiliary motions (ejector, stripper) | Pneumatic | Light duty, fast cycle |
| Demolding (air blow) | Pneumatic | Natural fit |
| Post-press / calibrating press | Hydraulic | Variable force, dwell stability needed |
| Product stacking / palletizing | Pneumatic or Electric | Pneumatic for simple stack; electric for precise placement |

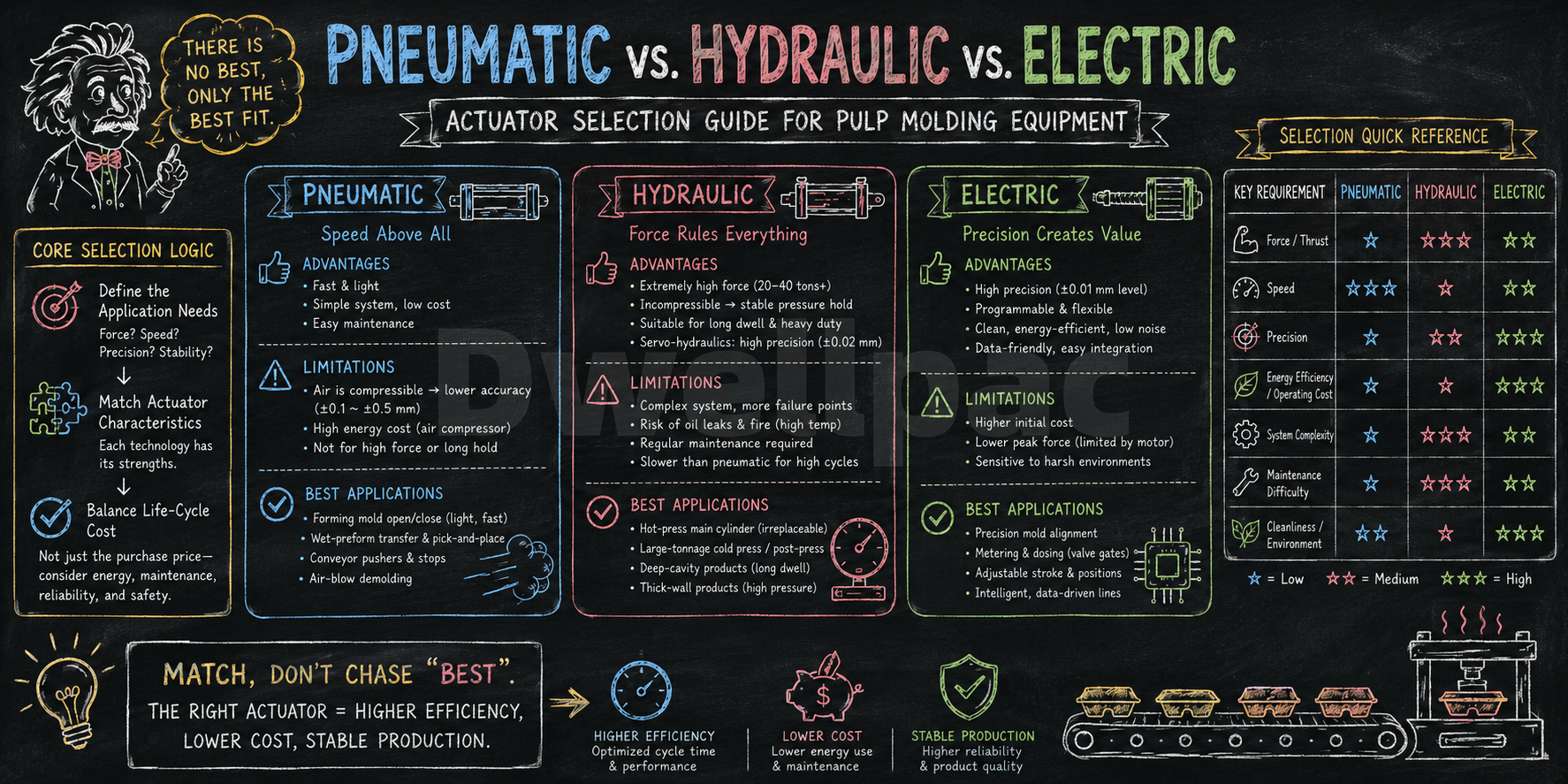

| Dimension | Pneumatic | Hydraulic | Electric (Servo) |
|---|---|---|---|
| Force range | 100–5,000 N (up to ~30 kN) | 5,000–500,000+ N | 500–100,000 N |
| Positioning accuracy | ±0.1–0.5 mm | ±0.02–0.1 mm (servo-hydraulic) | ±0.01 mm |
| Speed | Up to 2 m/s | 0.1–0.5 m/s | 0.2–2 m/s (programmable) |
| Capital cost | Low | Medium–High | High |
| 5-year energy cost | High (compressor always running) | Medium | Low |
| Maintenance complexity | Low | High | Low–Medium |
| Environmental cleanliness | Good | Poor (oil risk) | Excellent |
| Industry 4.0 readiness | Basic (on/off only) | Moderate | Native |
| Best suited for | High-cycle, light-load, cost-sensitive | Extreme force, pressure-hold, thick products | Precision, food-grade, export, connected lines |
| Product Type | Forming Station | Hot-Press Station | Notes |
|---|---|---|---|
| Egg trays (standard, large draft angles) | Pneumatic | Hydraulic | Cost-optimized baseline |
| Egg cartons (moderate detail) | Pneumatic or Electric | Hydraulic | Upgrade forming to electric for better surface finish |
| Thin-wall food containers | Electric | Electric or Servo-Hydraulic | Clean, precision-critical; food-grade may mandate electric |
| Premium tableware (fine rim, small radii) | Electric | Electric | Surface contact speed control is critical |
| Industrial packaging (thick-wall) | Hydraulic | Hydraulic | Force dominates; precision is secondary |
| Electronic product cushioning (high cosmetic spec) | Electric | Electric | No impact marks, clean environment |

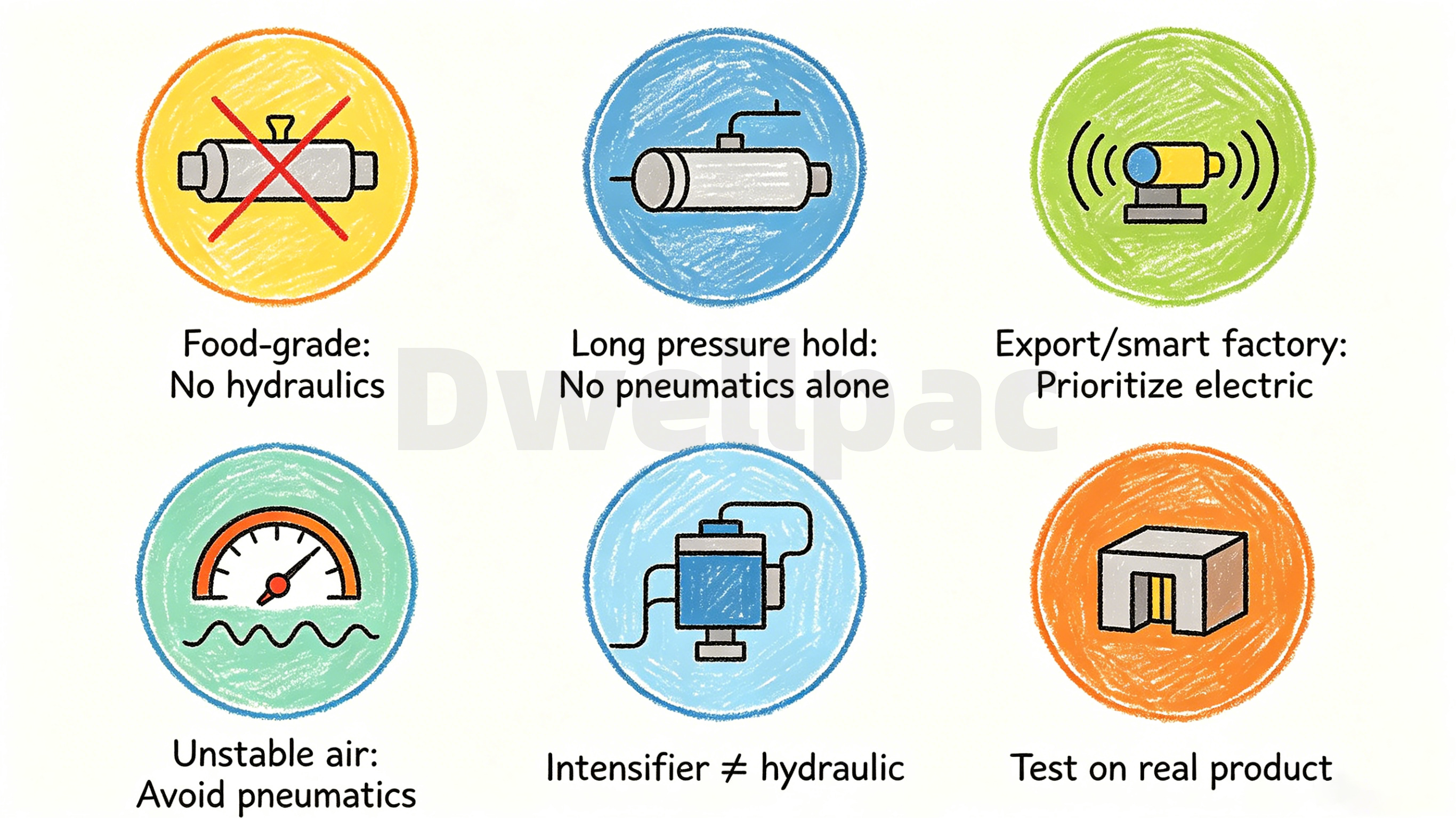

These six principles can go straight into your plant's equipment specification manual:
Key insight: The single most expensive mistake in actuator selection is matching technology to budget rather than to station requirements. A $500 pneumatic cylinder that forces 3% scrap on a high-value product line costs far more over a year than a $5,000 electric actuator that holds scrap below 0.5%.
The core of engineering selection is never about finding the most advanced technology. It's about finding the best fit for the constraints you're actually living under.
Pneumatic serves the world of light-load, high-cycle motion. Hydraulic solves the heavy-pressure, long-dwell problem. Electric answers the call for precision, programmability, and cleanliness. These three forces are like three different keys, each unlocking a different shape of lock. Trying to use a pneumatic cylinder to deliver 40 tons is futile. Using an electric actuator on a simple conveyor pusher is wasting precision.
The value of this framework isn't in giving you one "correct" answer. It's in helping you see the question clearly: At this specific station, what is the real bottleneck — force, speed, or precision? Once the bottleneck is clear, the answer is rarely far behind.
The pulp molding industry is transitioning from rough-and-ready production toward precision manufacturing. A plant running hydraulic cylinders across its entire line today may find itself forced to retrofit electric actuators throughout — because an export customer's food-safety audit demands it. Understanding the boundaries of each actuator family now is the best preparation for that evolution.
For a deeper understanding of how these choices affect your full-line economics, see our guide on mold TCO analysis and our mold maintenance protocols — both directly affected by actuator precision at the press stations.
Can I use a pneumatic cylinder on my hot-press instead of hydraulic?
No. A standard hot-press station for egg trays or cartons requires 20–40 tons of force. Even a very large pneumatic cylinder (Φ200 mm at 0.7 MPa) produces only about 2.2 tons of thrust. Pneumatic systems simply cannot generate the force density required. A pneumatic-hydraulic intensifier can produce high force, but at the cost of slow cycle rates and high compressed-air consumption — it's a niche compromise, not a general-purpose replacement.
When is it worth upgrading from pneumatic to electric on the forming station?
When your product has small draft angles, fine surface details, or cosmetic requirements that prohibit impact marks. Electric actuators allow a programmed deceleration profile — the mold approaches slowly, makes gentle contact, then applies force. This is physically impossible with a standard pneumatic cylinder. The payback window typically closes within 12–18 months through reduced scrap and mold wear.
Are servo-hydraulic systems a viable middle ground?
Yes, for specific applications. A servo-hydraulic system combines the force density of hydraulics with the precision of closed-loop control. It is particularly compelling for hot-press stations on medium-volume, high-mix production lines where multiple product types require different force and dwell profiles. The trade-off: capital cost is closer to electric than to traditional hydraulic, and oil maintenance remains a requirement.
What is the typical service life difference between pneumatic and electric actuators?
Pneumatic cylinders: 3,000–10,000 km of stroke life (seal replacement is the typical event). Electric actuators (ball screw): 10,000–50,000 km depending on load factor; roller screw variants can exceed 100,000 km. However, electric actuators cost 5–10× more upfront — the decision hinges on the cost of unplanned downtime at your specific station.
How much energy can electric actuators really save versus pneumatics?
A continuously running 30 kW air compressor with a 50% duty cycle operating 6,000 hours/year consumes approximately 90,000 kWh. Converting 5–8 high-cycle pneumatic stations to electric on a typical egg tray line can reduce compressor load by 15–25%, saving 13,500–22,500 kWh/year. At $0.10/kWh, that's $1,350–2,250 annually — not transformative by itself, but combined with reduced scrap and maintenance savings, the total may justify the investment.
Does Dwellpac offer equipment with all three actuator types?
Yes. Dwellpac pulp molding lines are configured with the actuator technology that best matches each station's requirements. Standard egg tray and egg carton lines default to pneumatics for forming mold motions and hydraulics for the hot-press — the proven cost-optimized combination. For premium products, food-grade applications, or export destinations, we offer fully electric configurations. Contact our engineering team to discuss what's right for your production.
Actuator selection is a station-by-station decision — and the right answer depends on your product mix, your output targets, and your export destinations. Send us your production requirements: our engineering team will return a recommended actuator configuration by station, with cost, energy, and maintenance projections, within 24 hours.
