A molded pulp cup can look convincing in a 3D model and still fail as a production project. The sidewall may form unevenly, the wet preform may not transfer cleanly, cups may lock together in a stack, or the barrier that solves leakage may weaken the intended recycling or composting claim.
Those risks are connected. A deeper wall changes fiber distribution. A smaller draft angle changes release. A new barrier changes post-processing, compliance and end of life. Higher cavity count changes drainage, transfer, heating and the number of defects a line can produce per cycle.
Can a molded pulp cup create enough market and technical value to justify a different product, mold and production system?
This article discusses cup bodies formed from wet fiber slurry on molded tooling. It does not refer to conventional paperboard cups made from rolled sheet, molded pulp cup lids or cup carriers.
Molded pulp cups are worth developing when fiber contributes value that the customer recognizes: a distinctive shape or surface, a visible material identity, reduced dependence on virgin plastic, entry into a higher-value category or a credible response to a buyer's packaging strategy.
They deserve caution when the project depends on the lowest possible unit price, established ultra-high-volume commodity economics, an undefined barrier, untested geometry or an end-of-life claim that has no matching local collection and treatment route.
The investment test: the value created by differentiation, portfolio strategy and market fit must exceed the combined cost and risk of product development, tooling, barriers, yield ramp-up and stable production.
Conventional plastic cups remain difficult to beat in applications where low weight, established barrier performance, high production speed and minimum unit cost dominate the buying decision. A credible molded pulp comparison has to acknowledge those strengths.
At the same time, packaging manufacturers and brand owners are under pressure to understand additional material routes. The OECD Global Plastics Outlook reports that global plastics production reached about 460 million tonnes in 2019, while plastic waste reached about 353 million tonnes. Only around 9% of that waste was ultimately recycled, and packaging accounted for roughly 40% of plastic waste.[1]
These figures explain why companies are studying alternatives. They do not prove that every molded pulp cup has a lower carbon footprint than every plastic cup. That conclusion would require a product-specific assessment of fiber and polymer sources, product weight, energy, process yield, barrier construction, transport and the actual recovery route.
Neither material wins every row. The right route depends on which requirements carry the most value and which risks can be validated.
| Decision area | Conventional plastic route | Molded pulp opportunity | Evidence needed before choosing fiber |
|---|---|---|---|
| Unit economics | Mature high-volume processes can offer strong speed and material efficiency | May support a higher-value product rather than a commodity substitute | Total cost covering tooling, material, energy, barrier, trim, rejects, changeovers and maintenance |
| Barrier performance | Established structures exist for many liquid and shelf-life applications | A fiber body can be combined with an application-specific barrier route | Testing on the complete cup under the intended contents, temperature and contact time |
| Surface and brand identity | Can provide clarity, gloss, color and established decoration options | Can offer a visible fiber character, tactile surface and molded detail | Repeatable surface samples produced with the intended fiber, mold and finishing process |
| Shape and geometry | Mature design rules and tooling routes for standardized cups | Can support a different visual and structural language | Forming, transfer, draft, wall-thickness and demolding trials for the actual geometry |
| Stacking and downstream use | Well-established interfaces exist for many filling and dispensing systems | A custom profile can be designed around a target use | Stack-height, separation, lid/rim and filling-line tests using representative parts |
| End-of-life positioning | Depends on polymer, format and local recovery system | Fiber may reduce plastic mass or enable another recovery strategy | Evidence for the complete construction and acceptance in the destination market |
| Best commercial fit | Price- and speed-driven standardized formats | Differentiated, premium or strategically important applications | Buyer value, target price, volume plan and realistic qualified-output assumptions |
The EU Packaging and Packaging Waste Regulation, Regulation (EU) 2025/40, entered into force on 11 February 2025 and applies across the EU from 12 August 2026.[2] It does not require manufacturers to replace plastic cups with molded pulp cups.
It is also too broad to say that every empty cup is treated identically under the PPWR. European Commission guidance explains that a beverage cup sold empty to consumers for private use is not necessarily considered packaging, while a cup designed and intended to be filled at the point of sale can be service packaging.[3] The product, sales model and actual use therefore matter.
For beverage cups made wholly or partly from plastic, the EU Single-Use Plastics Directive may also be relevant. Its measures include harmonized marking requirements for certain products, including beverage cups.[4] A fiber-bodied cup with a plastic-containing functional layer should not be assumed to fall outside those rules solely because fiber is the main structural material.
For many projects, differentiation is the strongest reason to investigate molded fiber cups. But every design opportunity changes the manufacturing problem.
| Design target | Potential product value | Production effect that must be reviewed |
|---|---|---|
| Controlled inner and outer surfaces | More refined hand feel, appearance and a more consistent base for finishing | Fiber preparation, mold surfaces, moisture removal, heat, pressure and repeatability |
| More upright sidewalls | A cleaner silhouette and potentially more usable branding area | Draft, shrinkage, surface friction, release method and damage risk |
| Taller or deeper geometry | Access to additional beverage, dairy, dessert or consumer-product formats | Fiber distribution, bottom-corner thickness, drainage, transfer and demolding |

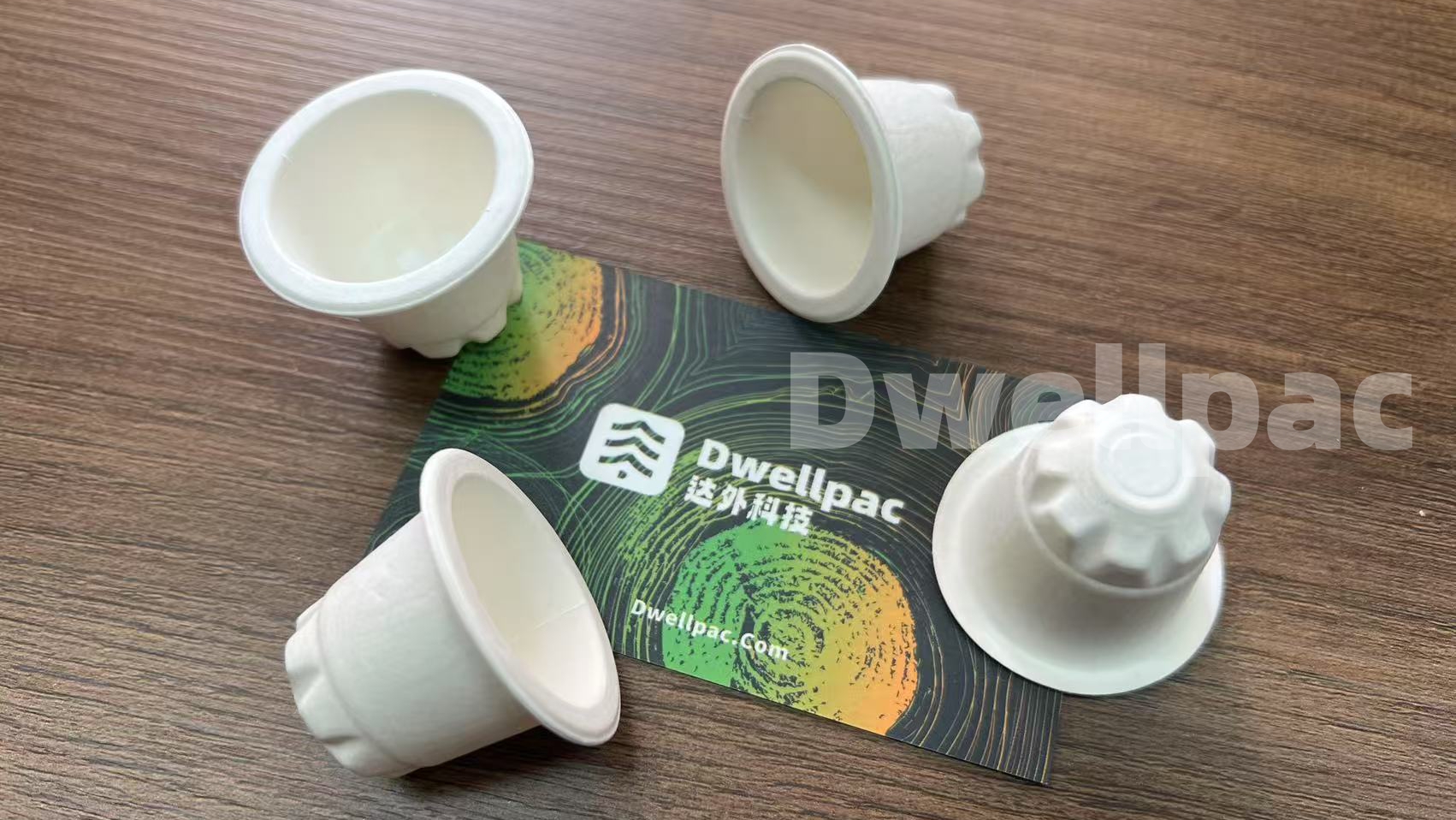

| Embossing, debossing or texture | Structural branding, grip or tactile identity without relying only on print | Detail reproduction, local thickness, mold cleaning, release and stacking |
| Color and distinctive fiber appearance | A recognizable material identity and premium visual direction | Raw-material variation, pigment compliance, batch consistency and finishing compatibility |
| Custom rim, stack or lid interface | Better fit with the intended consumer or filling-line use | Dimensional repeatability, anti-locking behavior, separation and interface testing |
These targets cannot be added like independent options on a specification sheet. A deep cup, reduced draft, fine texture and smooth surface may pull the mold and process in different directions. The value of engineering review is not to promise all of them; it is to determine which combination can be produced repeatedly at an acceptable qualified yield.
DWELLPAC's custom pulp molds and tooling page outlines the relevant review areas, including product structure, drainage, cavity layout, demolding, stacking and machine fit.
Fiber-based does not automatically mean recyclable, biodegradable or compostable.
A functional cup may include a fiber body, barrier coating or film, wet-end chemistry, ink, pigment, adhesive, label, seal or lid interface. The complete structure determines how the product performs and which claims can be supported.
EN 13432 is an important reference for packaging designed to be recovered through composting and biodegradation.[5] It should be treated as a route for evidence, not as a universal claim. A finished package made from multiple materials should be assessed as a complete construction unless components are designed to be separated and treated through different routes.
A short-service hot drink, a refrigerated dairy product and a dry-food application may need different tests and constructions. Water-based coatings, films and wet-end additives also vary by formulation. None should be described as universally recyclable, compostable or suitable without evidence for the actual finished cup.
The eight answers below define the cup, the mold, the process and the investment assumptions.
| Question | What the answer changes | Evidence to prepare |
|---|---|---|
| 1. What are the geometry and depth? | Draft, drainage, wall distribution, cavity layout, transfer and trimming | 2D/3D drawing, critical dimensions, rim/base details and target volume |
| 2. What will the cup hold? | Fiber structure, wet-strength target, barrier and test conditions | Contents, fill temperature, service temperature, contact time and storage conditions |
| 3. Which barrier properties are required? | Coating, lamination, additives, downstream equipment and end-of-life options | Defined water, oil, oxygen or moisture targets and a pass/fail test plan |

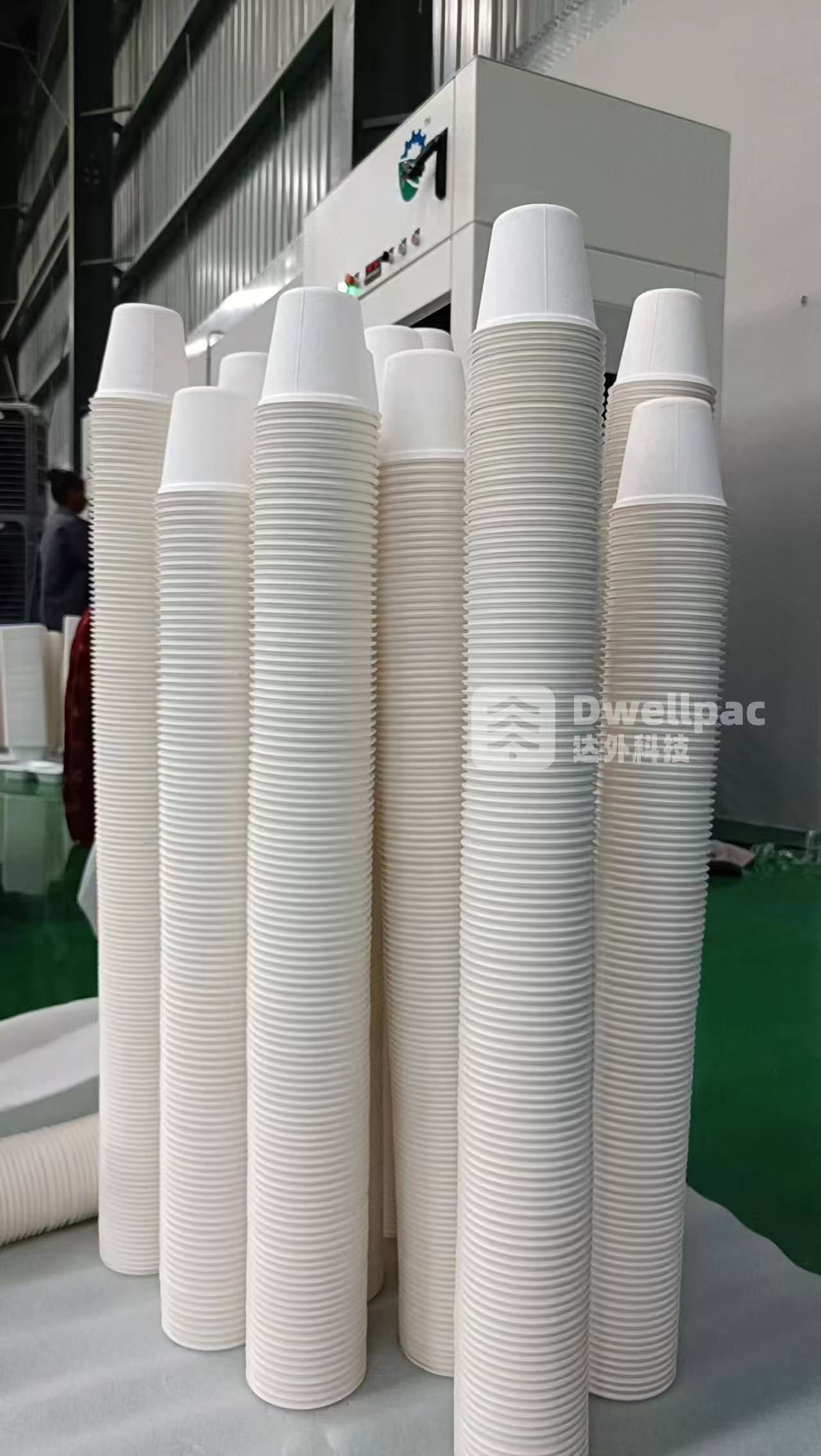

| 4. How must it stack and denest? | Wall profile, rim, stacking features, packing density and filling-line behavior | Target stack, separation method, loading/dispensing conditions and mating components |
| 5. What draft and release conditions are feasible? | Tool surface, mold movement, demolding method, damage risk and stable cycle | Geometry review plus forming and release trials on representative tooling |
| 6. What surface and branding result is required? | Mold detail, hot pressing, pigmentation, printing, coating and inspection | Approved appearance reference, texture/marking requirements and tolerance priorities |
| 7. Which market and compliance requirements apply? | Material documentation, testing, labels, claims and project timeline | Destination countries, food-contact use, customer standards and intended claims |
| 8. What happens after use? | Barrier selection, labeling, EPR treatment and supportable environmental claims | Actual local collection and treatment route for the complete cup |
These questions are not independent. Changing the barrier can change recyclability. Reducing draft can change demolding and cycle stability. Increasing depth can change cavity count and wall distribution. If the project cannot answer the eight questions, it has a concept, not yet a business case.
A reliable route moves from the finished product backward to the mold, process and machine:
Confirm the contents, geometry, barrier, stack, appearance, market and target qualified output. A machine name or nominal capacity cannot resolve an undefined product.
Check depth, draft, rim strength, wall transitions, stacking features and downstream interfaces. The goal is to identify conflicts while changes are still relatively easy.

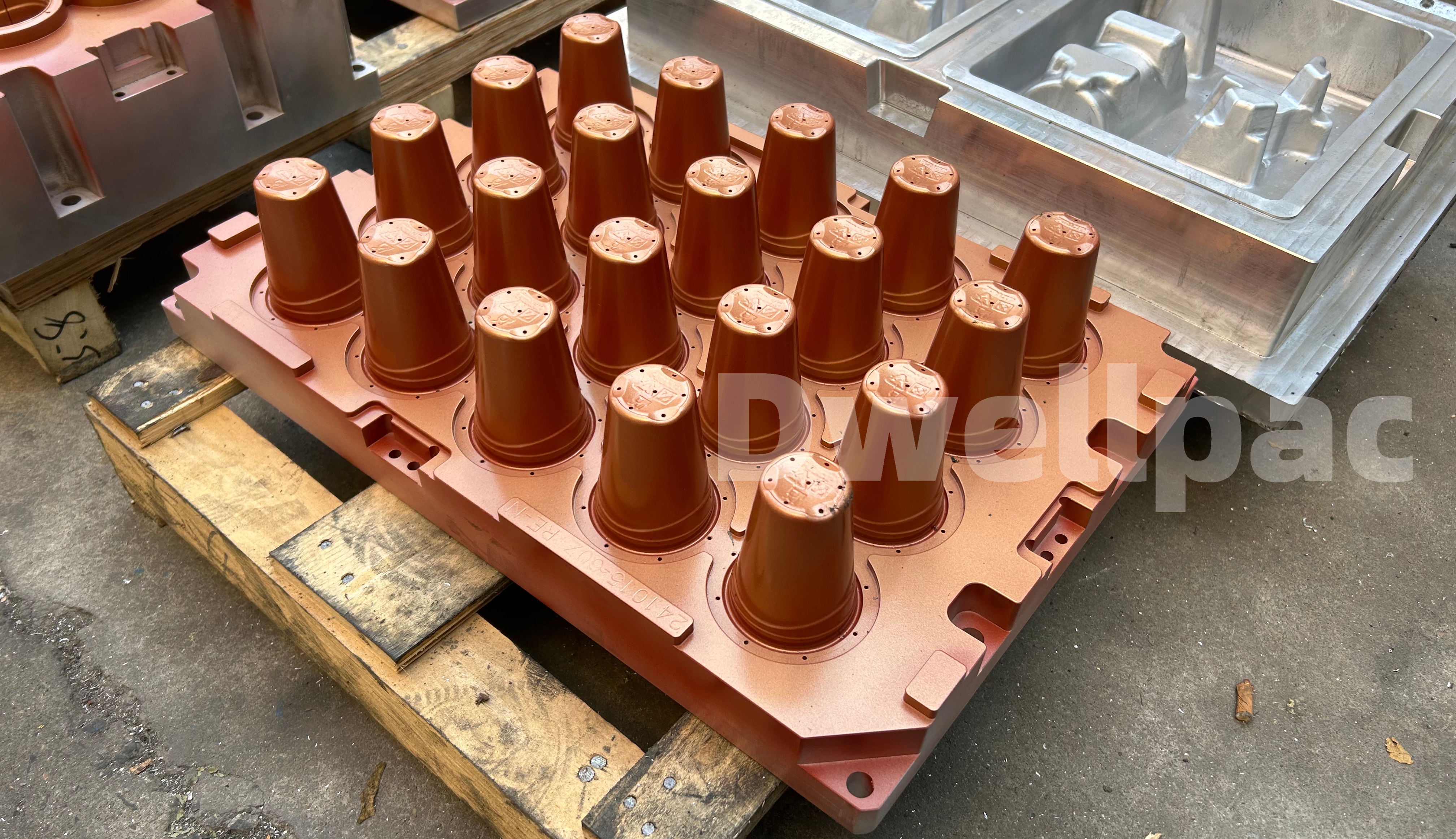

The forming mold controls drainage and the wet preform delivered to the next stage. Cavity spacing, vacuum and drainage paths, mold strength, transfer logic, hot-press matching and machine mounting all influence stability.
The highest theoretical cavity count is not automatically the best production layout. More cavities help only when the machine can form, transfer, press, release, trim and handle them consistently.
In a wet-press route, a wet or partly dewatered preform is transferred into matched heated molds, where heat, pressure and moisture removal work together. In other routes, forming and drying occur separately and a later hot-press stage mainly improves shape, surface or dimensional consistency. Suppliers use these terms inconsistently, so buyers should map the actual workpiece condition and process sequence rather than relying on a label.
Trimming, barrier application, printing or other finishing must be tested on representative molded parts. Surface moisture, dust, dimensional variation and geometry can change adhesion, appearance, trim quality and stacking.
A useful starting formula is:
The stable cycle must include forming, transfer, closing, pressing or drying, opening, release and handling. The business case should also allow for startup, heating, cleaning, changeovers, maintenance, rejects and downstream bottlenecks.
A cup produced successfully once is a sample. A manufacturable cup is one that meets functional and dimensional requirements repeatedly under representative production conditions.
| Continue development when | Pause or redesign when |
|---|---|
| The project has a clear source of customer or strategic value beyond material substitution. | The business case depends only on being cheaper than a mature commodity plastic cup. |
| The intended contents, barrier and destination market are defined. | The barrier or holding condition is still described only as waterproof. |
| Geometry, stacking and surface targets can be reviewed as one product system. | The design combines demanding depth, draft, finish and stacking targets without trials. |
| The buyer accepts that tooling, trials and yield ramp-up are part of development. | Capacity assumptions use cavity count or nominal cycle time without qualified yield. |
| The end-of-life claim is tied to the complete construction and a real local route. | Environmental or compliance claims are being selected before the product construction is known. |
The most useful first inquiry is a product definition, not a request for a generic machine quotation. Send DWELLPAC:
DWELLPAC can use these inputs to review product structure, mold direction, cavity layout, demolding, stack behavior and machine fit before the production route is finalized.
Request a cup feasibility and mold-fit reviewNot automatically. Commodity plastic production may retain a strong speed and unit-cost advantage. A molded pulp project should be evaluated on total value and total cost, including tooling, material, energy, barriers, yield, trim, rejects, labor, maintenance and downstream handling.
Potentially, but "hot drink" is not a complete specification. The contents, fill and service temperatures, contact time, rim design, wet strength, barrier and consumer handling conditions must be defined and tested on the finished cup.
Some constructions may support a specific recycling or composting route, but fiber content alone is not proof. The complete cup, including barriers, inks, adhesives and contamination after use, must match the relevant test, certification and local treatment system.
There is no universal safe number. Feasibility depends on cup depth, fiber behavior, shrinkage, surface condition, mold construction, transfer and release method. Confirm draft through product-specific tooling review and trials.
Start with the finished product requirement. Then develop the mold, process route and machine configuration together. Selecting equipment from nominal capacity alone can create a mismatch in forming area, transfer, heating, tooling or downstream operations.
Often it can be reviewed, but compatibility is not automatic. Provide the machine model, forming area, platen and mounting details, vacuum connections, transfer route, heating or drying method, controls and existing tooling interface before confirming the mold direction.
