Dwellpac lce-cream Paper Cone Machine is the first of its kind inChina, which is designed and manufactured according to highstandards and have achieved CE certification and have beenexported to more than 80 countries and regions. The machinecan produce ice-cream with high speed,quality and efficiency. ltcan spray glue in multiple stages and adopts independent Counting.
Specification
Voltage: 380V/50Hz
Power: 9kw
Max Speed: 250pcs/min
Air Pressure: 0.6MPa(Dry and clean compressed air)
Materials: 60~150gsm (common paper, aluminum foil paper, laminated paper, dry wax paper ≤100gsm)
Machine Size: 1900x1800x1750mm
Floor Area: 4000x3500mm
Standard Configuration
1.Electric controller box
2.VC50 Vacuum Pump
3.Glue spread system(Nordson or Robatech)
4.Finished products collector
5. Mould l set
6. Blade 10 pcs
Packaging Information
| Case 1 |
1660x1220x1910mm |
| Net Wt. |
900kg |
| Gross Wt. |
950kg |
| Case 2 |
1460x760x630mm |
| Net wt. |
400kg |
| Gross Wt. |
450kg |

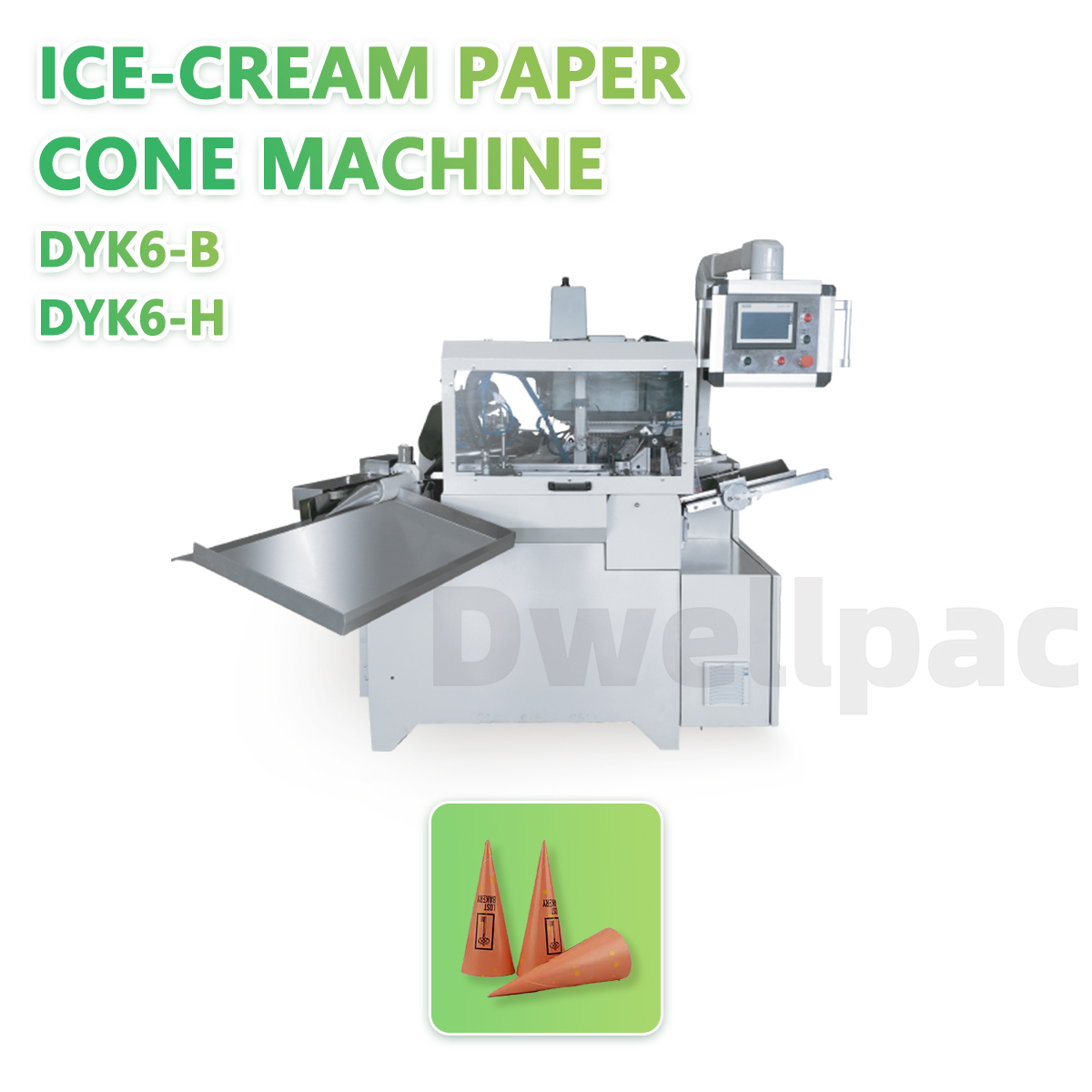

Ice-cream Paper Cone Machine
Differences Between DYK6-H and DYK6-B
| Type |
DYK6-H |
DYK6-B |
| Control |
Precision Encoder |
Ordinary Encoder |
| More accurate for feeding, forming and gluing than Ordinary encoder. |
| Transport |
Belt |
Chain |
| Belt is cleaner and will not be pulled long, chain replacement is simple,economical and practical; |
