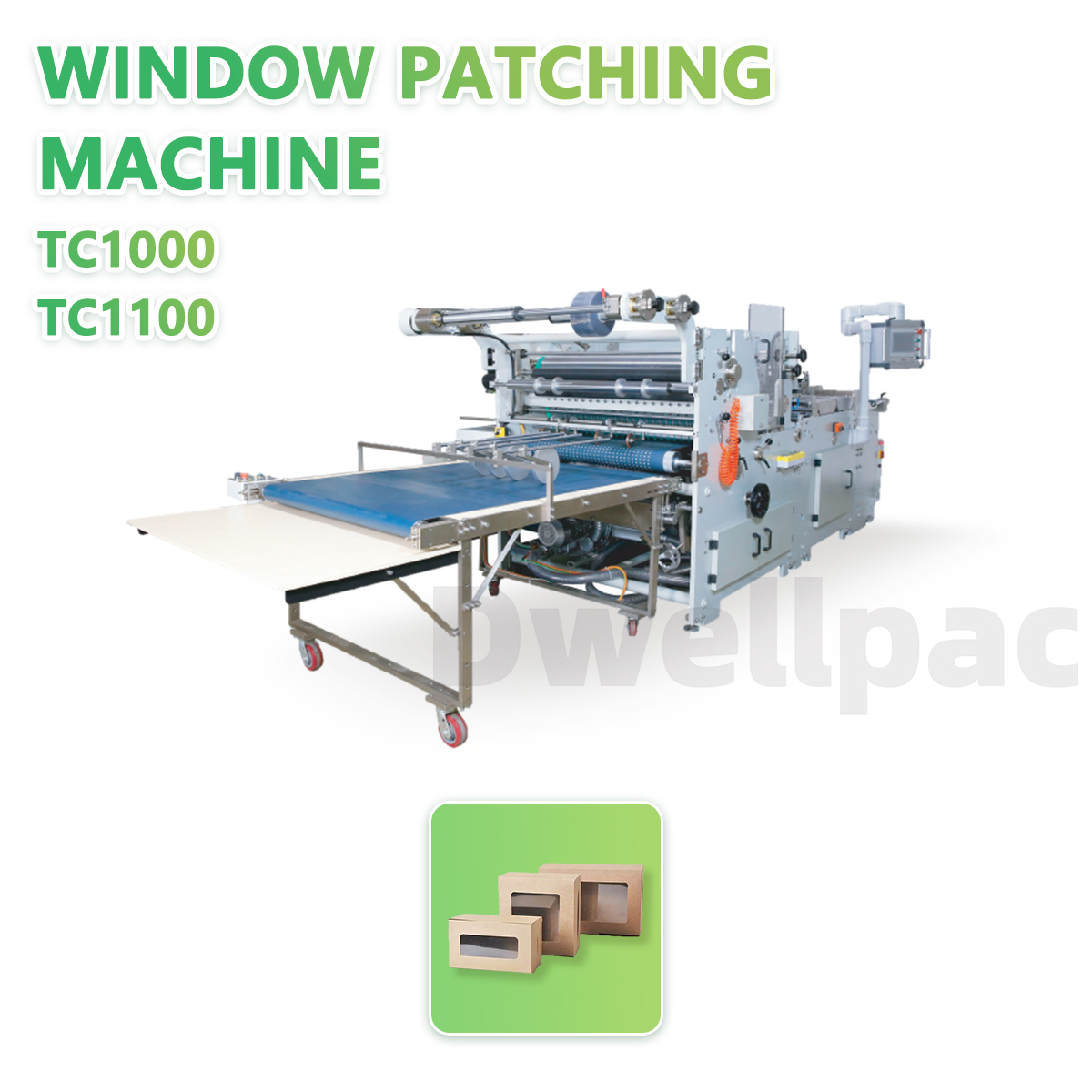

The TC1000 and TC1100 are fully automatic, high-precision window patching machines, representing the most advanced solution for applying clear film windows to gift boxes, tissue boxes, and various cartons. With a top speed of 400 pieces per minute (TC1100 dual-lane), they efficiently laminate PVC, PE, PS, or PET film onto cardboard and corrugated paper (200-600gsm). Utilizing servo control for film cutting and gluing, this machine solves the need for high-quality, transparent product display windows, combining operational ease with exceptional stability for consistent, professional results.
Single Lane & Double Lanes Fully Automatic Window Patching Machine is the most advanced model in the domestic market, specially designed for color boxes window lamination and other lamination processes, The humanized design philosophy pursuing perfection make this machine feature high efficiency, high precision, high stability and easy operation. This machine can be applied to cardboard and corrugated paper. lt adopts servo paper output, servo film cutting and servo control of gluing roller to realize the function of laminating the windows of tissue boxes, gift boxes, toy boxes, shirt boxes, milk cartons, etc.
Window Patching Machine TC1000,TC11000
Specification
Type
TC1100
TC1000
Working Mode
Single Lane
Double Lanes
Single Lane
Blank Length A
100~900mm
100~420mm
Blank Width B
80~1100mm
80~530mm
80~750mm
Window LengthC
80~760mm
80~280mm
Window Width D
30~940mm
30~380mm
30~550mm
Max Speed
200pcs/min
400pcs/min
200pcs/min
Carton Specification
Gram Weight
200g/㎡~600g/㎡
Thickness
Corrugated board paper with thickness ≤ 1.5mm or ≤ 4.0mm
Film Thickness
PVC, PE, PS
0.05mm~0.3mm
PET
0.05~0.2mm
Reel O.D.
≤ 500mm
Reel l.D.
75mm
70~80mm
Machine Specification
Size
5600x2000x1500mm
Main Motor Power
4KW
Total Power
22KW, 380V/50Hz
