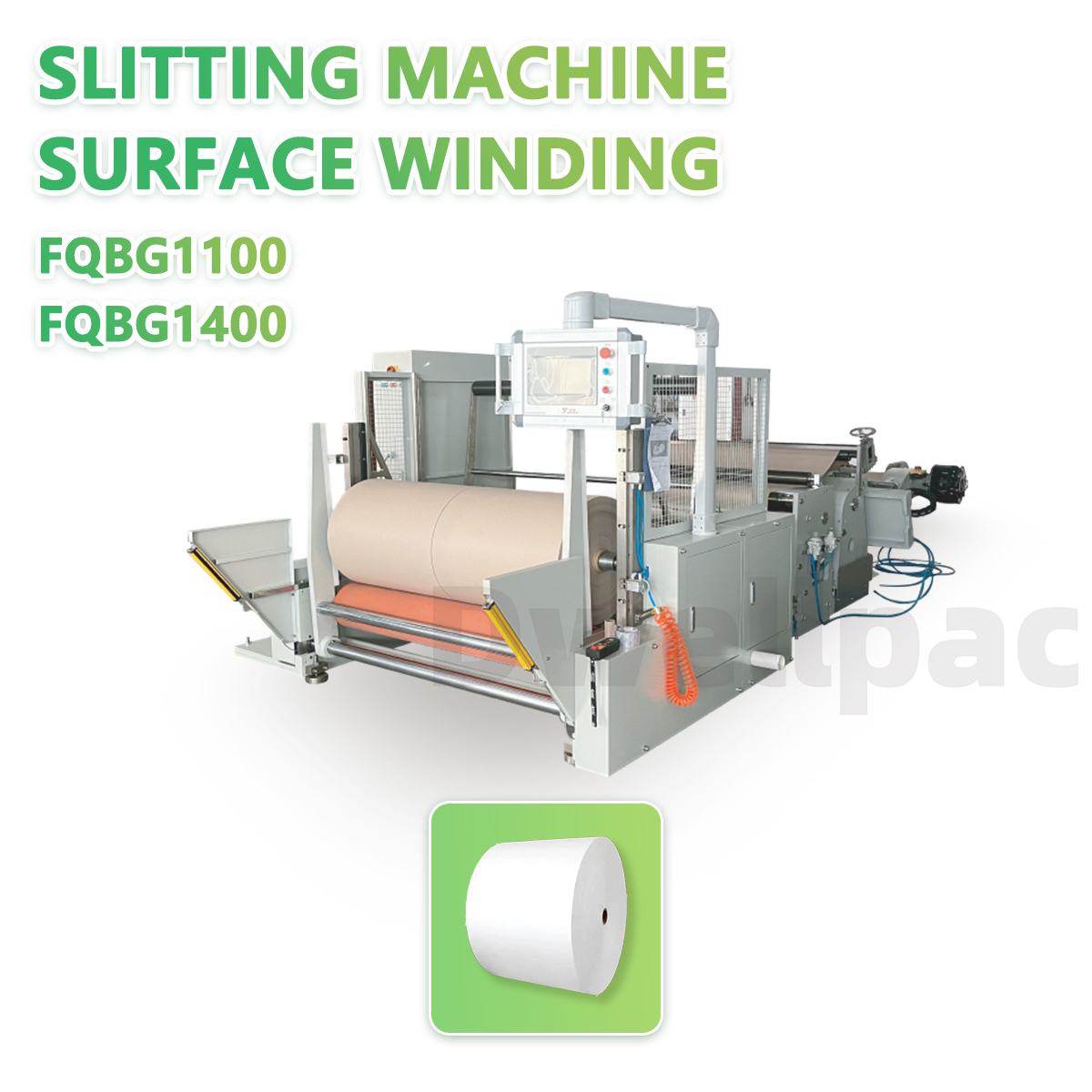

FQBG1100 & FQBG1400 Surface Winding Roll Slitting Machine
The FQBG1100 and FQBG1400 are high-speed surface winding slitting machines designed for efficient processing of kraft paper, cup paper, and other roll materials (40-300gsm). Operating at speeds up to 400 meters per minute, they ensure neat, tight rewinding essential for high-quality printing and packaging. Utilizing gravity surface rewinding and automatic tension control, these machines solve the challenges of achieving uniform rolls and precise slitting, streamlining production in paper mills and converting facilities. This makes them a reliable solution for maximizing roll material utilization and downstream production efficiency.
Roll Paper Slitting and Rewinding Machine is a high-performance model that relies on its own gravity surface to rewind, possessing the advantages of neat and tight slitting and winding. This machine is equipped with unwinding mechanism, automatic tension system, automatic deflection correcting system, automatic slitting surface motor winding system, wind power edge discharging device and hydraulic unloading mechanism, which is easy to operate and highly efficient. It' s suitable for the working occasions of printing and packaging enterprises such as slitting raw paper of paper mills and slitting unprinted or printed roll paper.
Slitting Machine FQBG1100,FQBG1400
Specification
Type
FQBG1100
FQBG1400
Voltage
380V/50Hz
Max Roll Diameter
1500mm
Max Rewinding Diameter
1500mm
Max Slitting Speed
400m/min
Slitting Precision
士0.4mm
Material
40~300gsm kraft paper, paper cup paper and other roll paper.
Minimum Web Width
50mm
Max Roll Width
1100mm
1400mm
Power
16kW
16kW
Size
5.5x2.1x1.8m³
5.5x2.4x1.8m³
Weight
3t
3.5t
