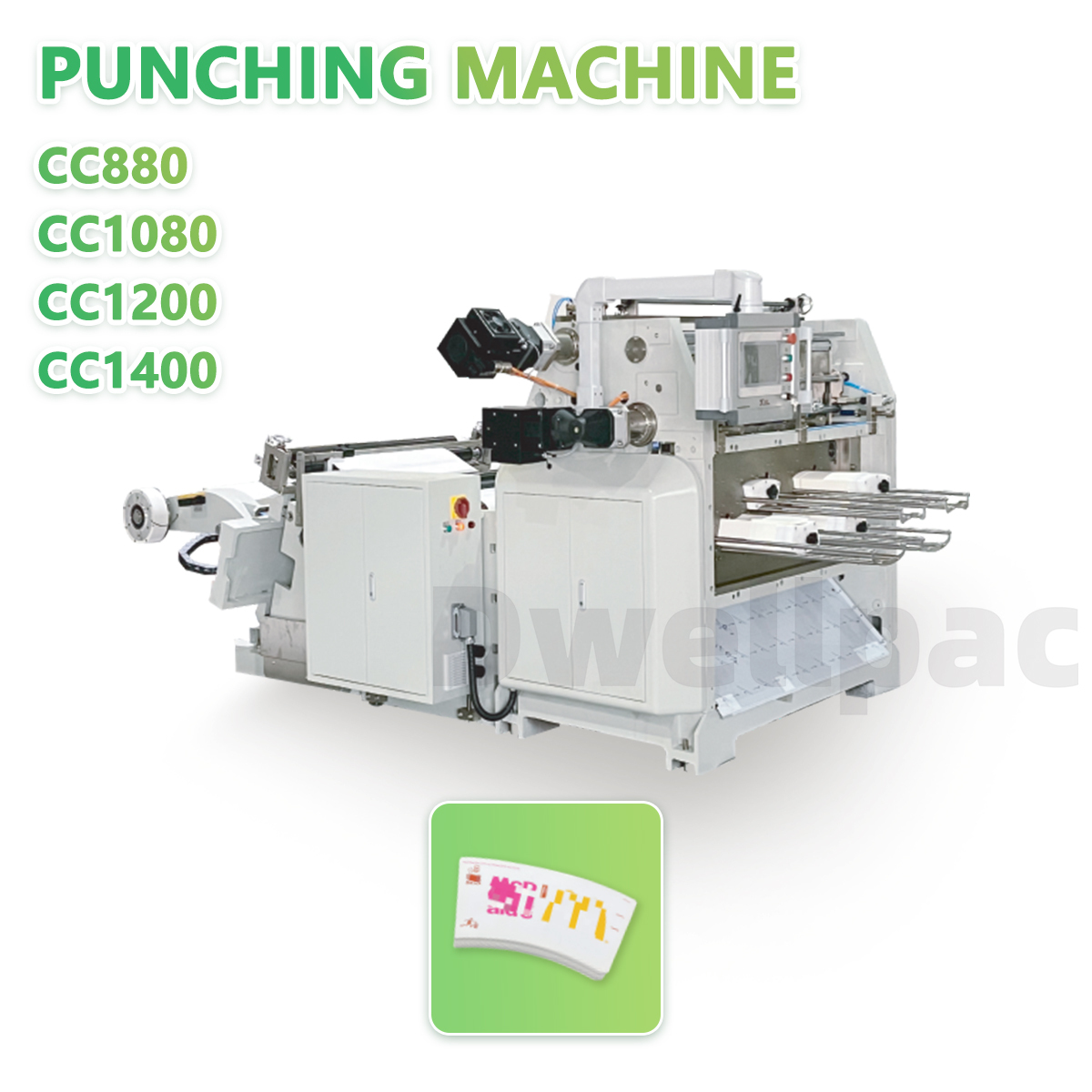

CC Series Heavy-Duty High-Speed Punching Machine for Cardboard

The CC Series (CC880, CC1080, CC1200, CC1400) is a line of heavy-duty, high-speed punching machines engineered for precision die-cutting of thick cardboard paper (80-400gsm) to produce blanks for items like paper cups and plates. With speeds ranging from 300 to 400 strokes per minute, this CE-certified series handles large web widths up to 1420mm. Featuring shaftless unwinding and servo control, it solves the need for efficient, high-volume, and precise blank production, streamlining the manufacturing process for disposable paper container packaging.
  • CC Series Heavy-Duty High-Speed Punching Machine for Cardboard,DWELLPAC,Punching Machine(for Thick Cardboard Paper) CC880, CC1080, CC1200, CC1400

Designed for Your Needs

for Thick Cardboard Paper
Punching Machine CC880, CC1080, CC1200 and CC1400 is designed and manufactured in accordance with high standards.
Our products have achieved CE certification and have been sold to many countries around the world. This model is suitable for die-cutting thick cardboard paper and other materials, to produce paper cup or paper plate blanks, etc.

Specification

Type CC880 CC1080 CC1200 CC1400
Voltage 380V/50Hz
Power 12kW 15kW
Max Speed 400strokes/min 380strokes/min 300strokes/min
Max Web Diameter Unwinding without shaft:1500mm ;standard:1200mm
Max Web Width 900mm 1100mm 1220mm 1420mm
Materials 80~400gsm
Punching Precision 士0.25mm
Max Punching Area 880x520mm 1080x520mm 1200x520mm 1400x520mm
Change Tool Time About one hour

Punching Machine CC880, CC1080, CC1200, CC1400



Main Configuration

1. Web guiding system
2. Print logo tracking system
3. Tension control system
4. De-curling system
5. Mould l set
6. Rexroth servo control system
CC880,CC1080,CC1200and CC1400 are shaftless unwinding.
Shaftless unwinding realizes deflection correction at the feeding.

Packaging Information

Type CC1400 CC880 CC1080 CC1200
Case 1 2250x1710x1905mm 2150x2050x1320mm 2250x1450x2170mm 16500x1150x650mm
Net Wt. 2550kg 3400kg 1996kg 2400kg
Gross Wt. 2700kg 3500kg 2048kg 2480kg
Case 2 1850x1790x1750mm 1850x1100x1270mm 1750x1750x1780mm 2300x1400x2270mm
Net Wt. 2250kg 800kg 1646kg 2400kg
Gross Wt. 2400kg 810kg 1698kg 2450kg
Case 3 2150x2050x1650mm 1900x1550x2100mm / 2150x1900x1520mm
Net Wt. / 1500kg / 2400kg
Gross Wt. / 1600kg / 2470kg
