for Aluminum Foil Paper and Copper Plate Paper
Punching Machine CC650 isdesigned and manufactured in accordance with high standards.Initially developed in China,our products have achieved CE certification and have been sold to many countries in the world, This machine can die-cut aluminum foil paper, copper plate paper and other materials with or with out embossing withhigh quality and efficiency.
Specification
| Voltage |
380V/50Hz |
| Power |
9kw |
| Max Speed |
400 strokes/min |
| Max Web Diameter |
1200mm |
| Max Web Width |
670mm |
| Materials |
80~400gsm |
| Punching Precision |
士0.25mm |
| Max Punching Area |
650x520mm² |
| Change Tool Time |
About one hour |
Main Configuration
1 .Web guiding system
2. Print logo tracking system
3. Tension control system
4. De-curling system
5. Mould 1 set
6. Rexroth servo control system

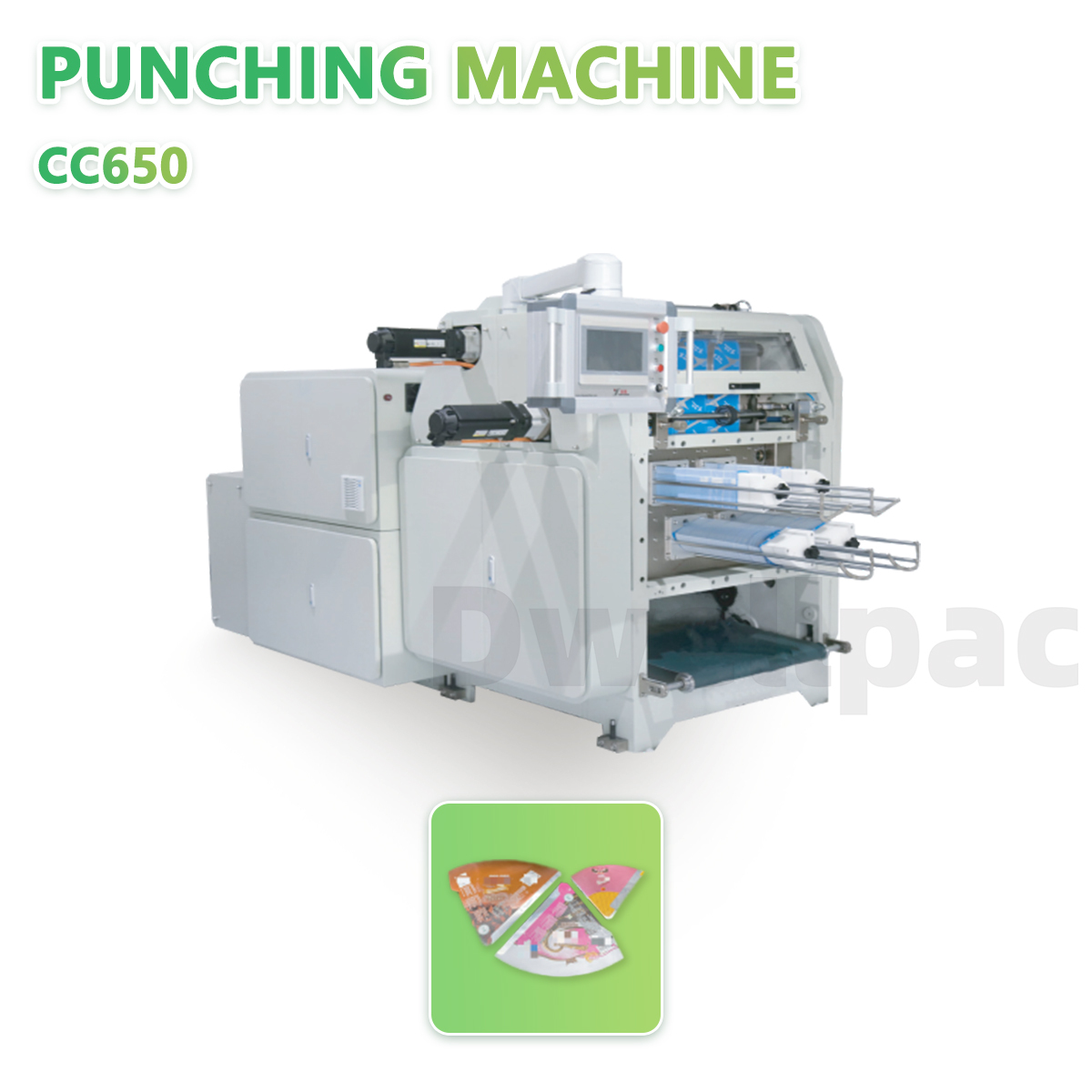

Punching Machine CC650
Embossing Device Option
1. independent double servo motor embossing device (smart embossing).

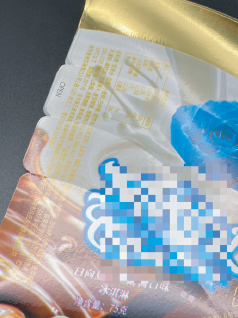

2. CC650 also has a specially designed embossing function. lt can emboss several indentations as shown。

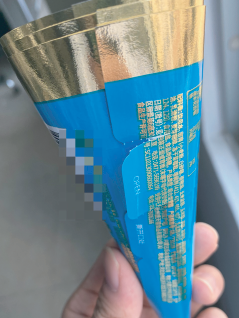

3. in the picture above to make it easy for consumers to tear open the paper sleeve of ice-cream cone.
Packaging Information
| Case1 |
Net Wt. |
Gross Wt. |
| 2060x1660x1750mm |
1950kg |
2000kg |
| Case2 |
Net Wt. |
Gross Wt. |
| 1810x1560x2120mm |
1900kg |
1950kg |
