for Aluminum Foil
Punching Machine CC450 is designed andmanufactured in accordance with high standards.Our products have achieved CE certification and have been sold to many countries in the world.This machine can die-cut aluminum or paper covers with or without embossing with efficiency and high quality.
Specification
| Voltage |
380V/50Hz |
| Power |
9kw |
| Max Speed |
400 strokes/min |
| Max Web Diameter |
600mm |
| Max Web Width |
520mm |
| Materials |
0.035~0.15mm aluminum foil, 60~250gsm common paper, 0.1~0.3mm film. |
| Punching Precision |
士0.25mm |
| Max Punching Area |
490x300mm² |
| Change Tool Time |
About one hour |
Main Configuration
1 .Web guiding system
2. Print logo tracking system
3. Tension control system
4. De-curling system
5. Mould 1 set
6. Rexroth servo control system

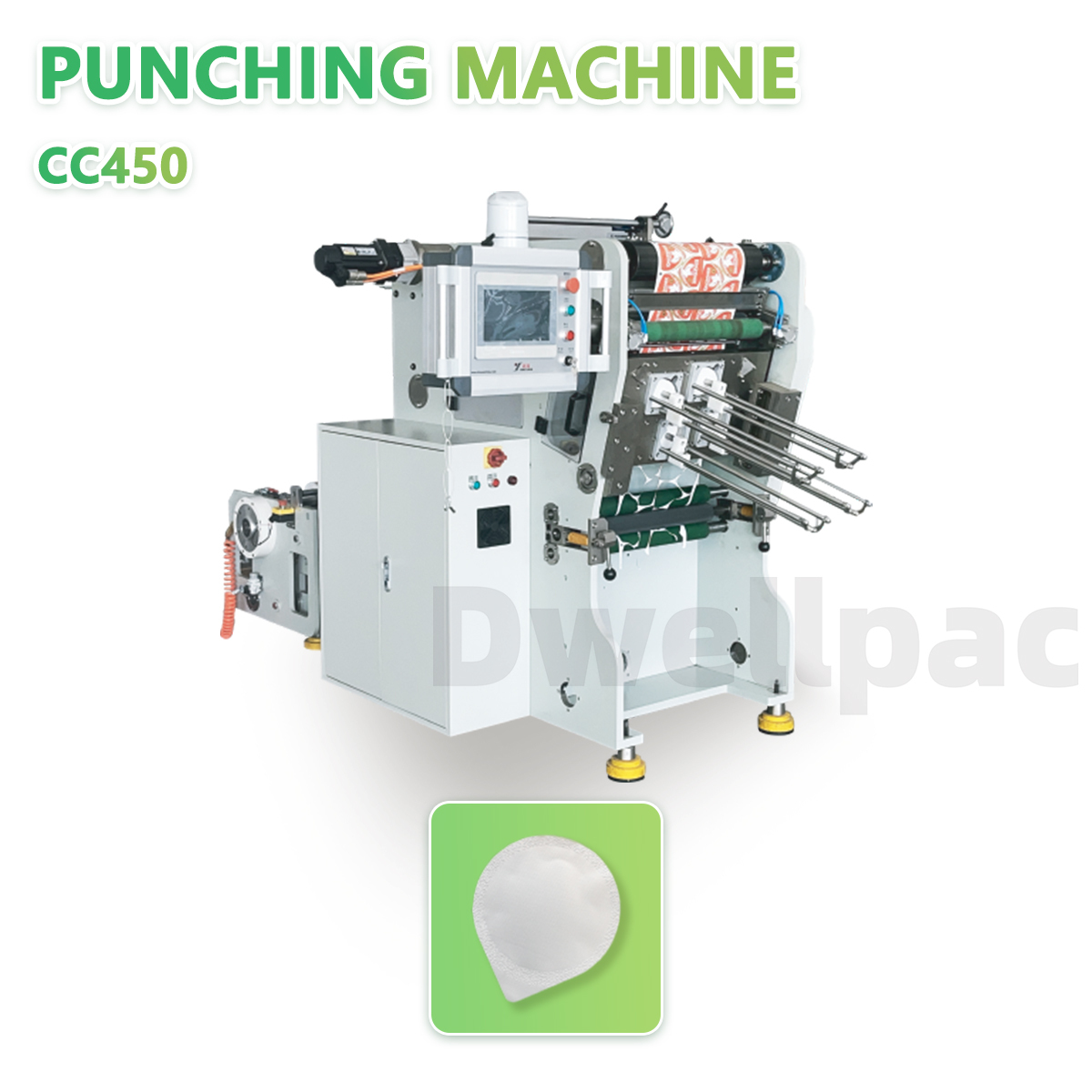

Punching Machine CC450
Embossing Device Option
1. Common motor embossing (simple full format embossing, figure l, 2).
2. Independent single servo motor embossing device (full format embossing, figure1, 2).
3. Independent double servo motor embossing device (smart embossing, figure 3).
Packaging Information
| Case |
Net Wt. |
Gross Wt. |
| 2500x1550x2050mm |
2350kg |
2550kg |
