CCY Series Flexographic Printing and Punching Machine
The CCY Series is an integrated flexographic printing and punching machine designed for streamlined paper cup manufacturing. It combines a precise 2 or 4-color flexo printing unit with a high-speed die-cutting unit, delivering speeds up to 400 strokes per minute. This efficient machine handles paper materials (100-380gsm) to print and punch cup blanks in one continuous process, complete with automatic waste removal. With premium components like Rexroth servo drives, it solves the need for high-volume, high-quality production by reducing labor and streamlining operations.
CCY650/2-A, CCY650/4-A, CCY1080/2-A,CCY1080/4-A, CCY1200/2-A, CCY1200/4-A This series of punching machine with Flexographic Printing is specially designed for paper cup manufactures, consisting of 4-color flexographic printing unit and die-cutting unit with higher cutting accuracy, high speed of die-cutting and automatic waste cleaning saving much human cost. With so many advantages, this machine is the best choice for paper cup manufactures. The main electrical components are all adopted from the top brands such as Rexroth servo control system and frequency converter as well as Siemens PLC, insuring the stable performance and high efficiency. The number after /in the model code indicates the number of printing colors.
Main Configuration
1. Web guiding system 2. Tension control system 3. Hydraulic lifting devices 4. De-curling system 5. Color mark tracking system

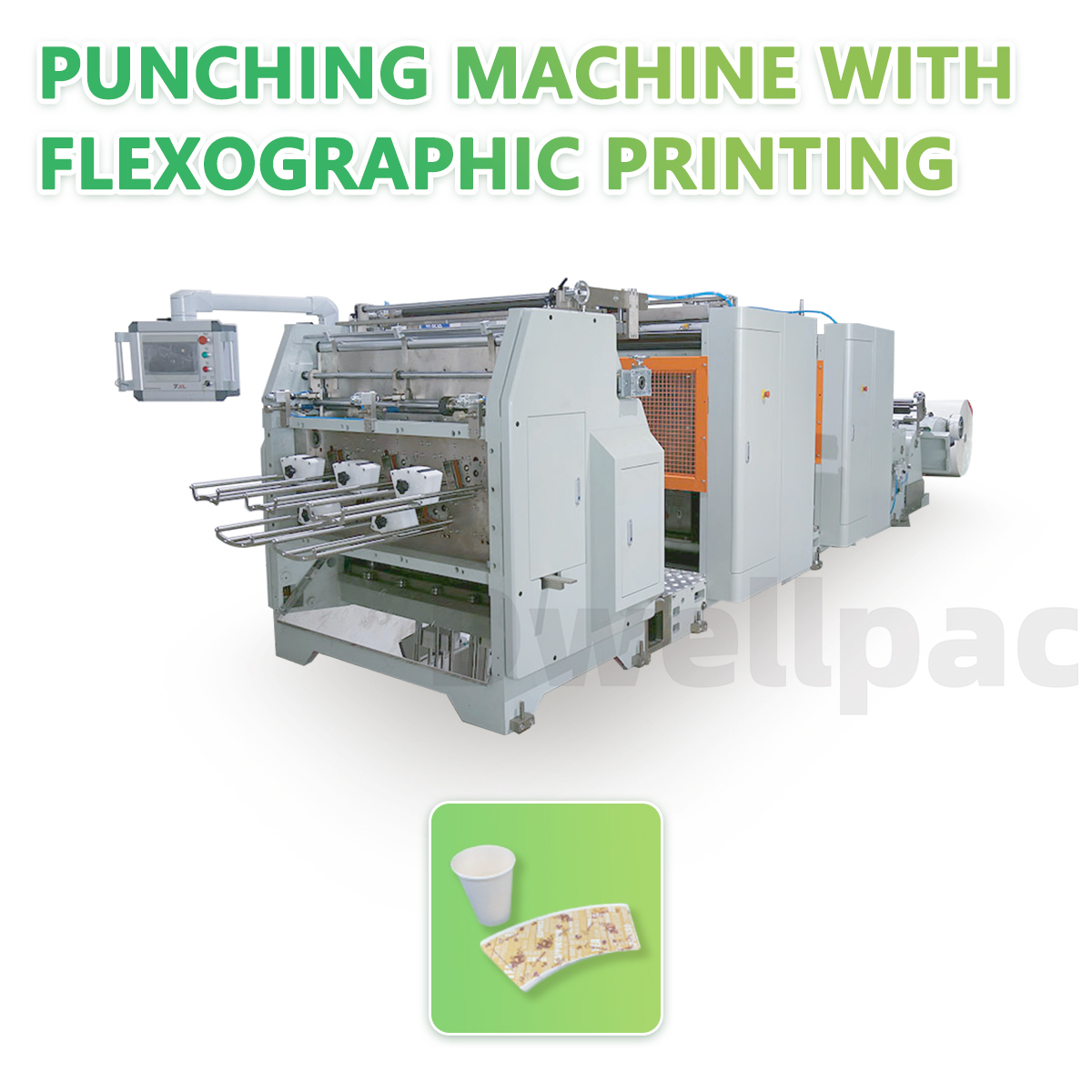

Punching Machine with Flexographic Printing
Specification
Machine Type
CCY650/2-A
CCY650/4-A
CCY1080/2-A
CCY1080/4-A
CCY1200/2-A
CCY1200/4-A
Floor Area
8800x4070mm
10500x4070mm
8700x4500mm
10500x4500mm
8800x4700mm
10500x4700mm
Voltage
380V/50Hz
Total Power
22kW
35kW
30kw
40kw
35kW
45kW
Max Roller Diameter
1500mm
Max Roller Width
670mm
1100mm
1200mm
Material
100~380gsm
120~380gsm
Punching Precison
士0.25mm
Max Punching Area
650x520mm
1080x520mm
1180x520mm
Max Punching Speed
400strokes/min
350strokes/min
Number of Teeth for Printing Gear
110 ≤Z< 160
Metric Printing Roller Perimeter
345.5752~502.6548mm(CP=π)
lmperial Printing Roller Perimeter
349.25~508mm(CP=3.175)
Max Printing Width
630mm
1060mm
1180mm
Machine Wt.
6t
7t
6t
7t
7t
8t
