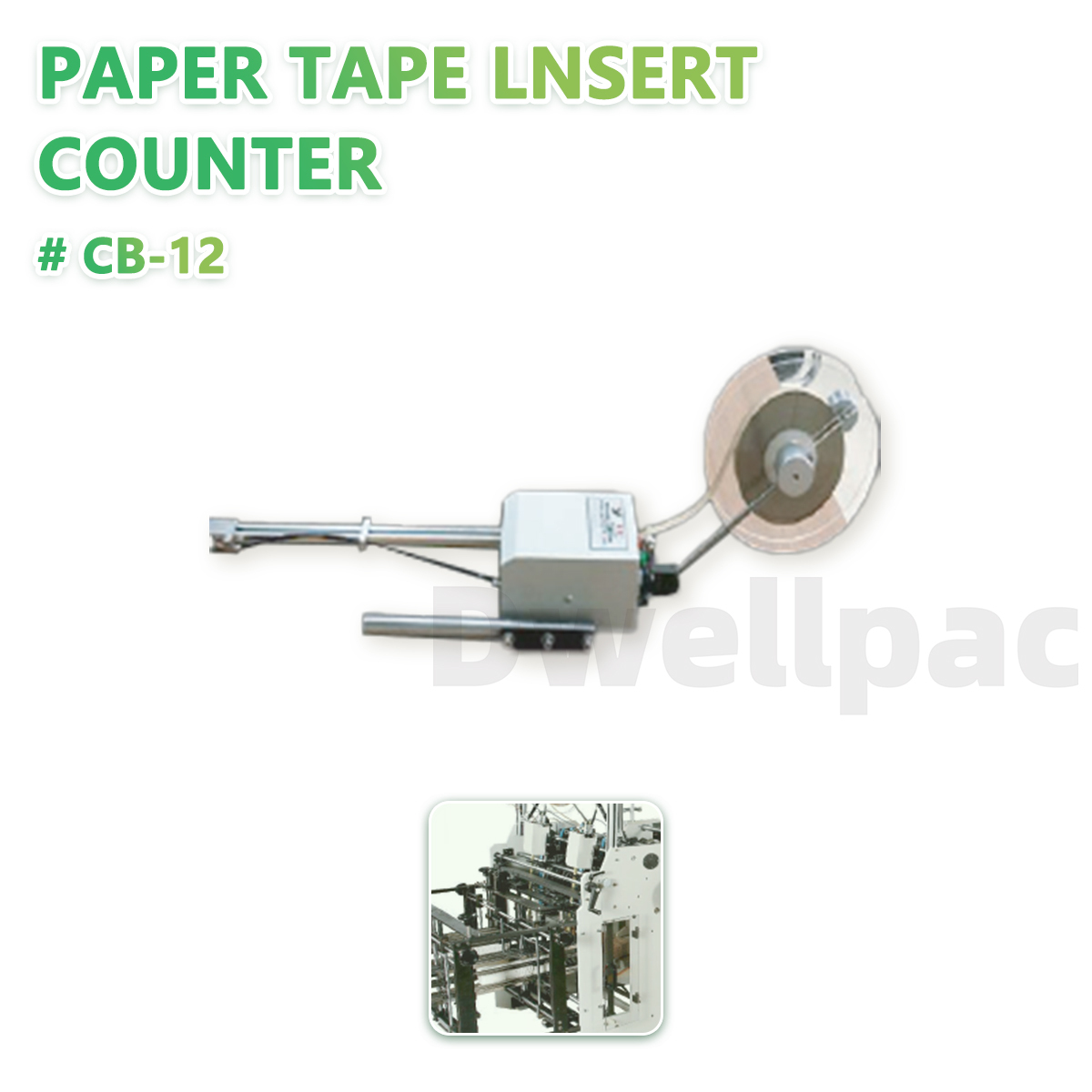

CB-12 Automatic Counting Paper Tape Insertion Counter

The CB-12 is an automatic counting machine that inserts numbered paper tape for precise batch identification. It operates at speeds up to 400 pieces per minute, using standard 12mm wide, 148gsm brown kraft paper tape. This compact device automates the counting and labeling process, solving the need for accurate, high-speed piece counting and eliminating manual tallying errors on production lines. It provides a reliable, automated solution for streamlining end-of-line packaging operations and quality control checks.
  • CB-12 Automatic Counting Paper Tape Insertion Counter,DWELLPAC,Paper Tape lnsert Counter # CB-12

Designed for Your Needs

Specification

Machine type CB-12
Power 230V AC, 50/60Hz, 1 phase AC 2A
Dimension 100mm(H)X183mm(L)X112mm(w)
Entirety Dimension 280mm(H)X915mm(L)X170mm(w)
Guide Slot Dimension 433mm
Noise <76db(A)
Net Weight 8kg
Paper Length for feeding 20~150mm
Labeling Paper Wdith 12mm, 148gsm Brown kraft paper
Max Diameter of Labeling Paper Ф160mm,Ф60mm
Max Counting Speed 400pcs/min, Actual speed depends on product specification
Counting Times Scope 2~999
Labeling Paper Cut-off delay Delay2 counting numbers or 5 seconds delay for cut-off
