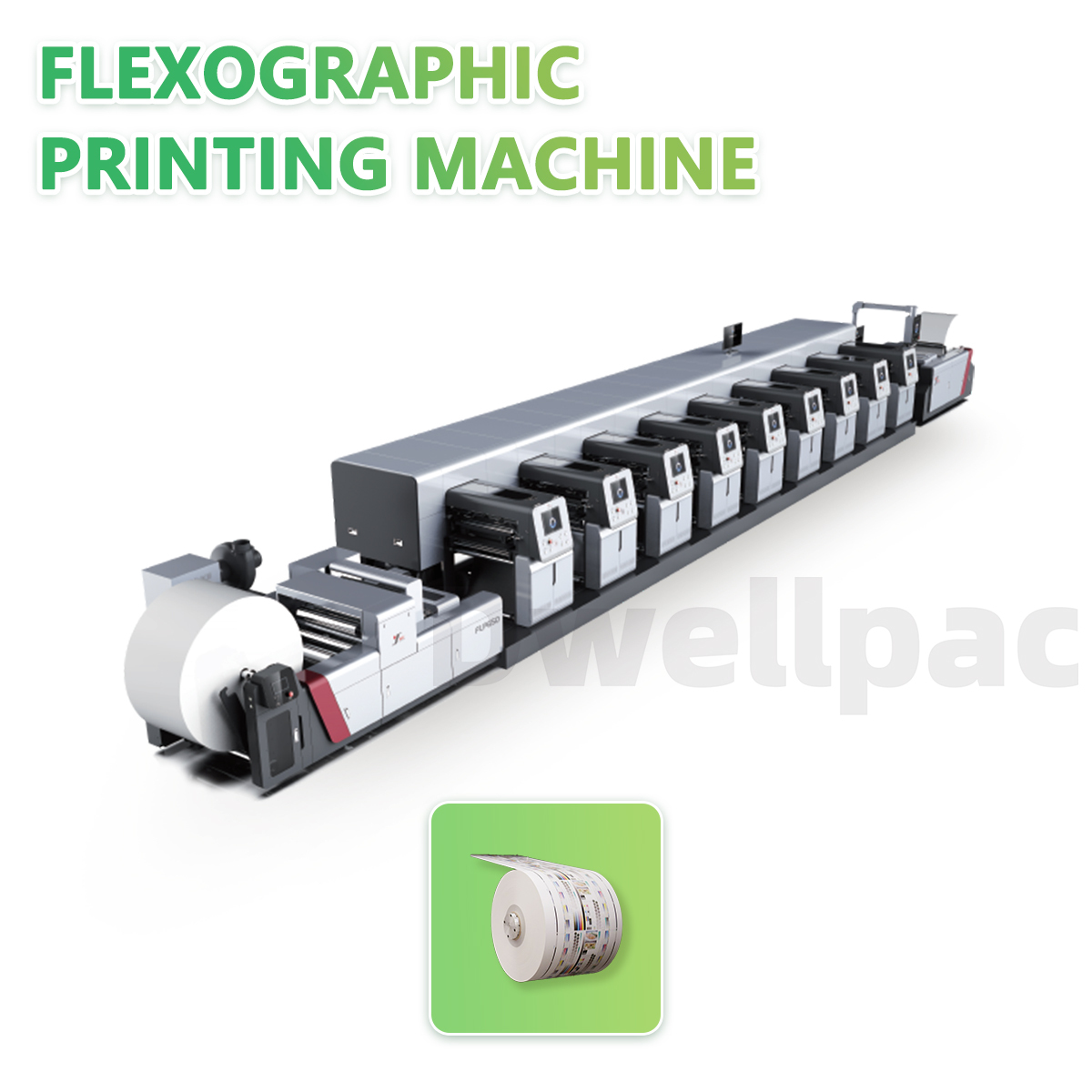

The FLP650 flexographic printing machine features a petal-type structure, designed for simplicity,durability, and ease of use. lt operates at high speeds with consistent stability,driven by a servo svstem that ensures precise printing alignment and convenient parameter adjustments.The machine is compatible with a wide range of materials, including regular paper, kraft paper, coated paperplastic films, aluminum foil, and various composite materials, making it ideal for diverse printing applications.
Main Configuration
| 1. Unwindinginstitution |
6. Infrared & heated air drying method |
| 2. Web guiding system |
7. Rexroth servo control system |
| 3. Tension control system |
8. Ceramic anilox roller |
| 4. Hydraulic lifting devices |
9. Winding institution |
| 5. Printing unit(Shaftless transmission) |
|
Optional: Corona device & Dust removal device、UVlamp and Water-cooling device.
Flexographic Printing Machine FLP650-A--FLP650/12-A
Specifications
Sheet1:With FLP650/7-A as reference
| Voltage |
Air Pressure |
Unwinding
Dia./Max |
Winding
Dia./Max |
Max Roller Width |
Max tension |
Material |
Max Resolution |
Printing Precision |
Max printing width |
Max speed |
lmperial Printing Roller Perimeter |
| 380V/50Hz |
0.55Mpa |
1200mm |
1200mm |
650mm |
400N |
Aluminum foil,plastic aluminum foil paper,coated paper,white kraft pаper |
175LPI |
±0.1mm |
625mm |
150m/min |
90T-160TCP=3.175mm |
|
Unwinding and Plaiting |
Corona |
Dust removal |
Printing Unit/piece |
UVlamp + Water-cooling |
Air cooling and rolling |
| Power kw |
10 |
8 |
0.05 |
22 |
8 |
10 |
| weight T |
1 |
0.4 |
0.2 |
0.75 |
0.2 |
1.55 |
| Floor area ㎡ |
4 |
0.3 |
0.5 |
2.5 |
0.078+0.8 |
5.1 |
Max tension: 400N(lf you have any special needs ,please consult with sales)
Other options
|
Corona |
Dust removal |
UV lamp |
Water-cooling
device |
| Voltage |
380V/50Hz |
- |
380V |
220V-240V |
| Power |
9kw |
- |
5.6kw |
2.4kw |
| Air Pressure |
0.55Mpa |
0.55Mpa |
- |
- |
NOTE:
1. Tension demand will cause power changes, if there is a special need,please confirm in advance.
2.The above parameters are standard machine model parameters.
3. The total power is the sum of the options.
4. The total weight and floor space are also the sum of the above options.
