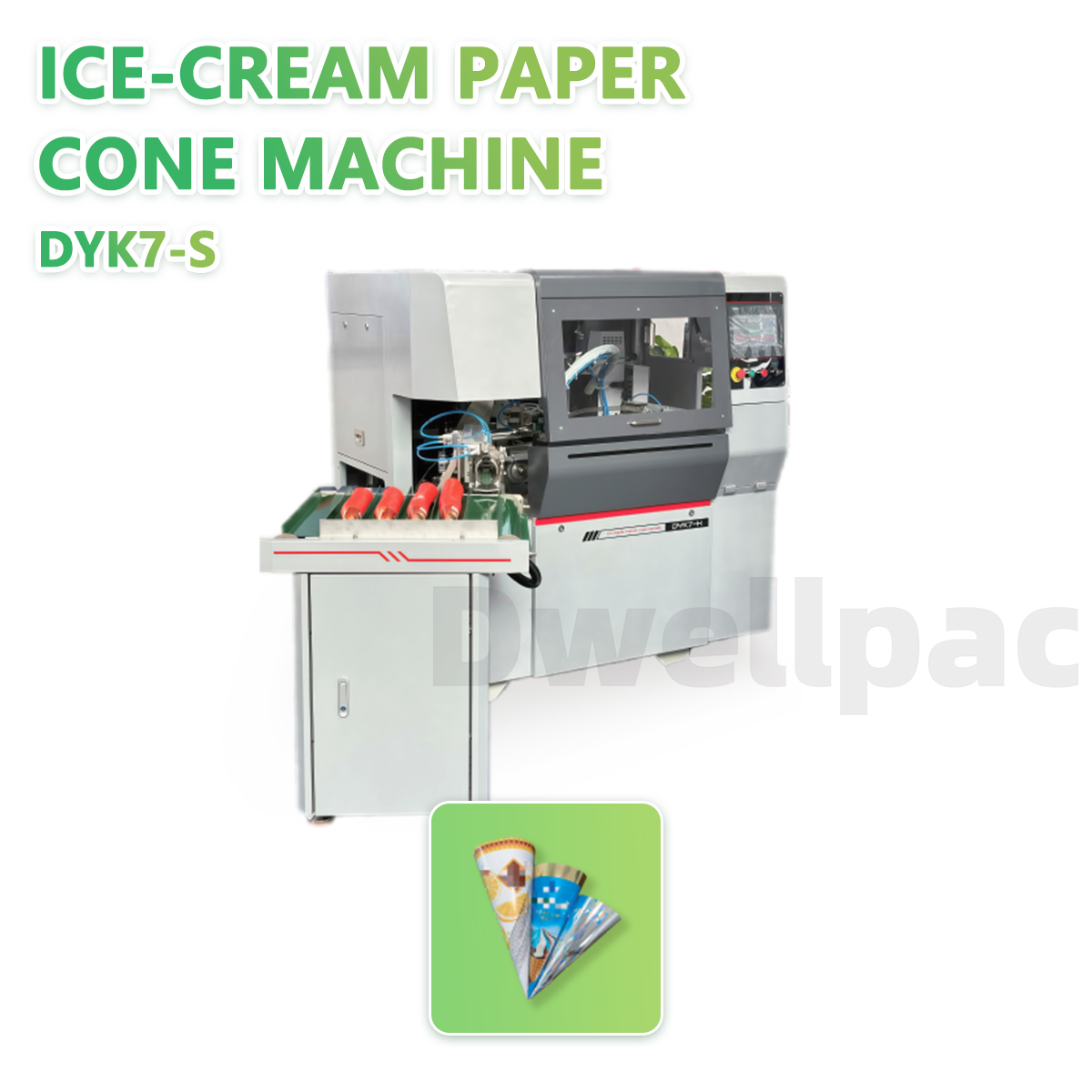

DYK7-H/S Servo-Controlled High-Speed Ice Cream Paper Cone Machine

The DYK7-H/S is a servo-controlled ice cream paper cone machine, representing China's first CE-certified model in its category and serving clients globally. Engineered for high-volume production, it achieves speeds of up to 350 pieces per minute and handles various paper types from 60 to 150 gsm. This machine ensures efficient, high-quality cone production with features like multi-stage glue spraying and independent column counting, making it an ideal solution for durable and consistent paper cone manufacturing.
  • DYK7-H/S Servo-Controlled High-Speed Ice Cream Paper Cone Machine,DWELLPAC,DYK7-H Ice-cream Paper Cone Machine
  • DYK7-H/S Servo-Controlled High-Speed Ice Cream Paper Cone Machine,DWELLPAC,DYK7-H Ice-cream Paper Cone Machine

Designed for Your Needs

Type of Servo control
Dayuan servo control type lce-cream Paper Cone Machine is the first of its kind in China, which is designed and manufactured according to high standards and have achieved CE certification and have been exported to many countries and regions.
The machine can produce ice-cream with high speed, quality and efficiency.lt can spray glue in multiple stages and adopts independent counting like 100pcs for 1 column.Specification
Voltage: 380V/50Hz 3P(Three -phase five-wire)
Total Power: 1OKW
Max Speed: 300~350pcs/min
Air Pressure: 0.6MPa (dry & clean compressed air)
Material: 60~150gsm (Common paper,Aluminum Foil paper,coated paper 60-150gsm,Dry Waxpaper 100gsm)
Machine Size: 2700x2150x1800mm
Floor Area: 4000x3500mm

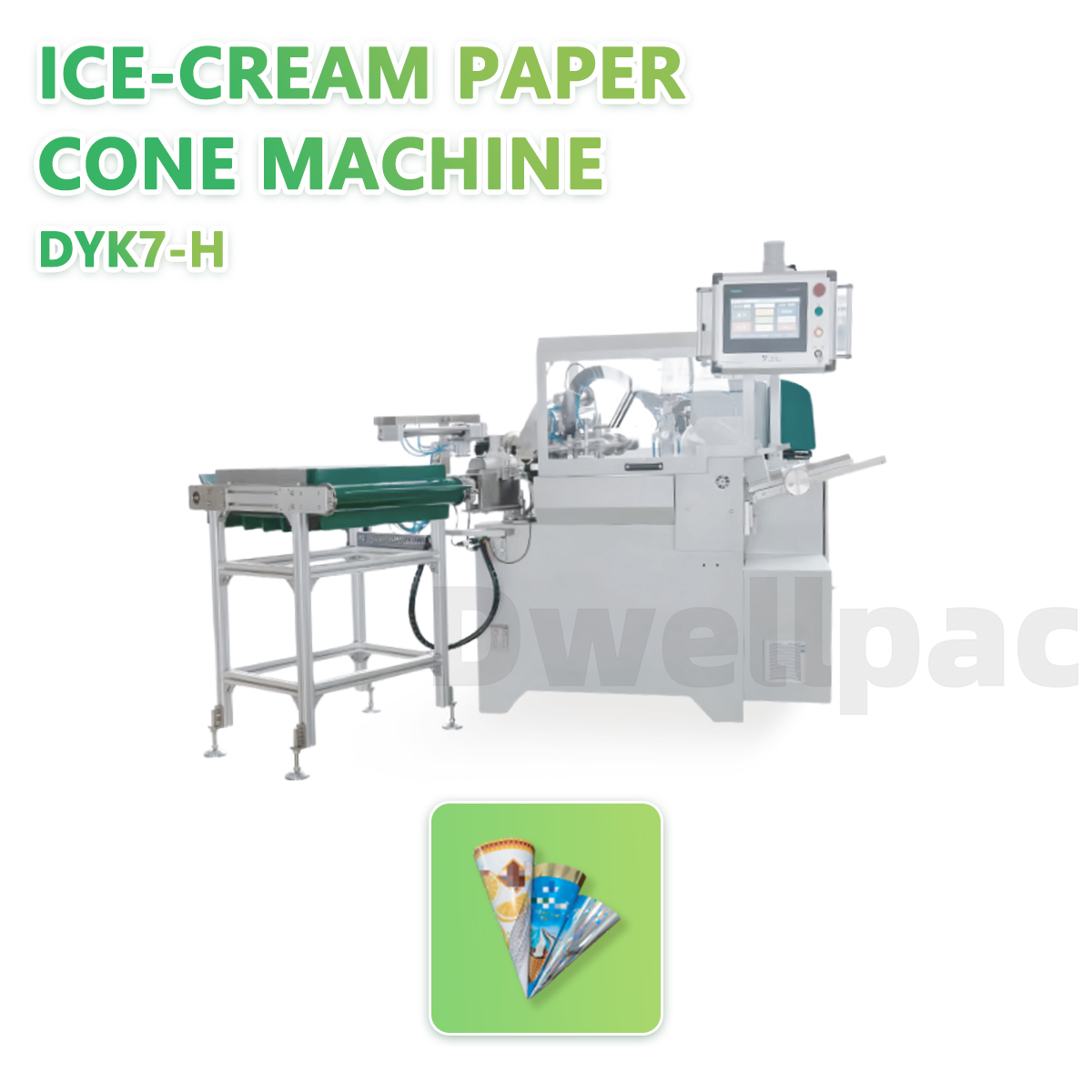

Ice-cream Paper Cone Machine DYK7-H

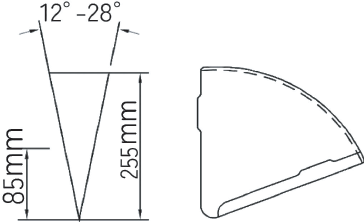

28°-40.5° Need to customize

Standard Configuration

1. Electric controller box
2. VC50 Vacuum Pump
3. Four servo controllers
4. Four servo motors
5. Mouldl set
6. Blade 10 pcs
7. Finished products collector
8. Hot melt glue system(Robatech)

Packaging Information

Case 1 1850x1550x1910mm
Net Wt. 998kg
Gross Wt. 1048kg
Case 2 1350x1000x1260mm
Net wt. 157kg
Gross Wt. 207kg
