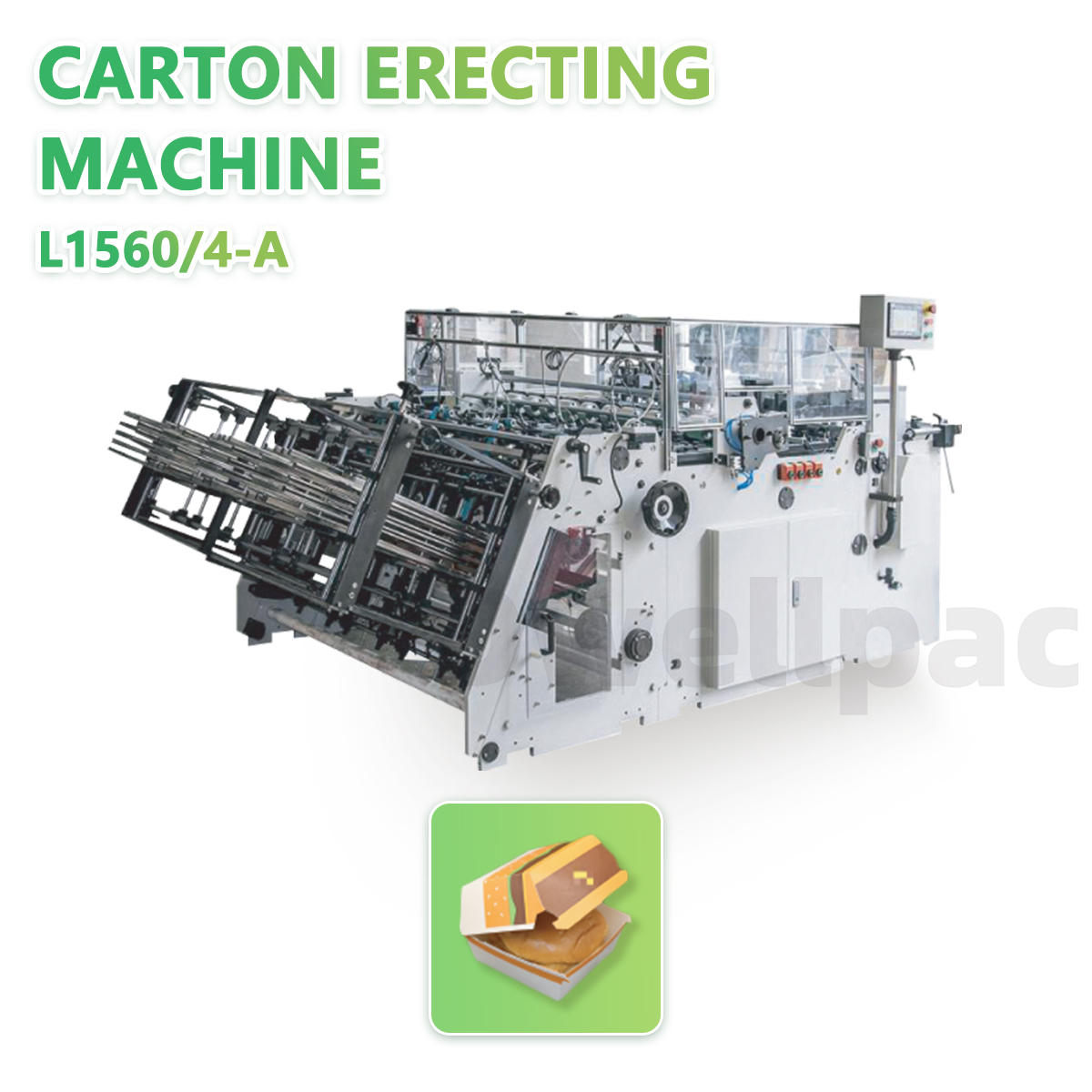

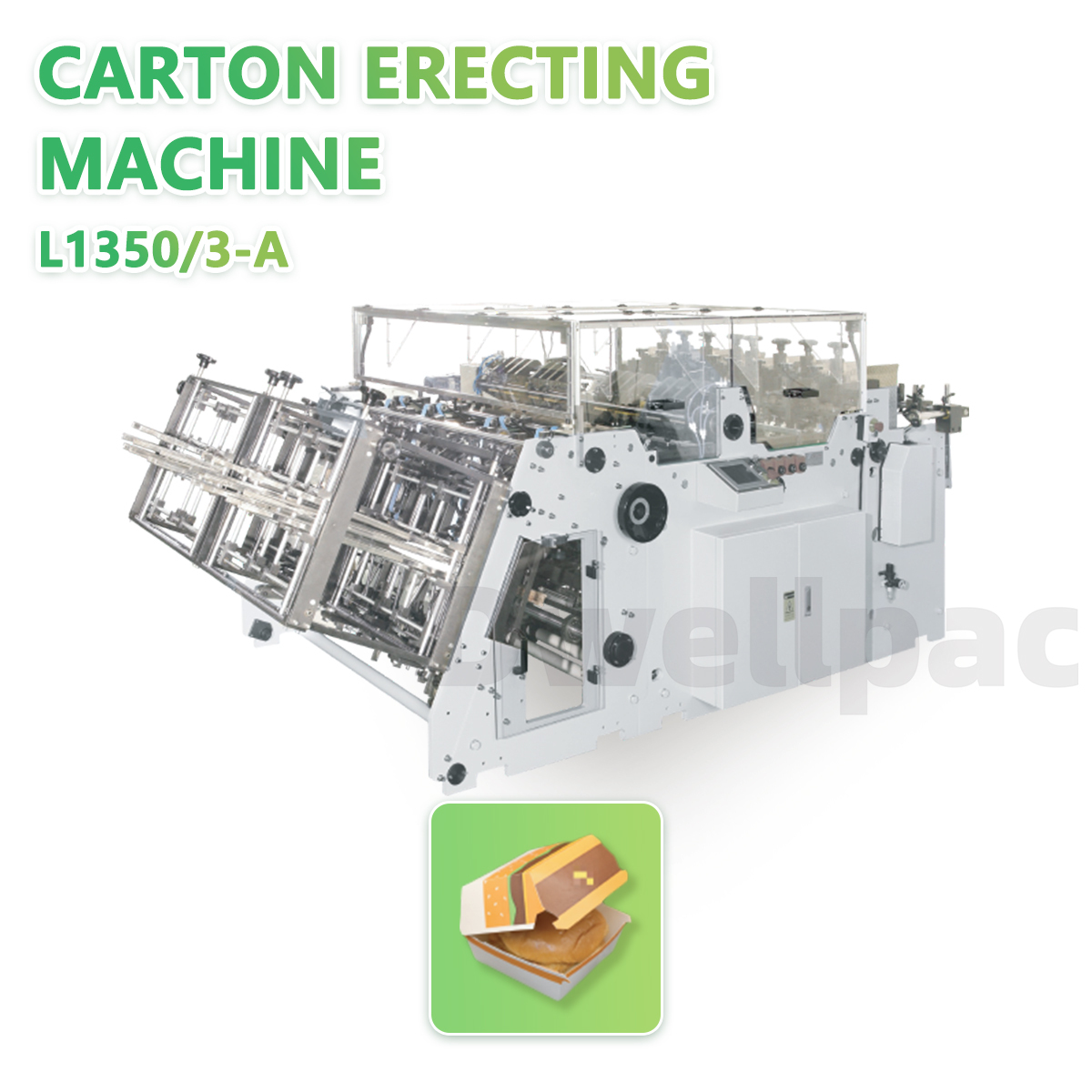

The L1350/3-A and L1560/4-A are high-efficiency, multi-lane carton erecting machines designed for ultra-high-volume production lines. The triple-lane L1350/3-A achieves speeds up to 600 cartons per minute, while the quadruple-lane L1560/4-A boosts output to 800 per minute, dramatically increasing packaging throughput. They reliably form a wide range of box sizes from paperboard (200-600gsm) and corrugated board. This CE-certified series is the ideal solution for businesses needing to eliminate production bottlenecks and achieve maximum efficiency in large-scale, automated packaging operations.
Dayuan Carton Erecting Machine is designed and manufactured according to high standards, stable, efficient, clean, sanitary, cost saving and environmentally friendly.lt is the leading model in China and has achieved CE certification. The servo motor can be placed vertically to save space.
Carton Erecting Machine Triple / Quadruple Lanes
Machine Type
Blank Length
Blank Width
Side Flaps
Slide Flaps + Lid
Conicity
L
B
H
H1
H2
5~40°
1350/3-A
100~450mm
100~395mm
15~230mm
50~230mm
260mm
1560/4-A
100~330mm
※Note: The height above 230mm needs to be customized. above H2.260mm
Specification
Type
L1350/3-A
L1560/4-A
Voltage
380V/50Hz
Total Power
10kW
Air Pressure
Dry and clean air 0.6MPa
Materials
Paper board of 200~600gsm; Corrugated board paper with thickness ≤ 1.5mm.
Covering Area
6000x3050mm
4000x2600mm
Max Speed
600pcs/min
800pcs/min
Packaging Information
L1350/2-A
3000x1550x1630mm
Net Wt.
1950kg
Gross Wt.
2400kg
1710x700x960mm
Net Wt.
400kg
Gross Wt.
470kg
L1350/3-A
3000x2050x2030mm
Net Wt.
2300kg
Gross Wt.
2550kg
1800x800x970mm
Net Wt.
250kg
Gross Wt.
350kg
L1560/4-A
3000x2200x1880mm
Net Wt.
2400kg
Gross Wt.
2650kg
1880x770x990mm
Net Wt.
300kg
Gross Wt.
350kg
