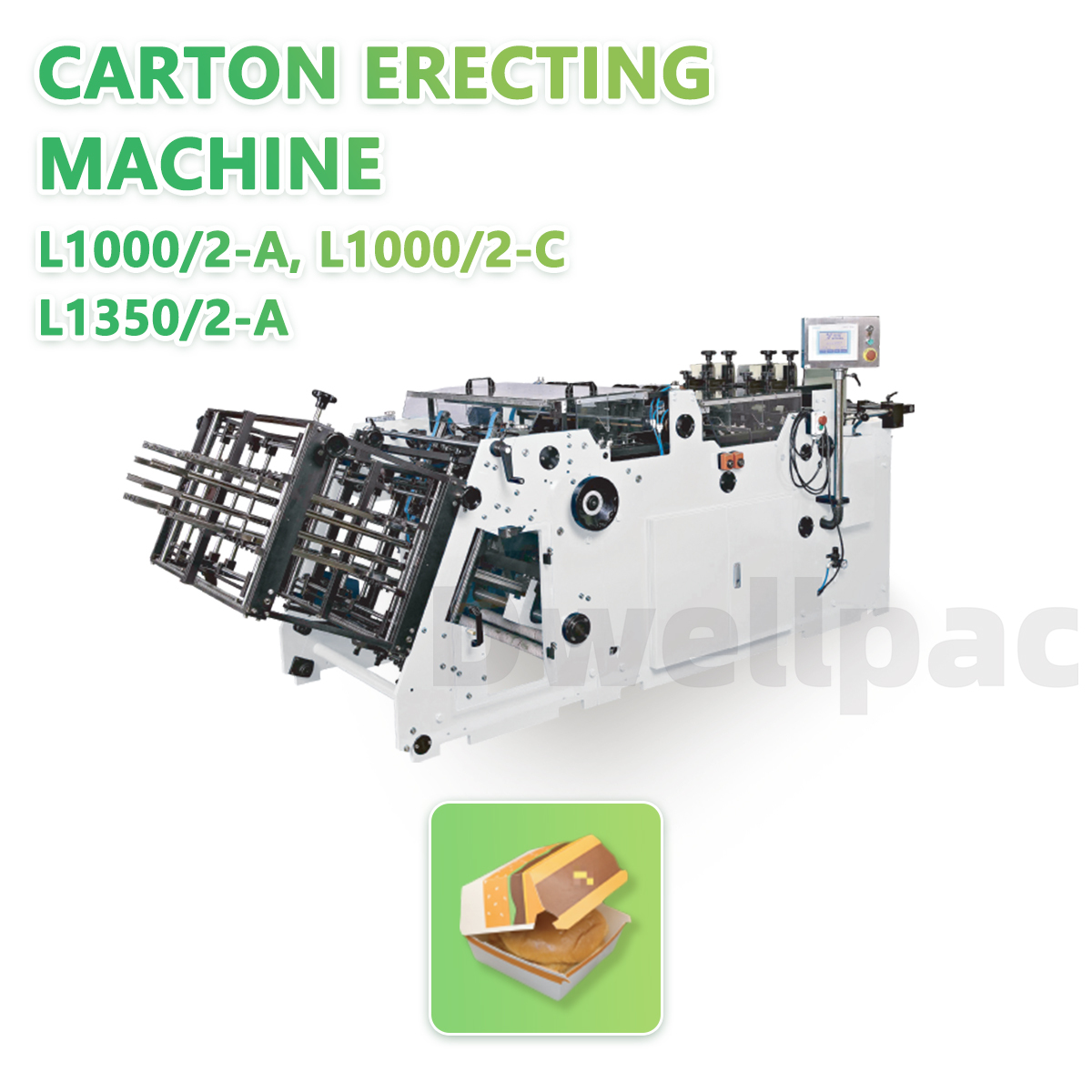

L1000/2 Series High-Speed Dual-Lane Carton Erecting Machine
The L1000/2 Series is a high-speed dual-lane carton erecting machine designed for fully automated, high-volume packaging lines. Capable of forming up to 400 cartons per minute, it efficiently processes paperboard (200-600gsm) and corrugated board, automating the setup of a wide range of box sizes. This series offers flexible production modes: the L1000/2-B model can run two different box styles simultaneously, while the servo-controlled (A/B) and mechanical (C) options provide tailored solutions for precision or economy, maximizing throughput and saving labor in your packaging operation.
Double Lanes The servo motor (optional configuration) can be placed inside the machine to save place. L1000/2-B is equipped with 3 servo motor by default, L1000/2-A can be equipped with 1 or 3 servo motor while L1000/2-C has no servo motor.
Carton Erecting Machine Double Lanes
Blank Length
Blank Width
Side Flaps
Slide Flaps + Lid
Conicity
L
B
H
H1
H2
5~40°
100~450mm
100~450mm
15~230mm
50~230mm
260mm
L1350/2-Ais suitable for blank width up to 620mm. *Note: The height above 230mm needs to be customized, above H2, 260mm
Specification
Type
L1000/2-A,L1350/2-A
L1000/2-B
L1000/2-C
Voltage
380V/50Hz
Total Power
8kW
11kW
5kW
Air Pressure
Dry and clean air 0.6MPa
Materials
Paper board 200~ 600gsm (L1000/2-A is 150~ 400gsm); Corrugated board paper with thickness ≤ 1.5mm.
Covering Area
6000x2800mm
Max Speed
400pcs/min
Differences Between L1000/2-A, B or C
L1000/2-A
Produce same boxes on the 2 lanes at the same time.

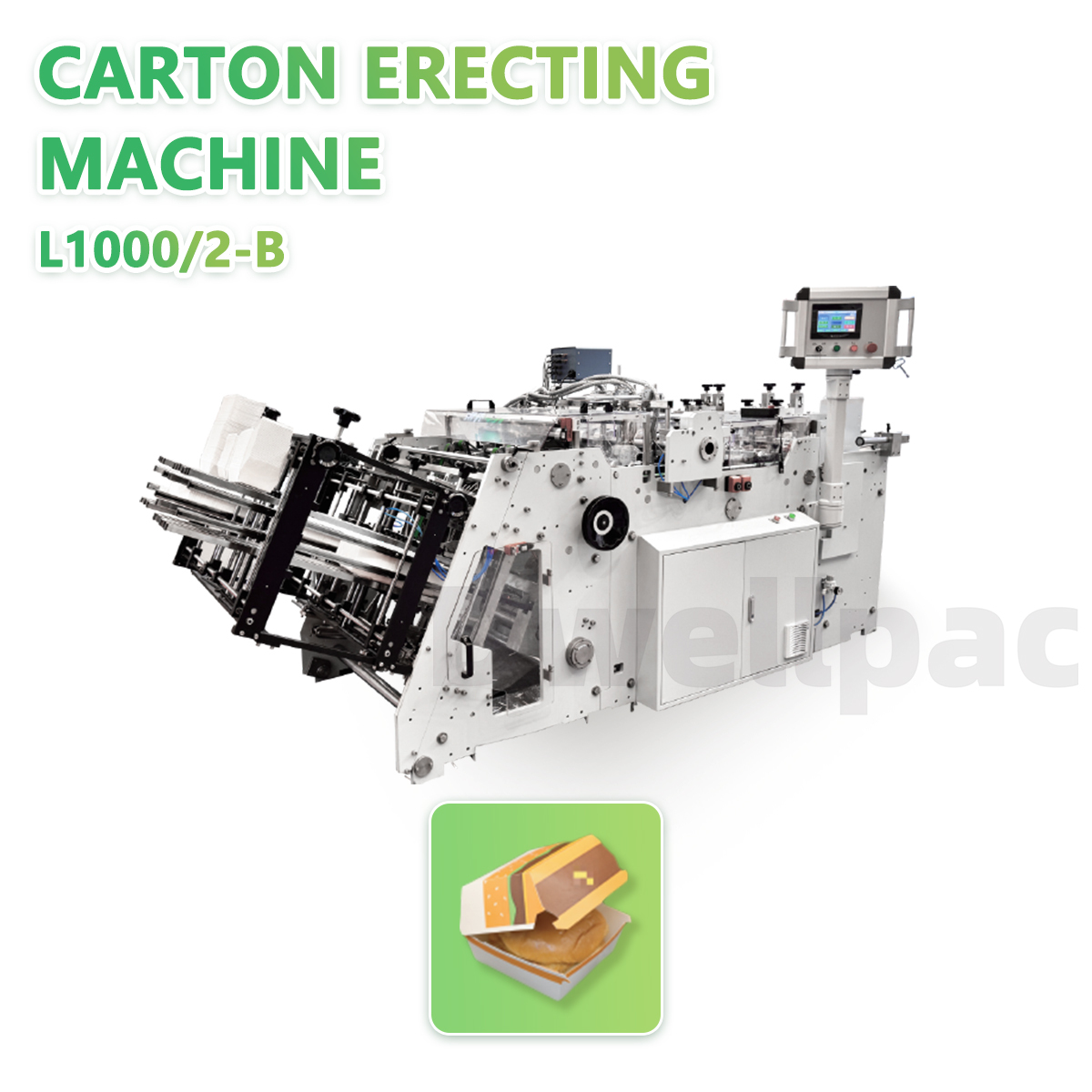

L1000/2-B
Produce different boxes on the 2 lanes at the same time.
L1000/2-C
Mechanical device to control the punching head.
Packaging Information
L1000/2-A
3000x1550x1630mm
Net Wt.
1800kg
Gross Wt.
2200kg
1710x700x960mm
Net Wt.
350kg
Gross Wt.
450kg
L1000/2-B
3000x1550x1630mm
Net Wt.
1800kg
Gross Wt.
2200kg
1710x700x960mm
Net Wt.
350kg
Gross Wt.
450kg
L1000/2-C
3000x1550x1630mm
Net Wt.
1800kg
Gross Wt.
2200kg
1710x700x960mm
Net Wt.
350kg
Gross Wt.
450kg
