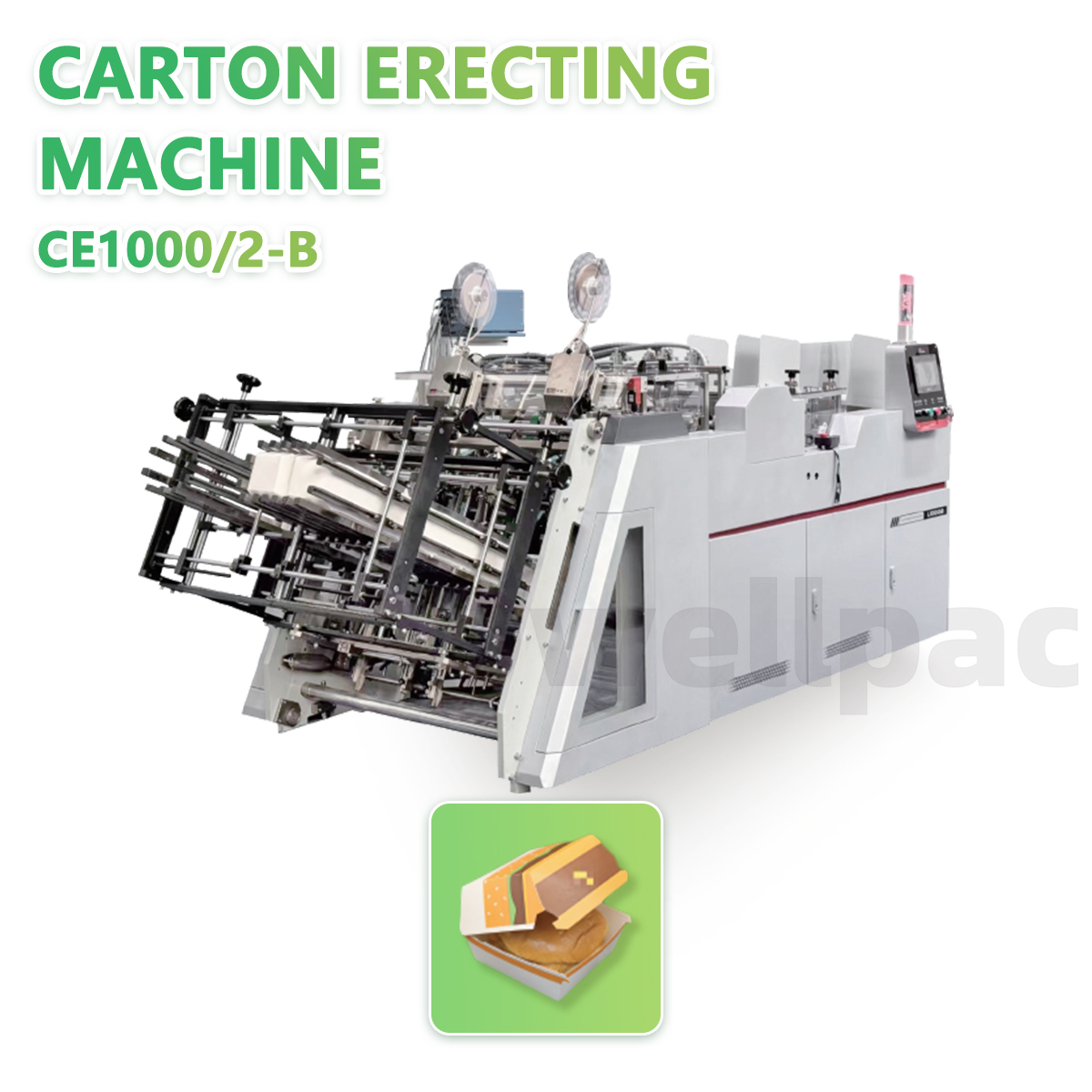

The CE1000/2-B is a CE-certified, high-capacity dual-lane carton erecting machine, designed to maximize throughput in automated packaging lines. Operating at speeds up to 600 cartons per minute, it efficiently sets up a wide range of box sizes from paperboard (200-600gsm) and corrugated board. Its key advantage is the ability to produce different box styles simultaneously on its two lanes, offering unmatched flexibility for mixed-order production. This makes it an ideal, high-performance solution for businesses seeking to significantly boost efficiency and handle diverse packaging needs with one reliable system.
Double Lanes Dayuan Carton Erecting Machine is designed and manufactured according to high standards, stable, efficient, clean, sanitary, cost saving and environmentally friendly.lt is the leading model in China and has achieved CE certification. The servo motor can be placed vertically to save space.
Differences Between L1000/2-A,B,C or CE1000/2-B
L1000/2-A
Produce same boxes on the 2 lanes at the same time.
L1000/2-B
Produce different boxes on the 2 lanes at the same time.
L1000/2-C
Mechanical device to control the punching head.
CE1000/2-B
Produce different boxes on the 2 lanes at the same time.
Carton Erecting Machine Double Lanes
Blank Length
Blank Width
Side Flaps
Slide Flaps + Lid
Conicity
L
B
H
H1
H2
5~40°
100~450mm
100~450mm
15~230mm
50~230mm
260mm
L1350/2-Ais suitable for blank width up to 620mm. ※Note: The height above 230mm needs to be customized, above H2, 260mm
Specification
Type
L1000/2-A,L1350/2-A
CE1000/2-B L1000/2-B
L1000/2-C
Voltage
380V/50Hz
Total Power
8kW
11KW/5KW
Air Pressure
Dry and clean air 0.6MPa
Materials
Paper board 200~ 600gsm (L1000/2-A is 150~ 400gsm); Corrugated board paper with thickness ≤ 1.5mm.
Covering Area
6000x2800mm
Max Speed
400pcs/min
600pcs/min
400pcs/min
※The forming speed of hamburger boxes: 100 -120 pcs/min.
Packaging Information
L1000/2-A
3000x1550x1630mm
Net Wt.
1800kg
Gross Wt.
2200kg
1710x700x960mm
Net Wt.
350kg
Gross Wt.
450kg
L1000/2-B
3000x1550x1630mm
Net Wt.
1800kg
Gross Wt.
2200kg
1710x700x960mm
Net Wt.
350kg
Gross Wt.
450kg
L1000/2-C
3000x1550x1630mm
Net Wt.
1800kg
Gross Wt.
2200kg
1710x700x960mm
Net Wt.
350kg
Gross Wt.
450kg
CE1000/2-B
3010x1620x1630mm
Net Wt.
1900kg
Gross Wt.
2350kg
1710xx780x960mm
Net Wt.
350kg
Gross Wt.
450kg
