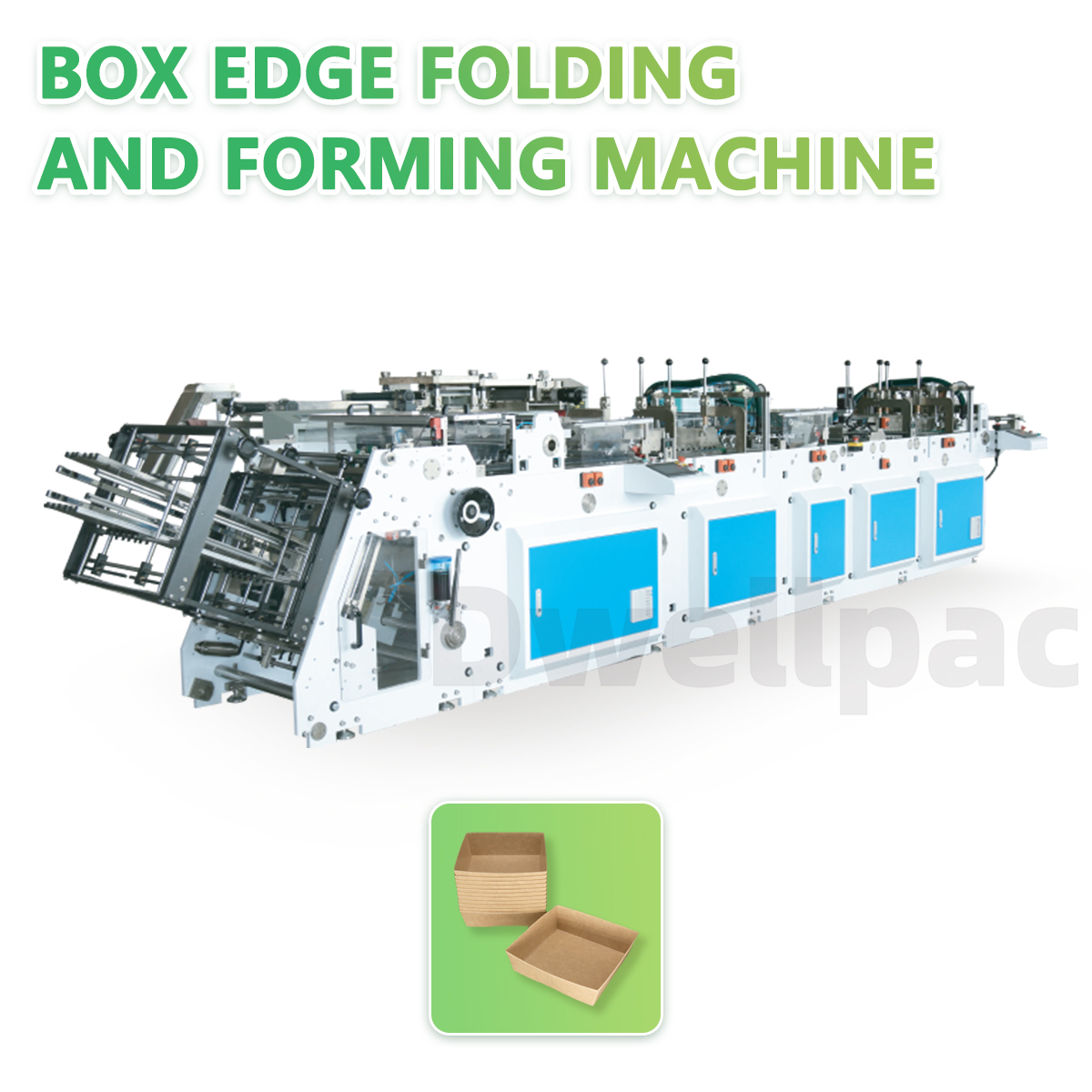

LS800 Series High-Speed Box Edge Folding and Forming Machine
The LS800 series is a versatile CE-certified box edge folding and forming machine, designed to produce rigid and durable cartons with folded edges—or standard cartons without—for applications like sandwich and pastry boxes. Operating at speeds up to 180 pieces per minute, it efficiently processes paperboard (200-600 gsm) and corrugated board. This machine strengthens packaging by forming high-quality folded edges, solving the need for premium, damage-resistant cartons while maintaining high production efficiency.

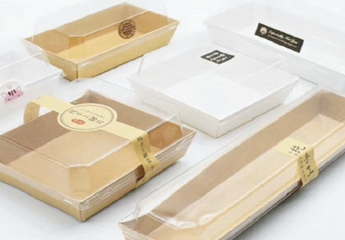

LS800, LS1000/2-A, LD800 Box Edge Folding and Forming Machine is designed and manufactured in accordance with high standards. Our products have achieved CE certification and have been sold to many countries in the world. This machine produces high stiffness, strong and durable cartons with high quality and efficiency, and can also produce ordinary (without edge folding) cartons, suitable for sandwich boxes, pastry boxes. etc.
Main Configuration
1. Hot-melt glue system 2. Cold glue system 3. Edge folding system 4. Forming unit 5. Mould lset
Box Edge Folding and Forming Machine LS800,LS1000/2-A,LD800
Type (Fold 2 Sides)
LS800
LS1000/2-A
Blank Length A
200~500mm
Blank Width B
200~680mm
200~350mm
Box Height C
≤ 50mm
Conicity
5~40°
Type (Fold 4 Sides)

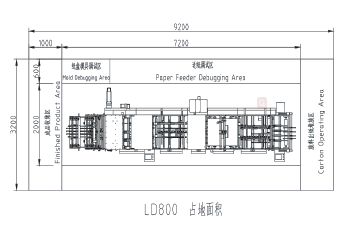

LD800
Blank Length A
200~450mm
Blank Width B
200~450mm
Box Height C
≤ 50mm
Conicity
5~40°
Specification
Voltage
380V/50Hz
Power
17kW
Max Speed
180pcs/min
Air Pressure
Dry and clean air 0.6MPa
Material
Paper board of 200~600 gsm; Corrugated board paper with thickness ≤ 1.5mm.
